ART 7W/G2+ MONITOR

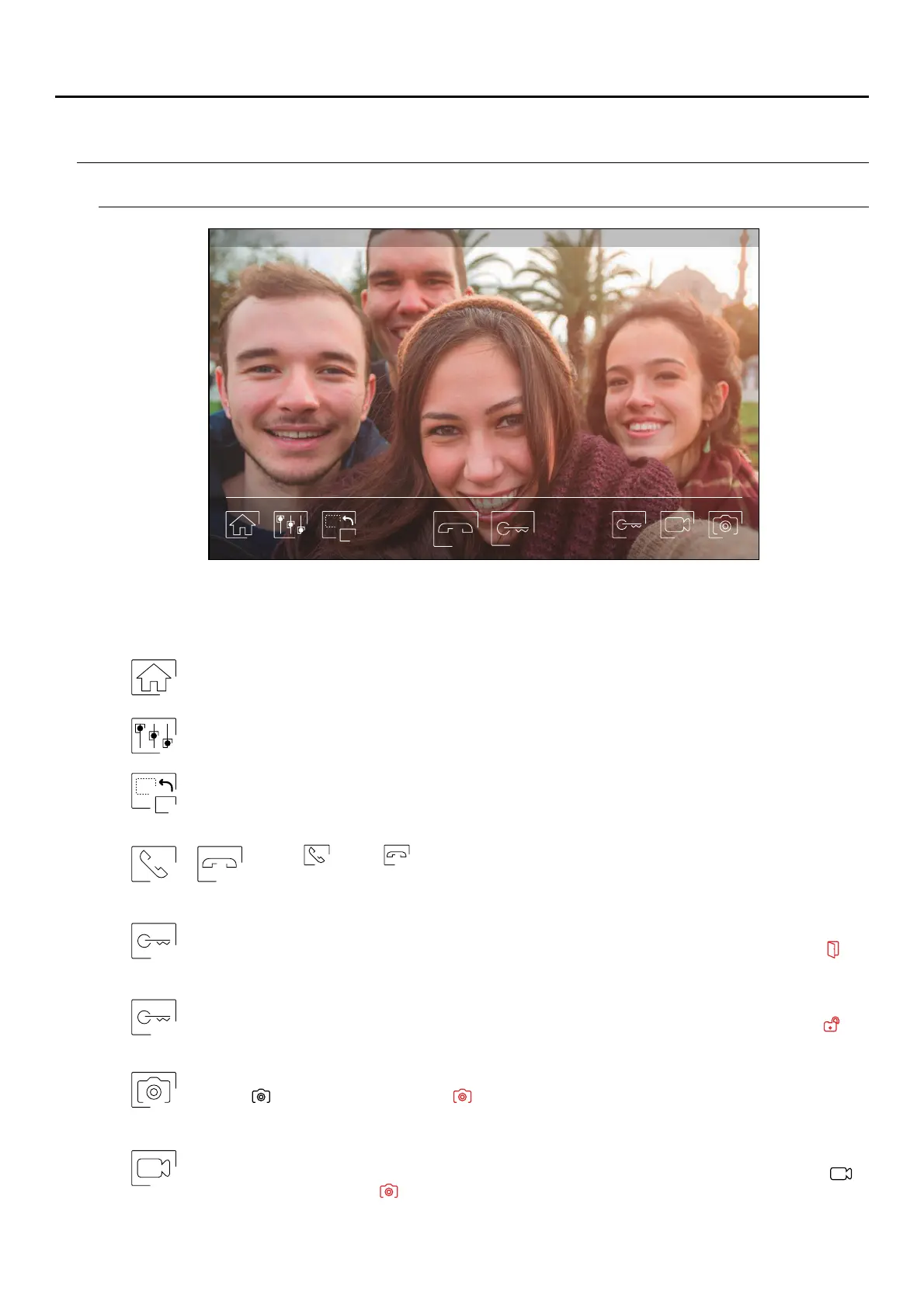

Communication screen
This screen is displayed during a communication process. In the top centre of the screen, the date and time are
shown and, on the right, the source of the image is displayed (door panel 1, door panel 2, camera 1 or camera 2).
End audio communication with the door panel displayed and then show the main menu.
17-12-2019 Door panel 111:17:10
1
2
Access the image and communication settings menu.
Start or end audio communication with the door panel displayed. Communication
has a maximum duration of 90 seconds. Once communication has ended, the screen will
turn off.
Change the source of the image as long as the system has more than one door panel or has an
external camera connected and display has been activated (see p. 40). It is possible to make the
change during display, call and communication processes.
Activate the lock release (or device connected to the CV output of the door panel) for 3 seconds
(factory setting, programmable by the installer; see pp. 39-41). During activation, indicator will
illuminate.
Activate the lock release (or device connected to the relay output of the door panel) for 3 seconds
(factory setting, programmable by the installer; see pp. 39-41). During activation, indicator will
illuminate.
If you have a MicroSD card inserted, it starts recording a 15-second video within a few seconds of
receiving the call. Otherwise, it will take a photograph. In the top left of the screen, icon is
displayed and indicator will illuminate.
By pressing, it records a video. (See p. 14 to set the recording mode).
1
2
By pressing, it takes a photograph. (See p. 14 to set the recording mode).
A few seconds after receiving a call, it automatically takes a photograph. In the top left of the screen,
icon is displayed and indicator will illuminate.
Important: New settings menu with ART 7W G2+ monitor with V.04 and later.
