SOUL S5110/ART 7W VIDEO DOOR ENTRY SYSTEM KIT
9

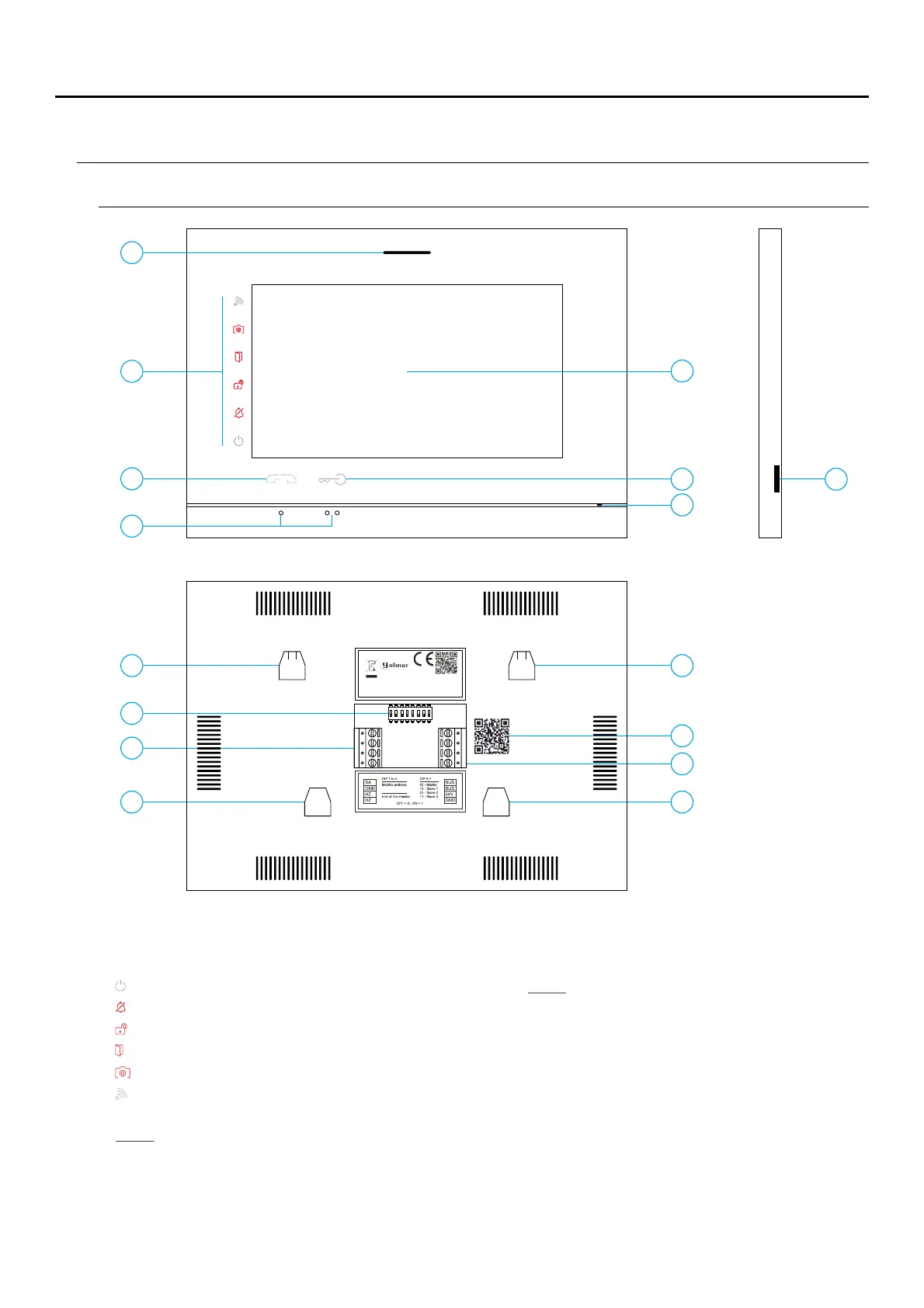

ART 7W/G2+ MONITOR
Description
Note: ART 7W/G2+ monitor 'V.01 + No. 6539 and
V.02' or later: For the visually impaired, by default
deactivated (see p. 40 'special codes').
Do not disturb.
Door opening.
B. Notification icons:
New image/video.
Power on indicator.
A. Speaker.
Wi-Fi transfer activated.
C. Hidden start/stop communication button:
Auxiliary relay activated.
D. Raised dots for the visually impaired.
E. Touch screen.
K. Installation terminals.
I. Wall mounting connector fixing (x4).
J. Configuration switches.
Note: ART 7W/G2+ monitor 'V.01 + No. 6539 and
V.02' or later: For the visually impaired, by default
disabled (see p. 40 'special codes').
G. Microphone.
F. Hidden door opening button.
H. MicroSD card slot (not included).
Type: MicroSD Class 10 from 4Gb to 128Gb.
L. UID code label of the monitor.
A
E
B
C
D
F
G
H
I
J
K
L
I
I
I
K
SA
GND
HZ
HZ
BUS
BUS
24V
GND
ON
1 2 3 4 5 6 7
8
UID: mnvx8d8uskpv
DIP 8
12210710 V0Product Version: 4
MONITOR 7” WIFI ART 7W/G2+
GOLMAR S.A.
C/ Silici, 13
08940 - SPAIN
WARNING
TO PREVENT FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS
DEVICE TO RAIN OR MOISTURE
TO PREVENT ELECTRIC SHOCK,
CAUTION
DO NOT REMOVE COVER. NO
USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
MADE IN CHINA
