SOUL S5110/ART 7W VIDEO DOOR ENTRY SYSTEM KIT
37
WIRING DIAGRAMS
Connection of a lock release
Connection of an auxiliary device at the relay output

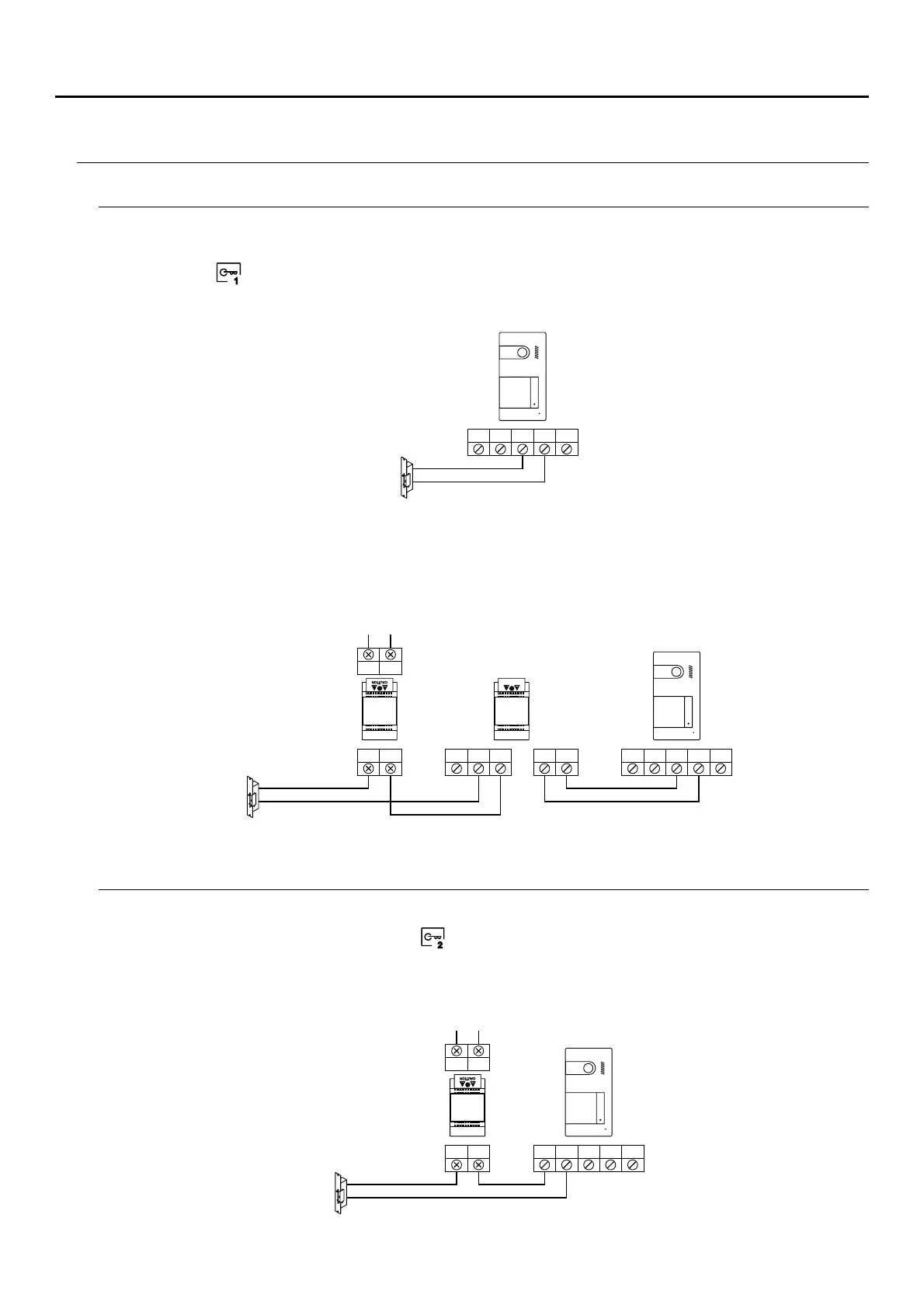

The drawing shows the connection of a 12Vdc lock release, with a maximum consumption of 270mA. The use of
Golmar CV-14/DC, CV-24/DC, CV-14P/UNI or CV-24P/UNI models is recommended. Activation is carried out
through icon . The activation time is 3 seconds with the possibility of setting it to between 0.5 and 10 seconds
(see pp. 39-41).
The drawing, by way of example, shows the connection of a second AC lock release. The relay can switch 6A/24V
loads. Activation is carried out through icon . The activation time is 3 seconds with the possibility of setting it
to between 0.5 and 10 seconds (see pp. 39-41).
If the lock release to be used is alternating current, use a relay and transformer suitable for the consumption, as
well as the varistor supplied. The example shows a Golmar SAR-12/24 relay and a TF-104 transformer
(12Vac/1.5A).
CV-BUS CV+ AP+BUS
CV-BUS CV+ AP+BUSININCNC NA
PRIPRI
Mains
100~240V ca
SECSEC
GNDC CCTV AP-NA
PRIPRI
Mains
100~240V ca
SECSEC
1
2
SOUL PANEL/1
SOUL PANEL/1
SOUL PANEL/1
SAR-12/24
TF-104
