SOUL S5110/ART 7W VIDEO DOOR ENTRY SYSTEM KIT
4
FA-G2+ POWER SUPPLY

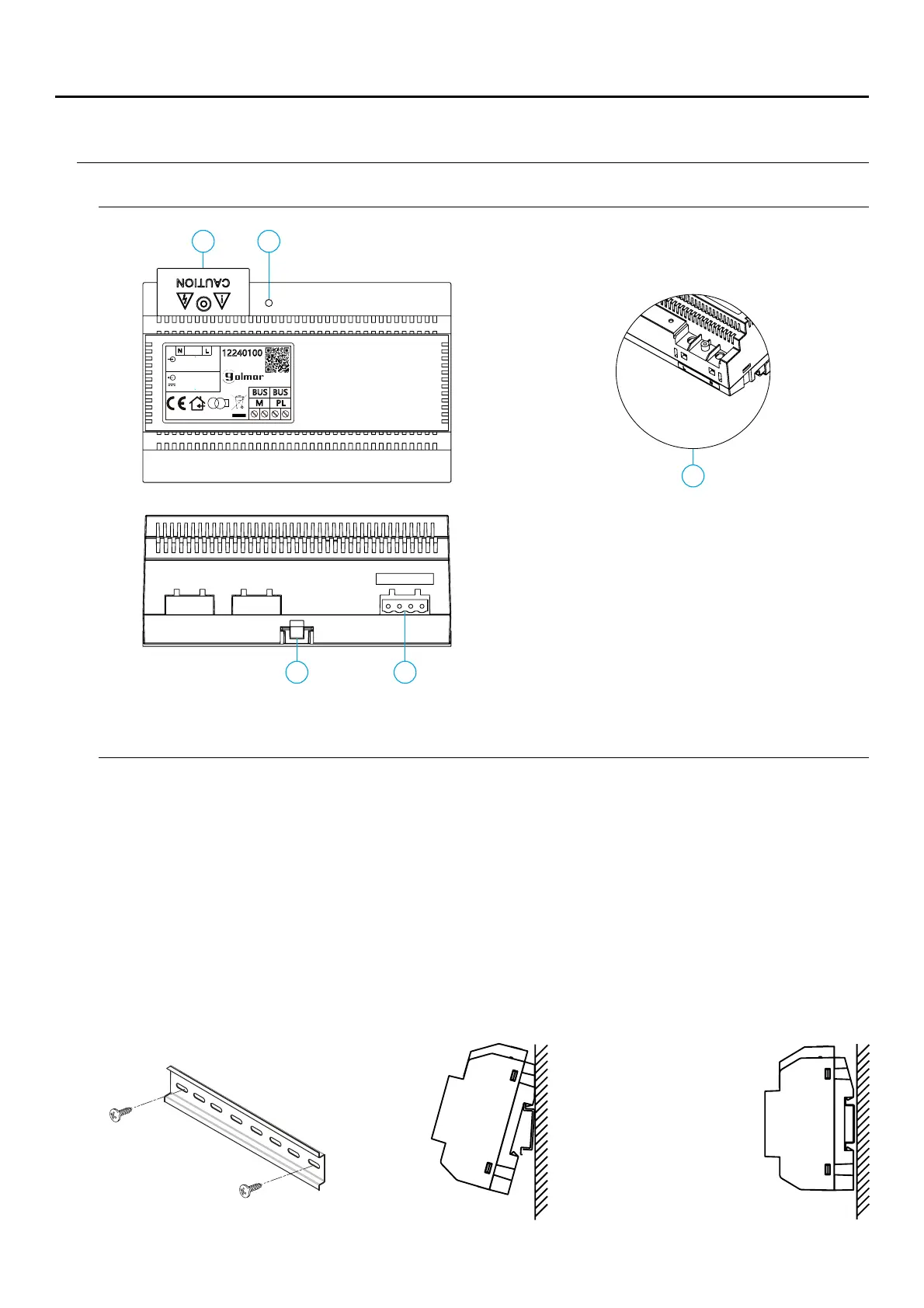

Description
B
D. Fastening tab on DIN rail.
A. On/off indicator light.
B. Protective cover for the current input.
C. Detail of current input terminals without protective
cover.
E. Installation terminals.
A
ED
BUS(M) BUS PL( )
Installation
To prevent electric shock, do not remove the protective cover without first disconnecting the power supply. Replace
it once all connections have been made.
The fitting and handling of the power supply must be carried out by authorised personnel in the absence of
electrical current.
Install the power supply in a dry, protected and ventilated location. Make sure that the vents are not obstructed.
Use a DIN 46277 rail for fastening (8 elements).
Note that current regulations stipulate that the power supply must be protected by a circuit breaker.
Connect the wires to the installation terminals following the instructions in the diagrams.
C
12240100
OUTPUT
N
L
GOLMAR S.A. C/ Silici, 13 08940 - SPAIN
MADE IN CHINA
BUS 30V 2V 1.2A±
INPUT ~100-240V
0.8A 50-60Hz
FA-G2+
PL
BUS BUS
