golmar FA-G2+ User Manual

SOUL S5110/ART 7W VIDEO DOOR ENTRY SYSTEM KIT
34
WIRING DIAGRAMS

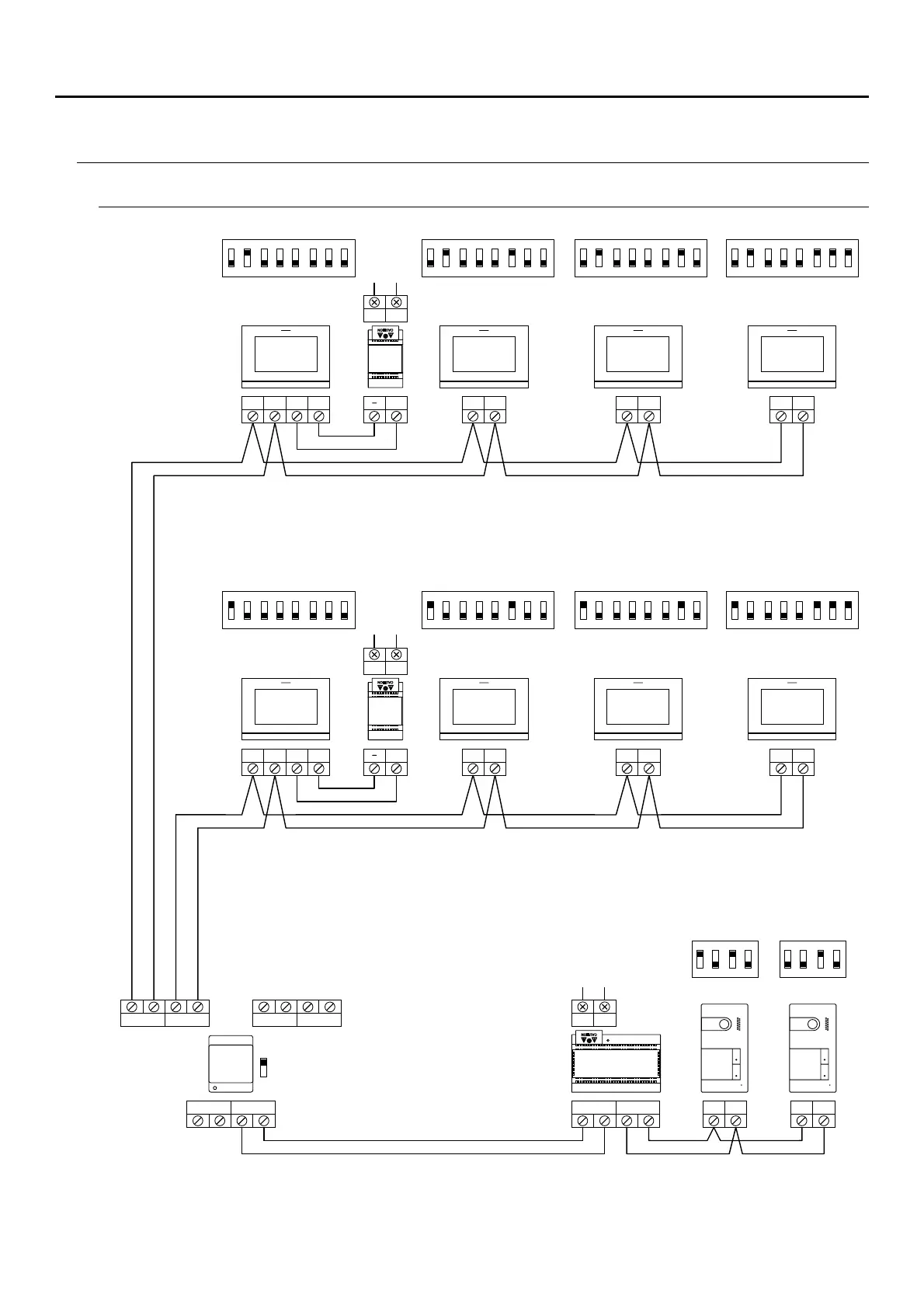

Two apartments with two access panels and up to four monitors in daisy chain connected
BUS BUS BUS BUSBUS (M) BUS PL( )
LN
Mains
100~240V ca
BUS IN BUS IN
BUS out A BUS out B BUS out C BUS out D
Mains
100~240V ca
Mains
100~240V ca
*
FA-G2+
APARTMENT 2
SLAVE 3MONITOR
APARTMENT 2
SLAVE 1MONITOR
APARTMENT 2
SLAVE 2MONITOR
APARTMENT 2
MASTER MONITOR
APARTMENT 1
SLAVE 3MONITOR
APARTMENT 1
SLAVE 1MONITOR
APARTMENT 1
SLAVE 2MONITOR
APARTMENT 1
MASTER MONITOR
PANEL 2
SOUL/2
PANEL 1
SOUL/2
ART 7 /G2+W ART 7 /G2+W ART 7 /G2+W ART 7 /G2+W
ART 7 /G2+W ART 7 /G2+W ART 7 /G2+W ART 7 /G2+W
D4L-G2+
ON
ON
1 2 3 4
ON
1 2 3 4
BUS
BUS
BUS
BUS
BUS
BUS
BUS
BUS
BUS
BUS
BUS
BUS
BUS BUS
BUS BUS
24V
24V
GND
GND
LN
LN
+
+
( )
*
( )
*
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
( )1 Important: Only the master monitor can activate Wi-Fi transmission.
( )1
( )1
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
( ) FA-ART 7W power supply.
