Google Pixel 6 Pro - Connectors Location

Google 2021 | Confidential and Proprietary | Do not distribute 145
Troubleshooting

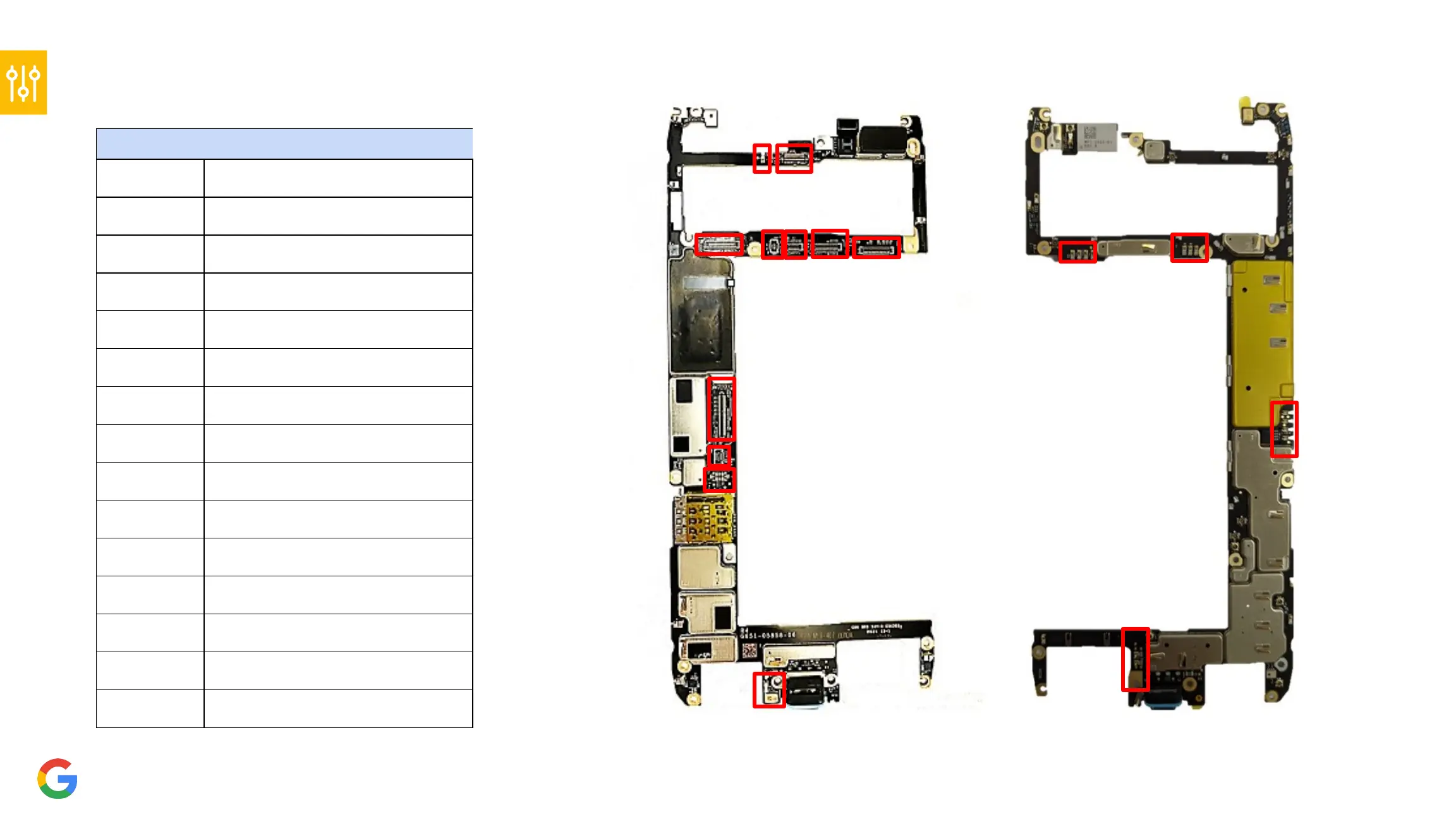

Connectors Location
Location & Description
A
Top SPK Pad
B
Front camera connector
C
Tele camera connector
D
UWB connector
E
Flam connector
F
UW camera connector
G
Rear camera connector
H
Display connector
I
Battery connector
J
Vibrator Pad
K
Button connector
L
Flash LED connector
M
Bottom SPK Pad
N
WLC&NFC Pad
O
mmWave connector
A B
C
D E F
H
G
O
I
J
K
L
N
M
