Google Pixel 6 Pro - Prepare Rear Camera

Google 2021 | Confidential and Proprietary | Do not distribute 91
Rear camera

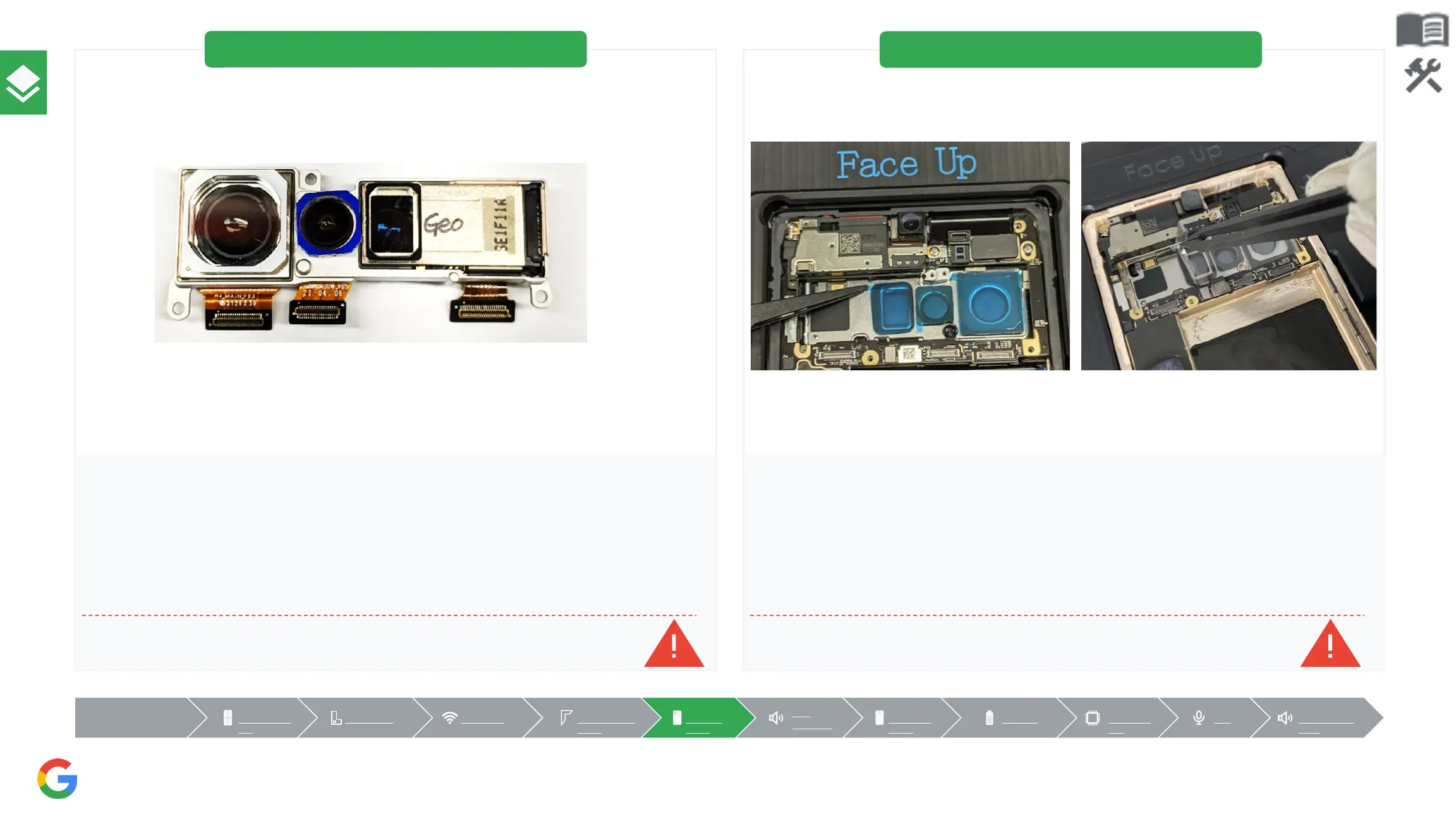

01. Prepare rear camera
02. Remove liner
●
Remove the 3 protective caps from the Rear camera. Blow
it by ionizing air Fan.
Part: G852-02351-01 (RCAM Cap), G852-02352-01 (RCAM UW Cap)
G852-02356-01 (RCAM Tele Cap)
●
Remove the 3 Rear camera liners from the Enclosure with
ESD tweezers. (If reusing the Enclosure, remove the one liner.)
Part: G806-06299-01 (Camera liner)
Ensure that the environment is clean for this process.
Ensure that the environment is clean for this process.
