Google Pixel 6 Pro - Fasten MID-Frame

Google 2021 | Confidential and Proprietary | Do not distribute 71
Mid-frame

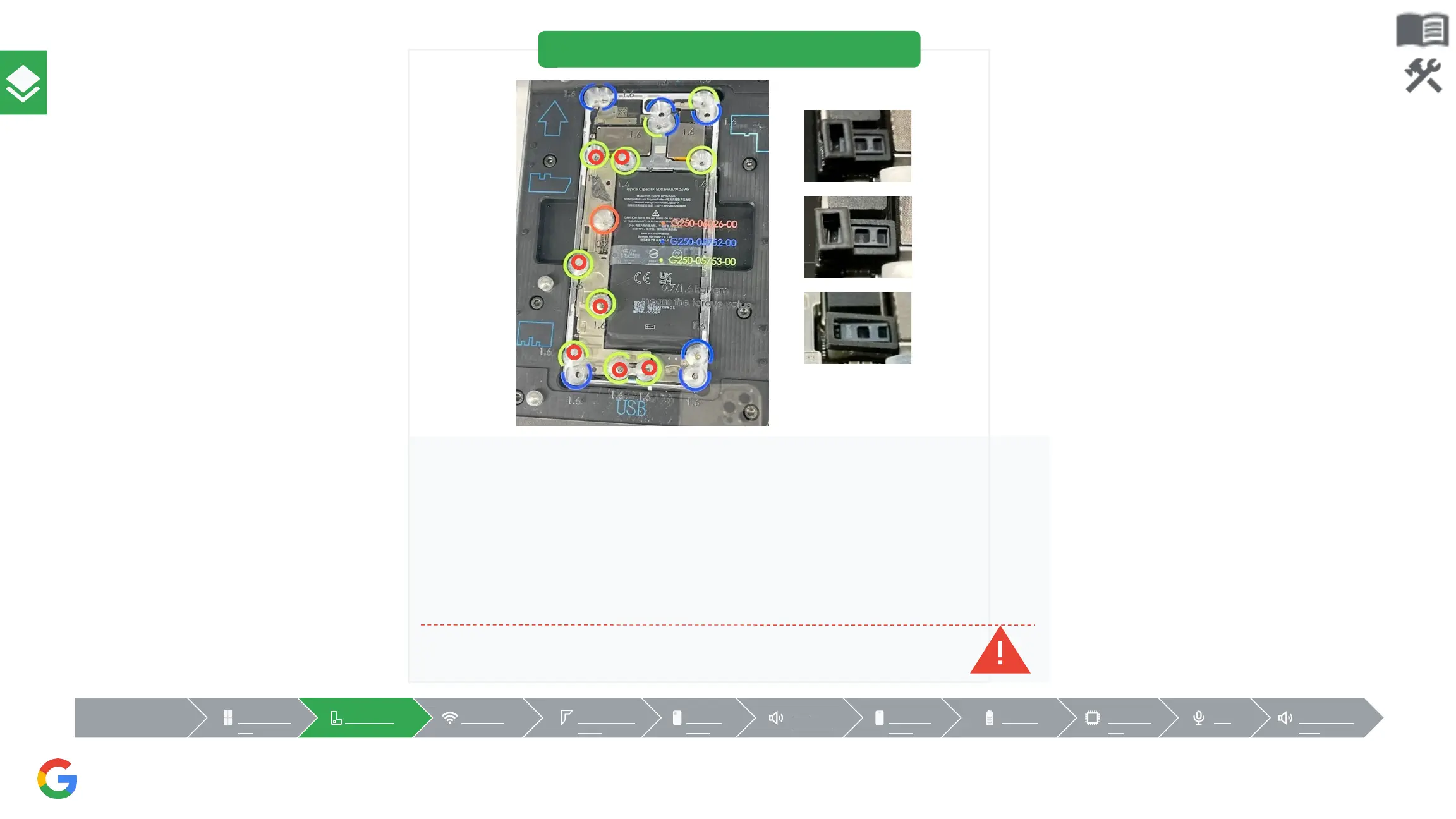

05. Fasten Mid-frame
●
Place the R4 Screw cover on the R4-Assy-Enclosure
Holder & Graphite Align.
●
Tighten the 7 Screws with a Torx Plus 3IP screwdriver, take
out the R4 Screw Cover.
Torque force ： 1.6 ± 0.03kgf-cm
Part: G250-05753-00 (Screw)
Check P-sensor foam must be posted flat.
Bottom spe
aker
MicLogic bo
ard
BatteryFront ca
mera
Top
Speaker
Rear ca
mera
Upper mid-f
rame
mmWaveMid-frameGraphic sh
eet
Display
NG
NG
OK
