Gorgy Timing LEDI Series - Ceiling Mounting with Bracket for LEDI & LEDICA Indoor Clock Double Face

59
MDE-LEDI-1099V3.4

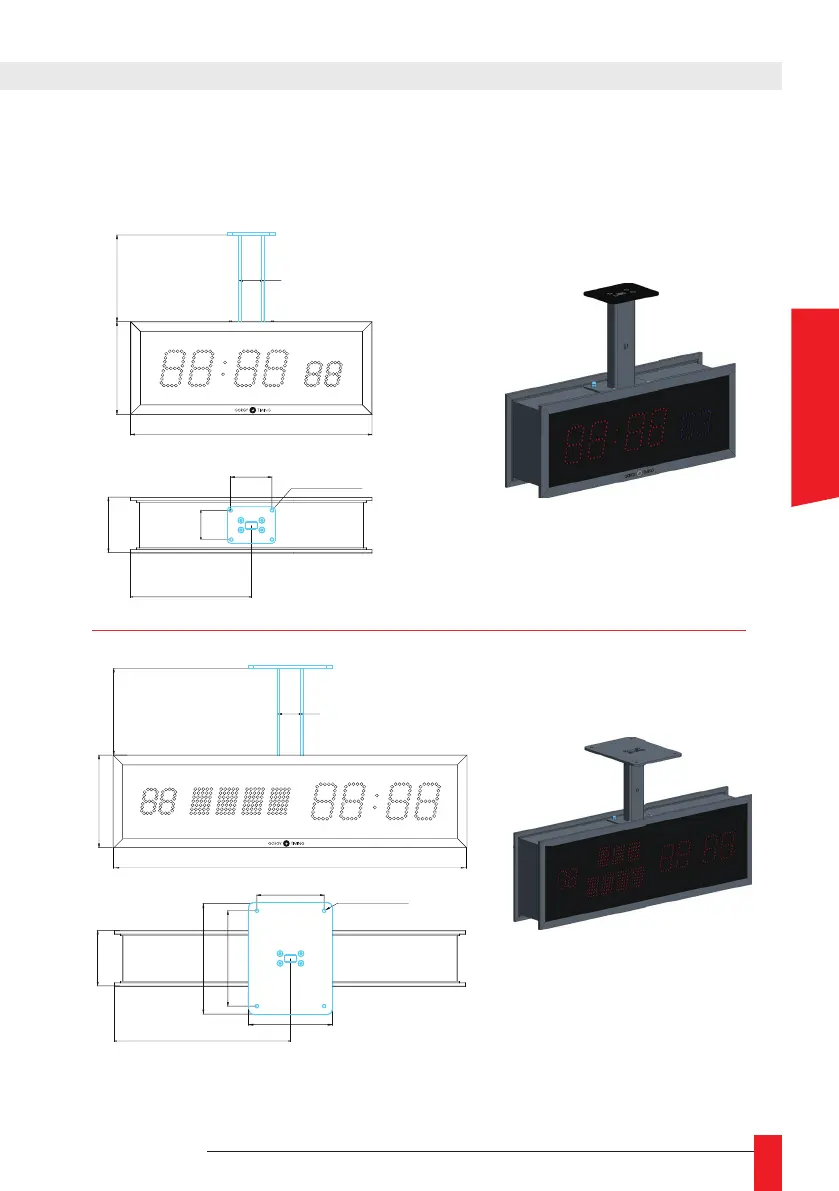

1.3.3. Ceiling Mounting with bracket for LEDI
®
& LEDICA
®
Indoor clock double face
A*/2
56
4 vis Ø 6 mm
75
A*
A*
150
B
B
45 x 25
150
45 x 25
25
99
A
B/2
25
45
155
4 vis Ø 6 mm
120
B
170
99
A*/2
170
200
4 vis Ø 6 mm
120
99
150
A*= 0 à 500 mm (inclu)
A*: see table in chapter 1.6
500 < A*> 1000 mm
ENGLISH
