MDE-LEDI-1099V3.4
3. CONNECTIONS
☛ Before starting to connect the equipment,secure the bracket.
☛ Note: if the two points CODE are not connected, the clock will
automatically run on standalone mode (except for impulse receiver clocks).
3.1. LEDI
®
MODEL: MAINS CURRENT/TIME CODE/DISPLAY
► Connect the power supply.
► After connection, turn the clock operation by ipping the switch on the back of the clock
to the ON position (down).

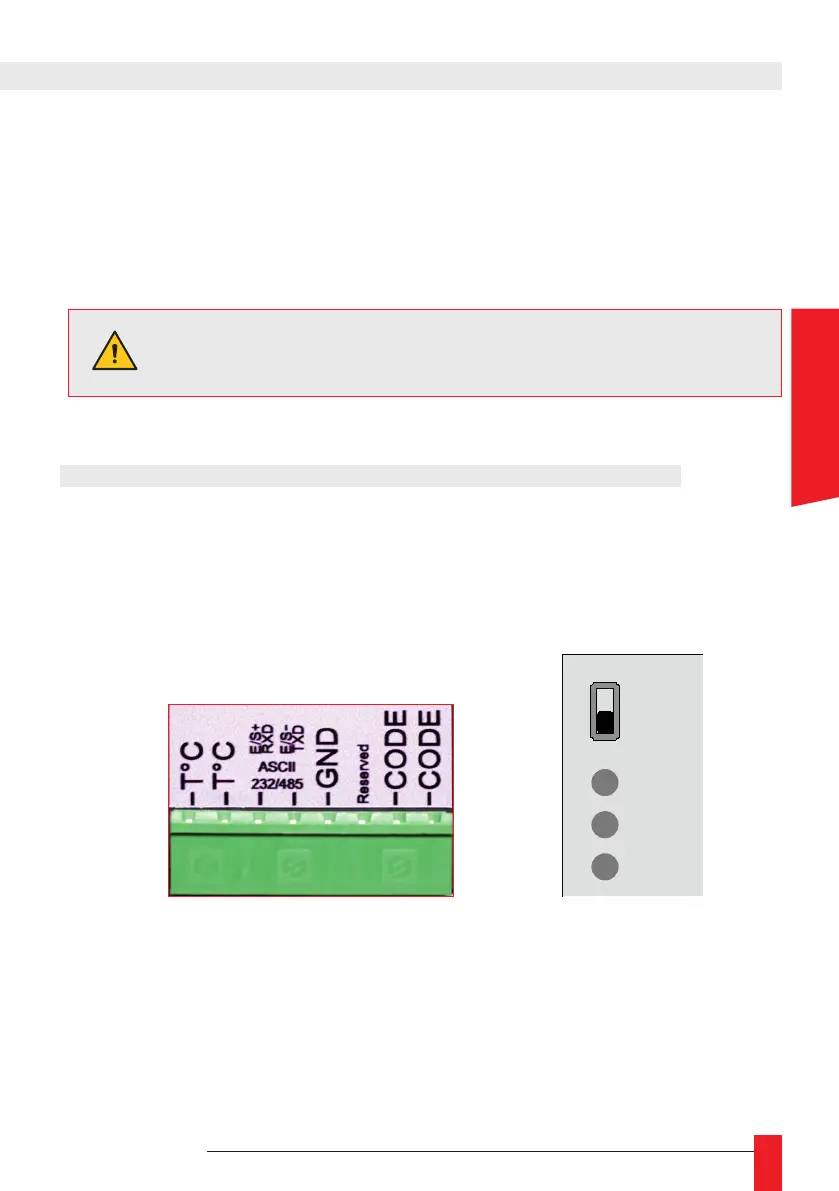

3.1.1. Pulse receiver and AFNOR NFS 87500 time code receiver version
► Connect pulse or AFNOR NFS 87500 time code signal on the inputs CODE of plug-
in terminal (no polarity).
In case of mains cut, the clock display will be off, however time
keeping is ensured by built-in battery.
OFF
ON
-
+
PROG
ENGLISH
