5.3 Data Entry

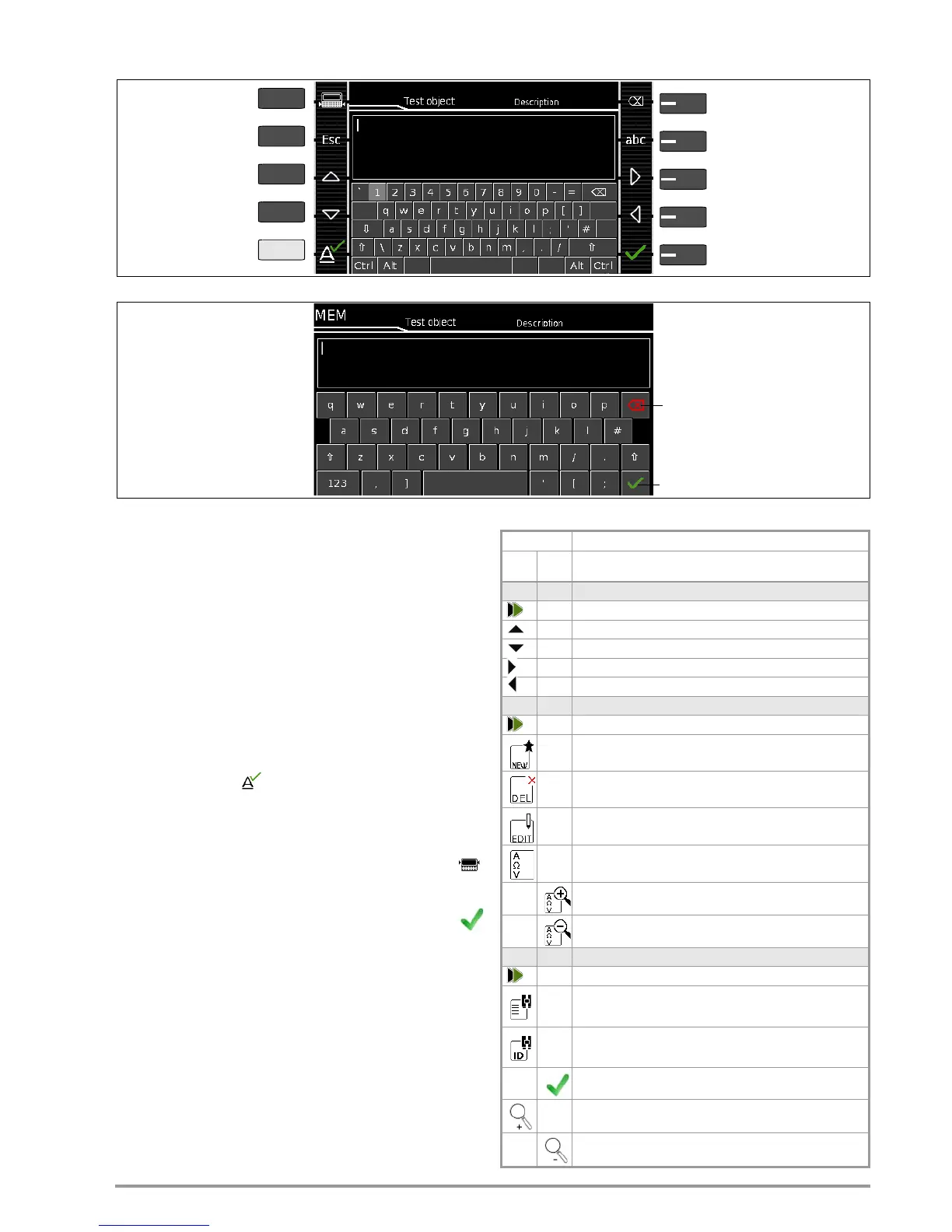

Overview of Keyboard Entries Via the Softkeys with the SECUTEST BASE(10)
Overview of Keyboard Entries via the Touch-Screen Keyboard with the SECUTEST PRO (feature E01)
5.3.1 Keyboard Entries via Softkeys or External Keyboard
After selecting ID or any other object parameter, a keyboard is dis-
played which allows entry of alphanumeric characters via the fixed
function keys and the softkeys. Alternatively, entries can also be
made with the help of a USB keyboard or a barcode scanner
which is connected to the instrument.
The keyboard layout can be matched to the language in SETUP.
SETUP 2/3 > Culture > Keyboard Layout (for alphanumeric entries)
Procedure (example: entering a DUT designation):
1 Switch the keyboard to uppercase, lowercase or special char-
acters with the abc key (Abc, ABC, Symb).
2 Select the desired alphanumeric character or a line break with
the scroll keys (left, right, up and down).
The selection cursor can be accelerated by pressing and
holding the respective scroll key.
3 After pressing the key, the respective character appears in
the display field.
4 Repeat steps 1 through 3 until the complete designation is
shown in the display field.
5 The designation in the display field can be changed subse-
quently after hiding the bottom keyboard by pressing the
key. The cursor position can then be changed in order to
delete individual characters.
6 After pressing the green checkmark, the selected char-
acter string is saved.
5.3.2 Data Entry via Touch-Screen Keyboard
(only with
SECUTEST PRO or instrument with feature E01)
The touch-screen keyboard permits convenient entry of data and
comments, selection of parameters and direct parameter selec-
tion, and menu-driven operation is still possible via the softkeys as
an alternative.
Meaning of Symbols in the User Interface – Database Management
Symbol Meaning
Main
Level
Sub-
Level
Memory menu, page 1 of 3
Change display to menu selection
UP key: scroll up
DOWN key: scroll down
RIGHT key: open tree
LEFT key: close tree
Memory menu, page 2 of 3
Change display to menu selection
Add a structure element
Delete selected structure element or measurement
Edit DUT: ID, designation or type
When selecting a measurement: display measured
values
Display details from the measurement results list
Hide details from the measurement results list
Memory menu, page 3 of 3
Change display to menu selection
Search for ID number or text > enter complete ID
number (ID) or text (complete word)
Search for ID number
> Enter complete ID number
Confirm search results
Display the structure designation
Hide the structure designation
To Next Page
