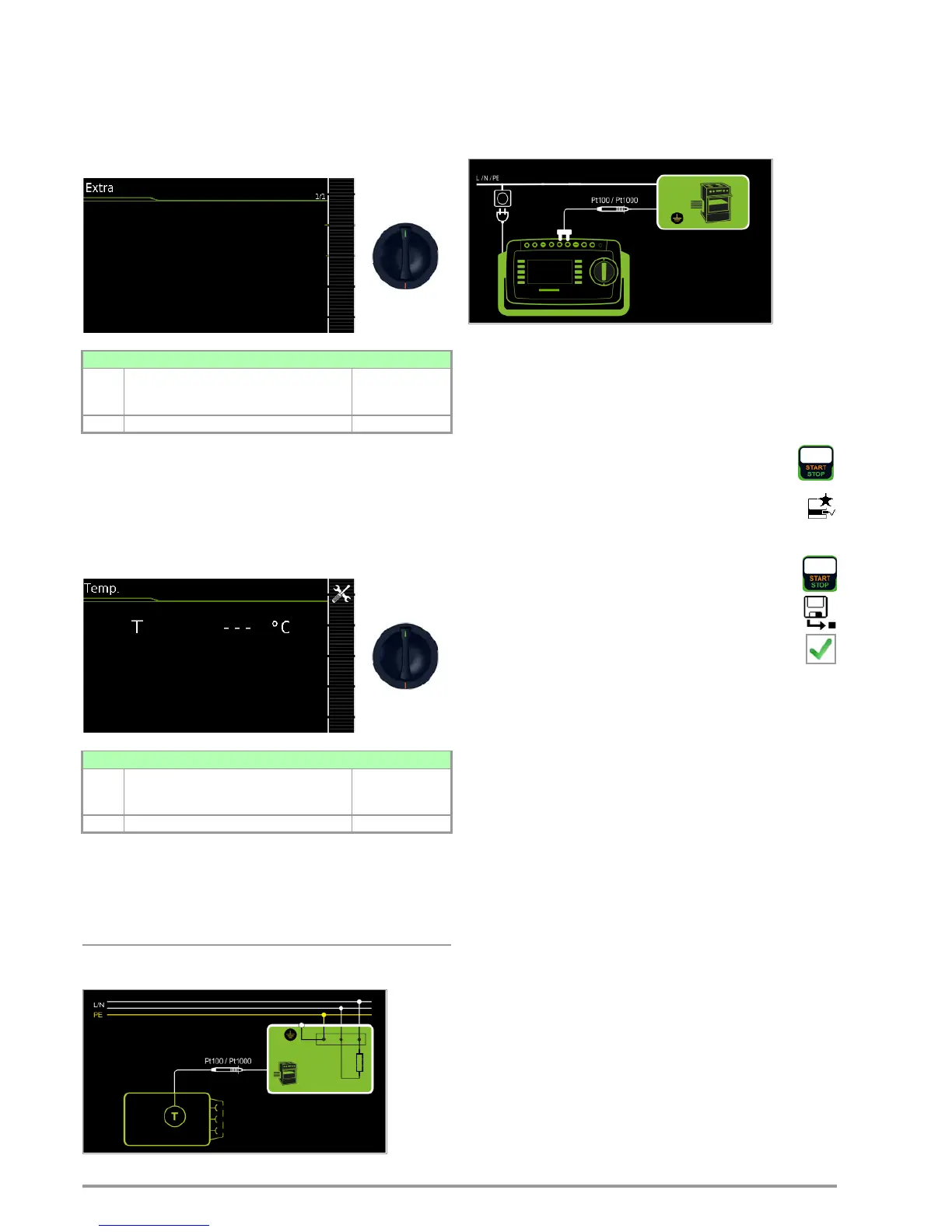

50 GMC-I Messtechnik GmbH
9 Special Functions – EXTRA
Depending on the device configuration, either the QR code for the
Internet link to the operating instructions or the measuring view for
the temperature measurement is displayed.
SECUTEST BASE(10)
QR code: Scanning the QR code allows you to download and read
the current operating instructions from www.gossen-
metrawatt.com, for example at a tablet PC.
SECUTEST PRO (feature I01)
In this case, the temperature measurement is assigned to the
rotary switch’s EXTRA position.
Temperature measurement functions with either a Pt100 or a
Pt1000 temperature sensor – the sensor type is automatically
detected internally.
Measurement with Temperature Sensor
Schematic Diagram
Wiring Diagram
Test Sequence with Temperature Sensor
➭ Set the rotary switch to the EXTRA position.
➭ Connect the temperature sensor’s plug to the V-COM sockets
at the test instrument.
➭ Contact the device under test.
➭ Start the test: press the START/STOP key.
➭ The measured values are displayed. The measured
value recording symbol shown at the right appears.
Each time this key is pressed, the currently displayed
measured value is saved to the buffer.
➭ Stop the test: press the START/STOP key.
The save symbol appears (floppy disk showing the
number of measured values stored to buffer memory)
and prompts you to save the measured values to an ID
number.
➭ Press the ESC key in order to discard the measured
values stored to buffer memory and acknowledge by
pressing the key shown at the right.
Single measurements, rotary switch level: green
Switch
Position
Measuring Functions Measurement
Type,
EXTRA None None
Single measurements, rotary switch level: green
Switch
Position
Measuring Functions Measurement
Type,
EXTRA Temperature V-COM
