GMC-I Messtechnik GmbH 53
10.2 Selecting and Configuring a Test Sequence

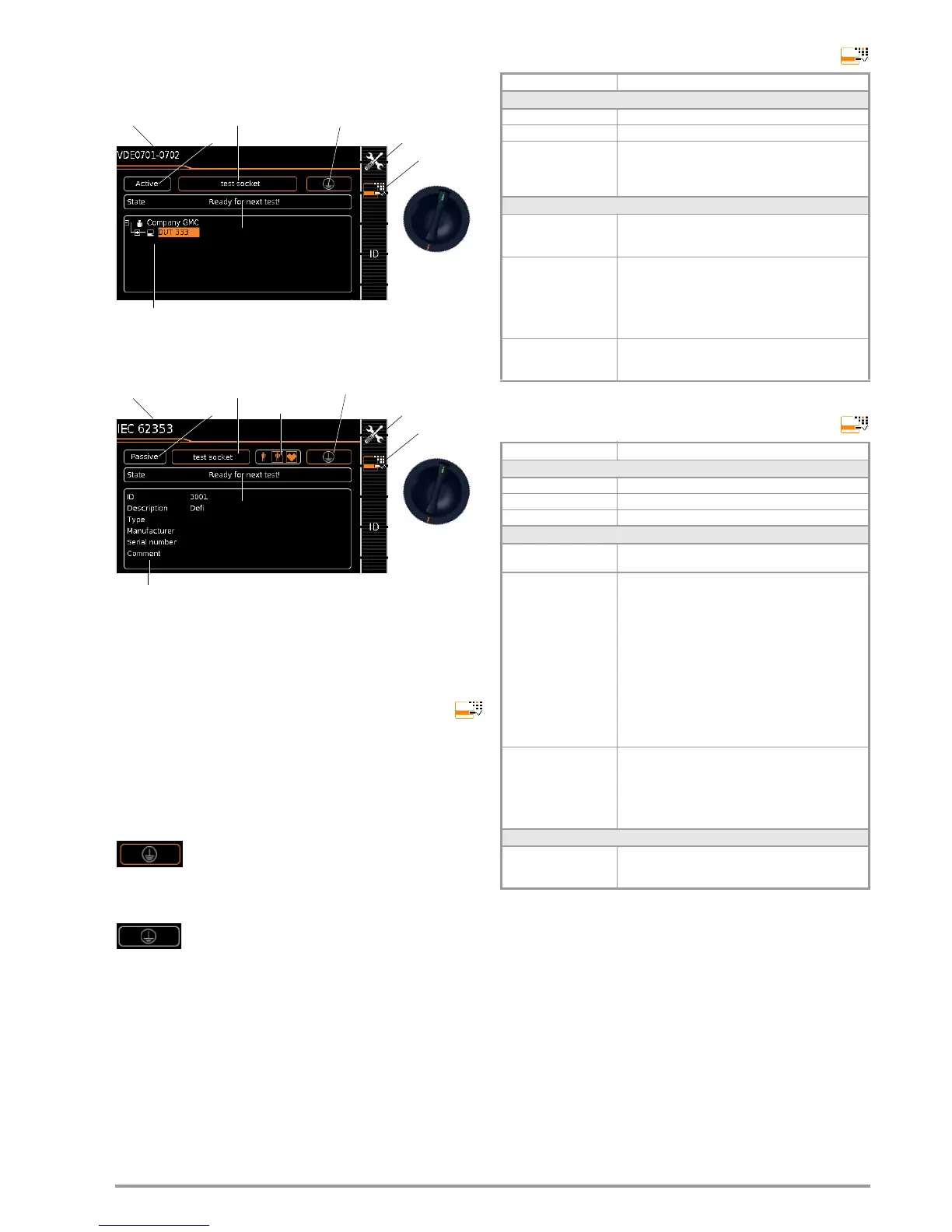

Sample: Initial Page of a Test Sequence – Tree View
Sample: Initial Page of a Test Sequence – Detail View and
Applied Part
* SETUP switch position:
Setup menu 1/3 > Auto. Measurements > 2/2 > Initial Window Style:
Tree or Detail View
Classification Parameter – Automatic Detection
If the settings for certain classification parameters are auto-
matically detected by the test instrument, this is indicated respec-
tively by an orange frame (as of firmware V1.3.0; here: test socket
connection type and protection class I). Descriptions of these
parameters are listed in the following tables relative to the respec-
tive switch positions.
Automatic recognition for safety class active
When connecting or disconnecting a DUT, the
safety class may be changed without request for
confirmation where necessary.
Automatic recognition for safety class active
The test instrument retains the selected safety class
setting when a DUT is connected or disconnected.
Classification Parameter – VDE 0701-0702
Switch Positions A1, A2, A3 (EDV), A8 (VLTG)
Classification Parameter – IEC 62353
Switch Positions A4 and A5
Parameter Setting Options / Meaning
1/2
Standard VDE 0701-0702
Protection class * Selection of PC1, PC2, PC3 or combinations
Connection type * A1: test socket/perm. con./adapter: AT16/32-DI/EL1/VL2E
A2: test socket/perm. con./adapter: AT16/32-DI/EL1/VL2E
A3: test socket/perm. con./adapter: AT16/32
A8: test socket/perm. con./adapter: EL1/VL2E/AT3-III E
2/2
Measurement type (MA) A1: passive
A2: active
A3: EDV (active)
Detected classification No auto-detection:
all classification parameters such as connection and protection
class must be entered manually.
Always accept:
All classification parameters activated under “Auto-detec-
tion of”
are detected automatically and accepted.
Auto-detection of
Any desired combinations for automatic detection of:
– Connection
– Protection class (PC)
Parameter Setting Options / Meaning
1/3
Standard IEC 62353
Protection class * Selection of PC1, PC2 or PC1+2
Connection type * Test socket/perm. con./adapter: AT16-DI, AT32-DI
2/3
Measurement type (MA) A4: passive
A5: active
Applied parts Applied parts: none, B, BF, CF or combinations
Type B (body): Devices of this type are suitable for both in-
ternal and external patient applications, except for use in di-
rect proximity to the heart.
The following protection classes are permissible:
I, II, III or devices with internal electrical power supply.
Type BF (body float): same as type B, but with type F insu-
lated applied parts.
Type CF (cardiac float): Devices of this type are suitable
for use directly at the heart. The applied part may not be
grounded.
The following protection classes are permissible:
I, II or devices with internal electrical power supply.
Detected classification No auto-detection:
All classification parameters such as connection and protection
class must be entered manually.
Always accept:
All classification parameters activated under “Auto-detec-
tion of”
are detected automatically and accepted.
3/3
Auto-detection of Any desired combinations for automatic detection of:
– Connection
– Protection class (PC)
