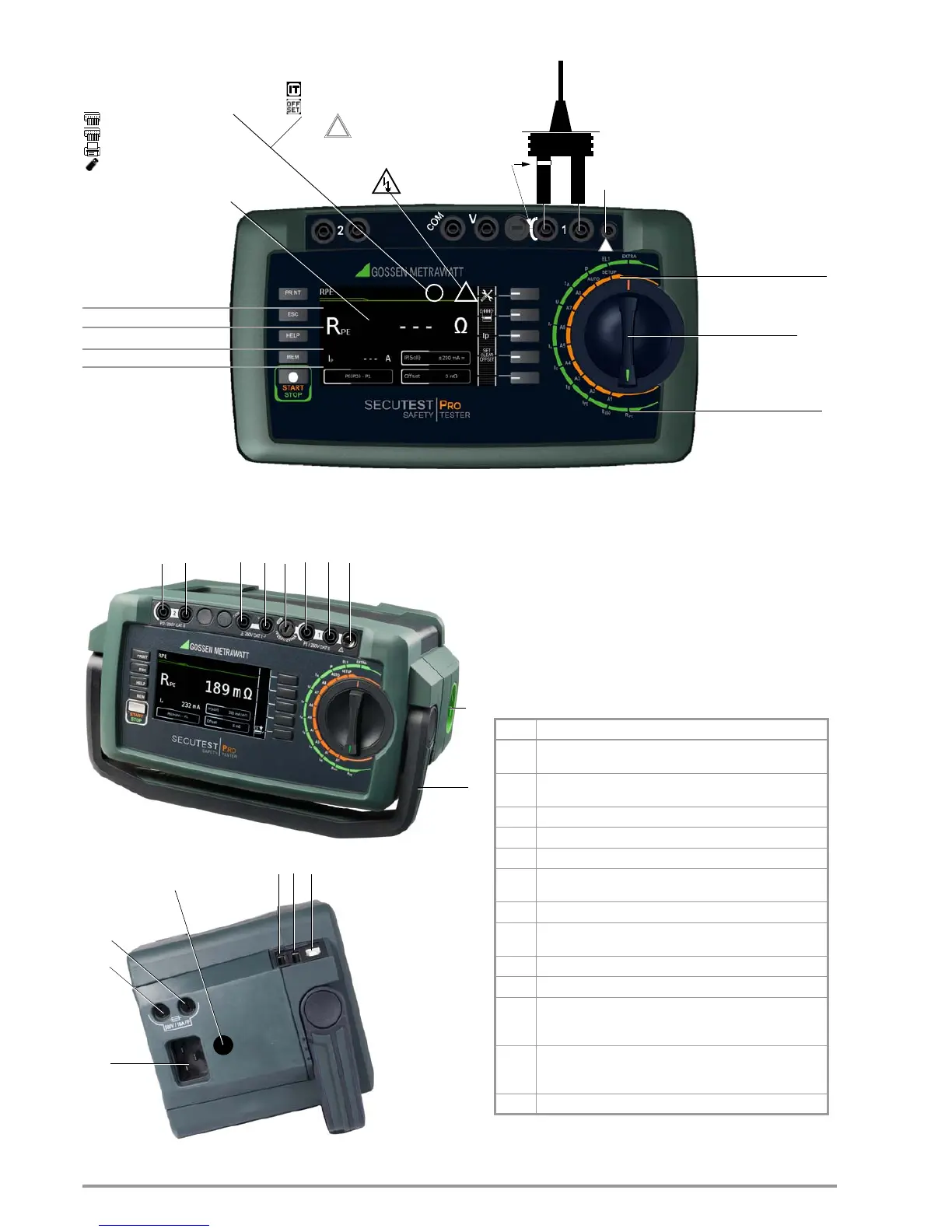

Gossen MetraWatt SECUTEST PRO - Controls and Connections

2 GMC-I Messtechnik GmbH
Controls
Connections
These operating instructions describe an instrument with software version 1.5.0.
Rotary
selector switch
LCD panel
Single measurements
Sequences A1 ... A8, AUTO
(automatic test sequences)
MEM: Database functions
ESC:Return
Fixed Function Keys
HELP: Help images
START: Start/stop
– Single meas.
– Test sequence
Finger contact
PRINT: Print via USB
Rotary switch level:
Rotary switch level:
Softkeys
Standard
test probe
!
Connection for
service plug only
Lightning symbol:
mains to test socket
!
White identified
and fused high
current path
– For keyboard *
– For barcode/RFID scanner *
– For printer
– For USB drive
Display of symbols for
devices connected to the
USB master interface (see below)
Display of special symbols:
– Measurement at IT system active
– Offset for RPE active
* The receiver must be plugged in here for wireless entry devices.
orange
green
* A list of suitable devices is included in the appendix (see section 14).
No. Meaning
1
2
nd
test probe for 2-pole measurement
SECUTEST PRO only (or device with feature H01)
2
Voltage measuring inputs
SECUTEST PRO only (or device with feature I01))
3
Fuse link for the probe input
4
Test probe connection (P1)
5
Connection (jack socket) for service plug only!
6
Country-specific standard socket (test socket)
for connecting devices under test
7
Carrying handle and tilt stand
8
Country-specific socket for mains power via inlet
plug
9
Fuse link 1 for the mains connection
10
Fuse link 2 for the mains connection
11
Fuse link for 10 A protective conductor test
(additionally with SECUTEST BASE10 (feature G01) or
SECUTEST PRO)
12
USB master for connecting keyboard, barcode/
RFID scanner*, printer and USB flash drive (FAT
formatted, not NTFS)
13
USB slave for connection to a PC
34 54
6
7
9
10
8
11
12 13
