GPD Global CF-9 - Figure 2 Adjustment Parts; Hand Crank; Safety Shield; Adjustment Parts

1
2
3
4
5
CF-9 User's Guide
6 GPD Global 09/30/92

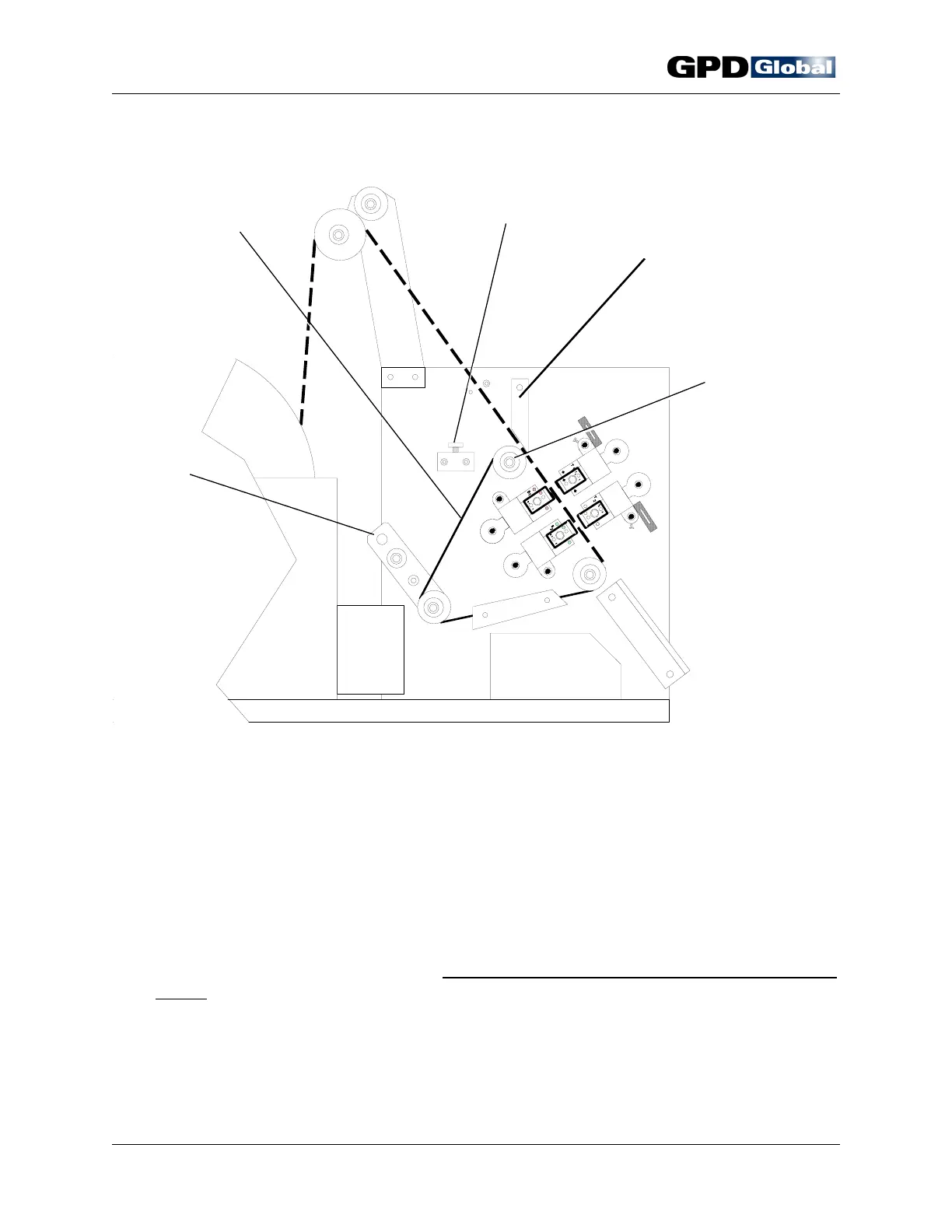

Figure 2 Adjustment Parts
Adjustment Parts
Item 1 Belt Tension Release Bar Item 4 Component Tape Pressure Plate
Item 2 Transfer Belt Lever
Item 3 Safety Shield Lock Item 5 Drive Pulley
(adjusts Transfer Belt timing)
Hand Crank
Not shown. The hand crank port is located in the lower left corner of machine's back
panel. By inserting the supplied Allen Key in this port, the operator can slowly operate the
CF-9 manually, moving all mechanisms during setup, adjustment, testing, or
troubleshooting to assure proper die and component positioning. The hand crank can be
used to move mechanisms in reverse only during setup and only when no components are
loaded.
Safety Shield
Not shown. The safety shield must be in place during machine operations. Machine
operations cease whenever the shield is opened.
