GPD Global CF-9 - Die Number; Figure 24 Examples of die Numbers; Figure 25 Examples of die Number Location; Forming Style Series

1
T
2
B 1
2
Forming
Style Series
9
05-3JA
Forming style
series
D
ie Type
905-4A
F
Wire to hole
specification
Forming
dimension
1
T
B 1
1
T
B 1 3 4A
3 4A
F
F
JA
JA
905-4AF905-3JA
1
T
B 1 3H
3H
905-3H
CF-9 User's Guide
09/30/92 GPD Global 35

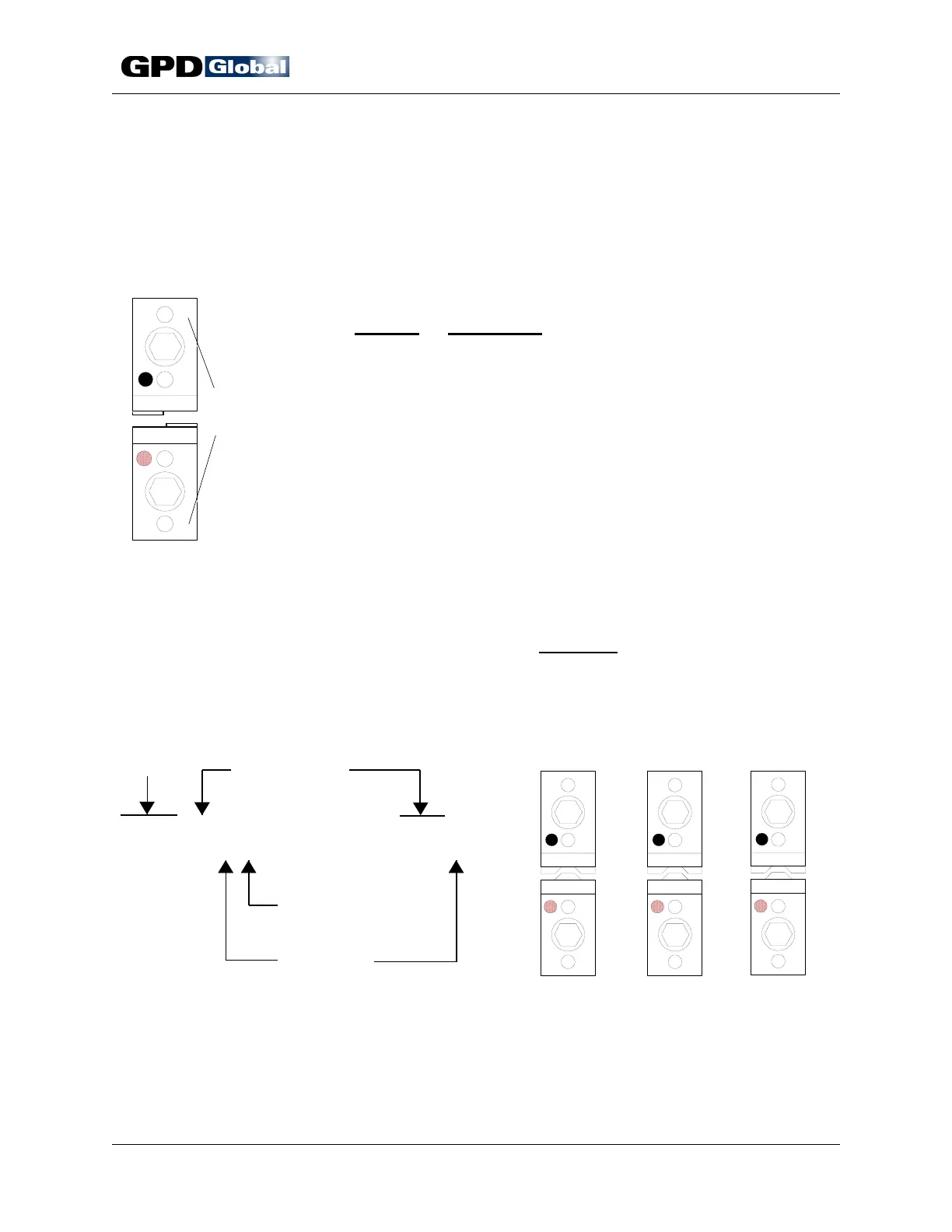

Figure 23
Forming Style Series
Figure 24 Examples of Die Numbers Figure 25 Examples of Die Number Location
Appendix A - Die Information
Forming Style Series
The forming style series is stamped on the right hand side of each die and knife (Figure 23):
Forming Style Series
Number
Description
1 Die, 3 Lead Radial (typically TO-92), In-Line
2 Die, 2 Lead Radial, Stand-Off, Opposing Dimple
2C Die, 2 Lead Radial, Lock-In Stand-Off, Opposing Dimple
3 Die, 2 Lead Radial, Lock-In Stand-Off
4A Die, 2 Lead Radial, Spreading
4B Die, 2 Lead Radial, Reducing
5Knife
7 * Die, 2 Lead Radial, 90° Bend
8A Die, 2 Lead Radial, Spreading, Lock-In Stand-Off
8B Die, 2 Lead Radial, Reducing, Lock-In Stand-Off
10 Die, 2 Lead Radial, Stand-Off Lock-In
11 Die, 2 Lead Radial, Flush Mount Lock-In
* NOTE: GPD has an adjustable
90° bend 7-style die
available. Call GPD for details. (970) 245-0408
Die Number
For further die specification details, refer to the CF-9 Component Forming Die Catalog.
