CF-9 User's Guide
40 GPD Global 09/30/92

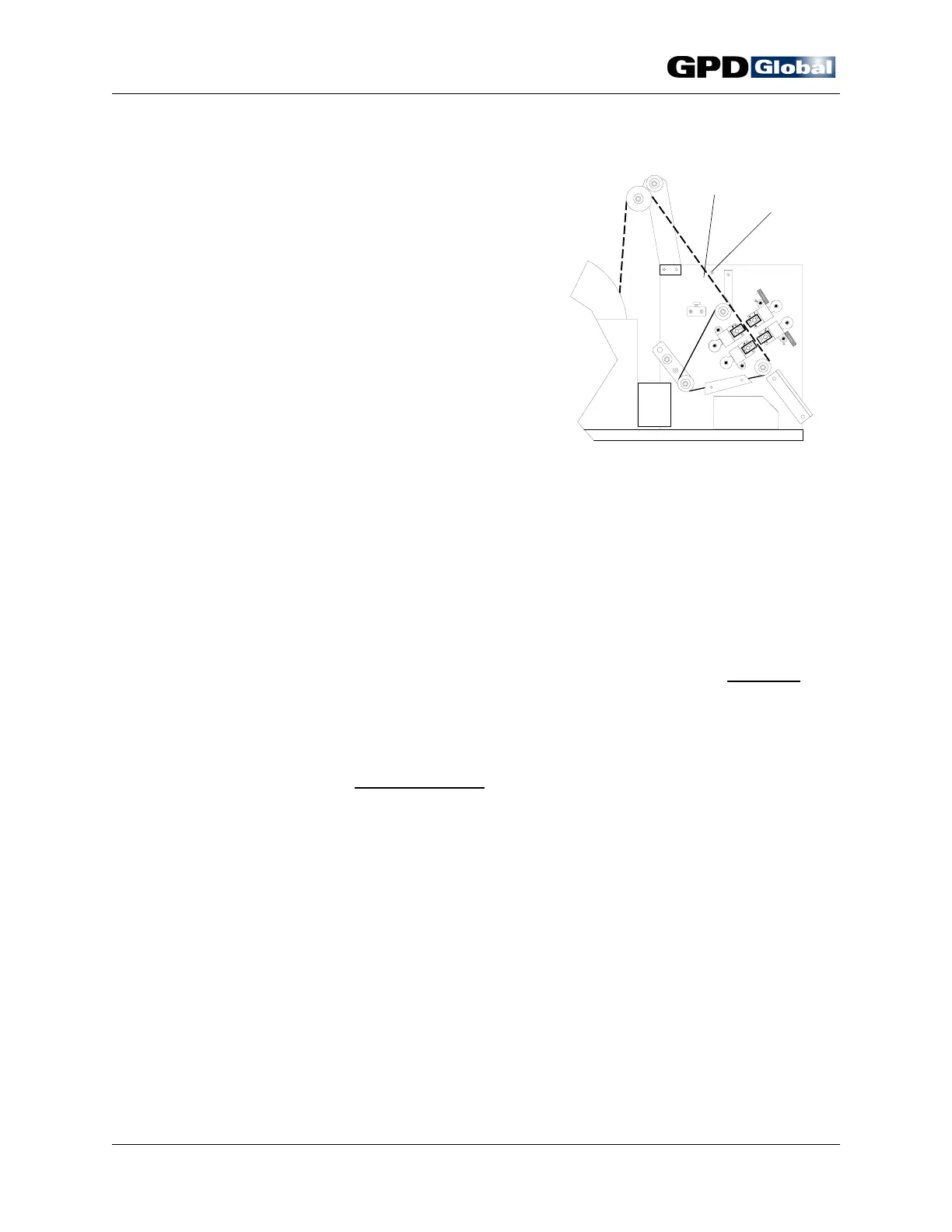

Figure 26 Electronic Component Counter
Installation
Counter Installation:
1. Remove cap screw (Figure 26, Item 2).
2. Slide counter bracket onto dowel pin (Item 1).
Replace and tighten cap screw to secure counter
mounting.
3. Place counter on top of CF-9 cabinet.
4. Plug counter bracket wiring harness into counter's
back panel.
5. Plug counter power cord with twist lock plug into
accessory outlet on CF-9's control panel.
6. Plug counter's regular power cord into a power
source per Specifications.
Footswitch
The optional footswitch is a real operator convenience. After easily installing the footswitch, the
operator need only position the CF-9 power switch to the AUX position and depress the
footswitch to operate the machine.
Footswitch Installation:
1. Turn power switch to off.
2. Set speed control to zero (0).
3. Insert footswitch plug into accessory outlet on CF-9's control panel and turn clockwise
to
lock in place.
4. Set power switch to AUX position. The auxiliary mode indicator lights.
5. Set speed control to desired operating speed.
To remove footswitch, turn plug counterclockwise
.
Lazy Susan (Rotating Machine Platform)
This rotating, circular platform allows the operator to easily rotate the entire machine to gain
better access for setup, die changes, and normal maintenance. The Lazy Susan has been
specifically constructed to operate smoothly under the CF-9's weight. Covered in ridged, anti-
static material, this turntable holds the machine securely in any position with its unique graphite,
anti-drift system.
