SHIFT
Description
This command can be used to fine-tune the entire label up or down from its
current position. The position relates to the top edge of the label. A negative
value moves the entire label away from the top of the label; a positive value
moves the entire label to the top of label.
Syntax
SHIFT n
Parameter Description
n The maximum value is 1 inch. For 203 dpi printers,
the range is from –203 to 203; The unit is dot.

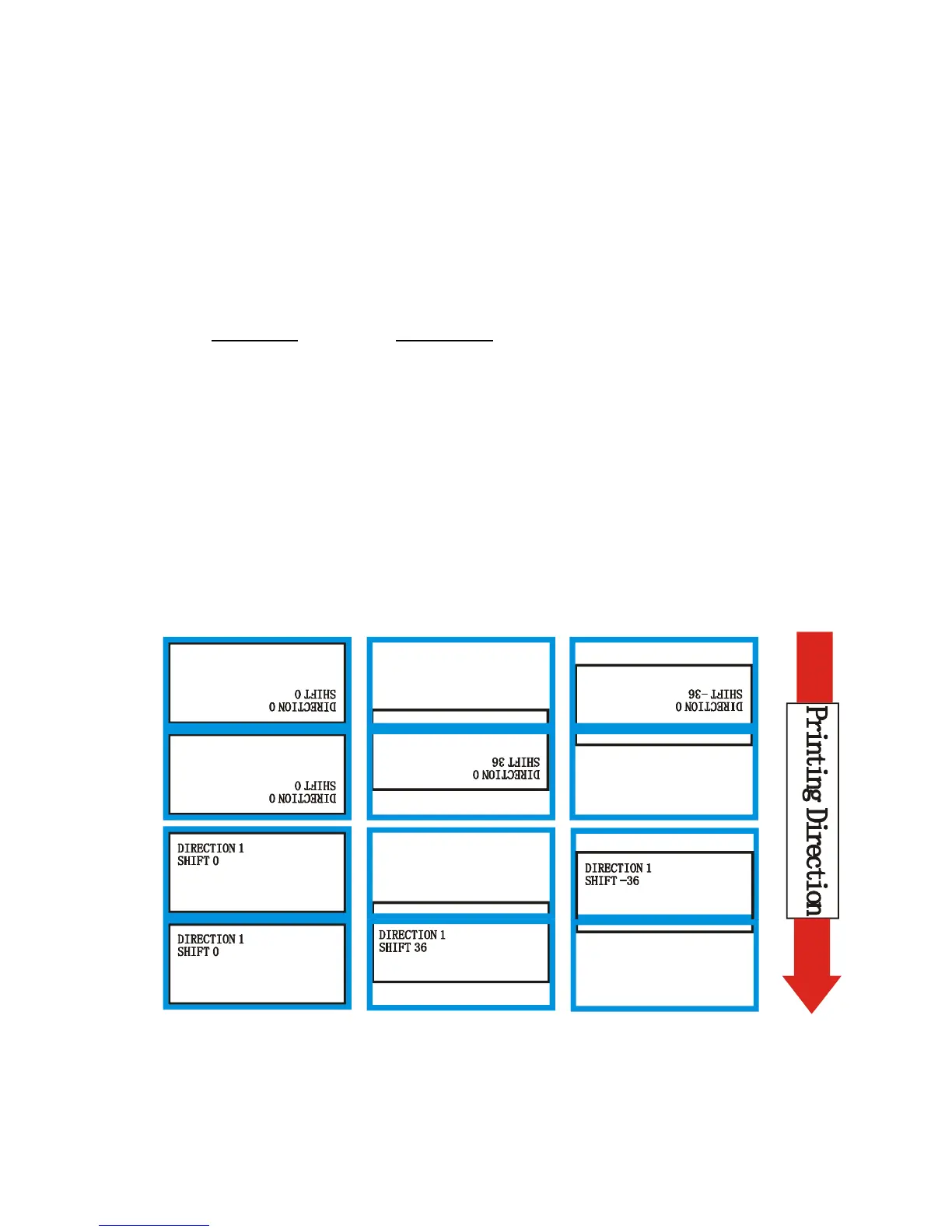

Example
SIZE 4,2.5
GAP 2 mm,0
DIRECTION 0
SHIFT 36
OFFSET 0
CLS
TEXT 400,200,"3",0,1,1,"DIRECTION 0"
TEXT 400,250,”3”,0,1,1,"SHIFT 36"
BOX 10,0,780,490,8
PRINT 3,1
See Also
OFFSET, REFERENCE
