Graco D200 User Manual

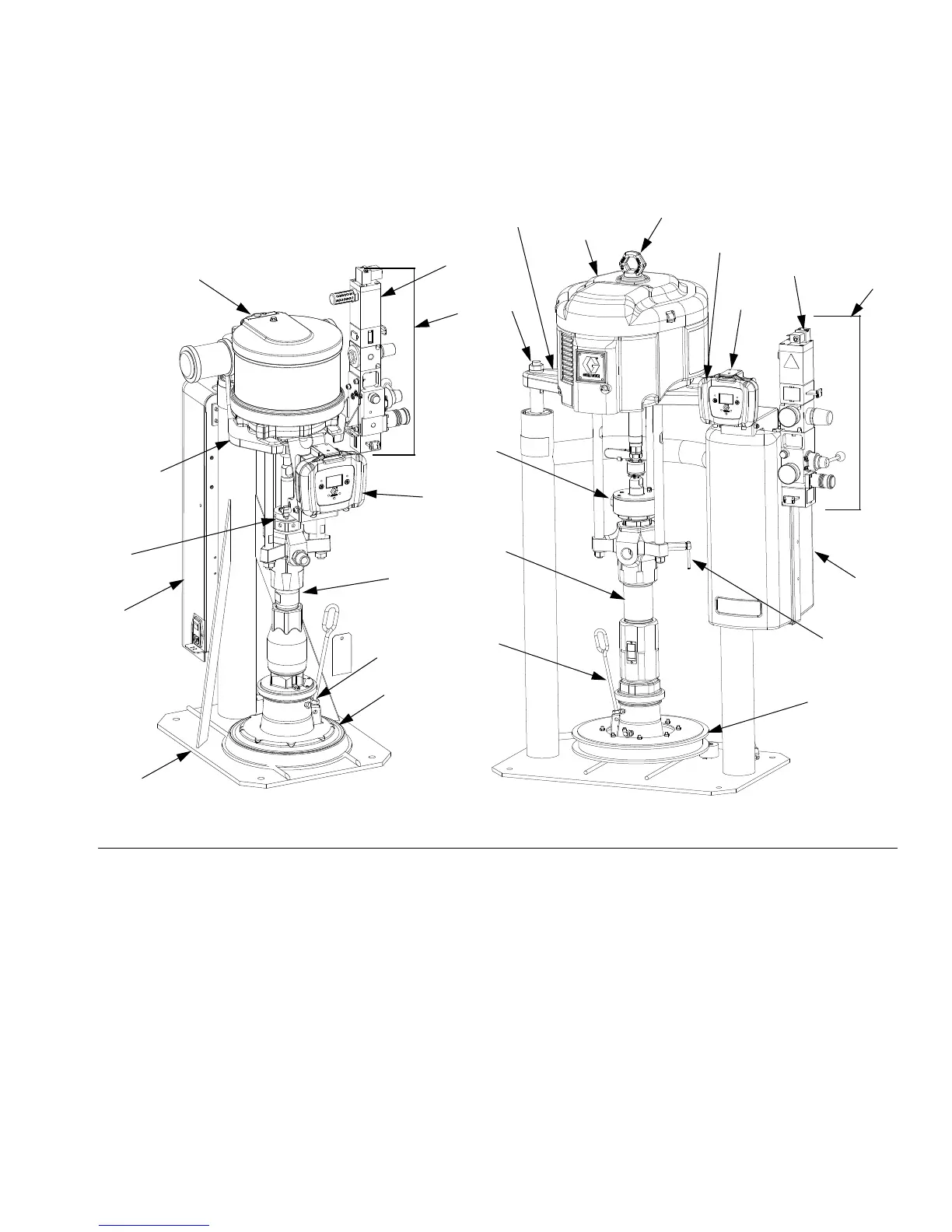

Component Identification
313527ZAD 11
S20 3 in. Single Post and D60 3 in. Dual Post
Key:
A Ram Assembly
B Air Motor
C Displacement Pump
D Platen
F Remote DataTrak (single ram systems) or
Display Module (tandem systems)
G Integrated Air Controls (see F
IG.3)
H Lift Ring
J Platen Bleed Port
K Power Supply Box (under shrouding)
P Pump Bleed Valve
R Enclosed Wet Cup
S Fluid Line (not supplied, see F
IG.1)
T Air Line (not supplied, see F
IG.1)
U Air Line Drain Valve (not supplied, see F
IG.1)
V Air Filter (not supplied, see F
IG.1)
W Bleed Type Air Shutoff Valve (not supplied, see F
IG.1)
X Air Motor Solenoid
FIG.2
r_255648_313527_6a
Model CM9HLB Shown
Model CM2MRY Shown
r_255648_313527_5a
G
F
B
A
B
A
H
F
G
J
D
K
K
D
J
R
R
C
C
X X
(Note: Do not use motor
lift ring to lift entire
system.)
Lift Location
Lift Location
Lift
Location
P
