Component Identification
14 313527ZAD
L20c 2 in. Air Controls
• Air motor regulator (DA): Controls air pressure to
motor.
• Blowoff button (DB): turns air on and off to push
the platen out of an empty drum.
• Air motor shutoff valve (DC): turns air on and off
to the air motor.
• Elevator director valve (DD): controls elevator
direction.
Air and Fluid Hoses
Be sure all air hoses (AI) and fluid hoses (AH) are prop-
erly sized and pressure-rated for your system. Use only
electrically conductive hoses. Fluid hoses must have
spring guards on both ends. Use of a short whip hose
and a swivel between the main fluid hose and the
gun/valve allows freer gun/valve movement.

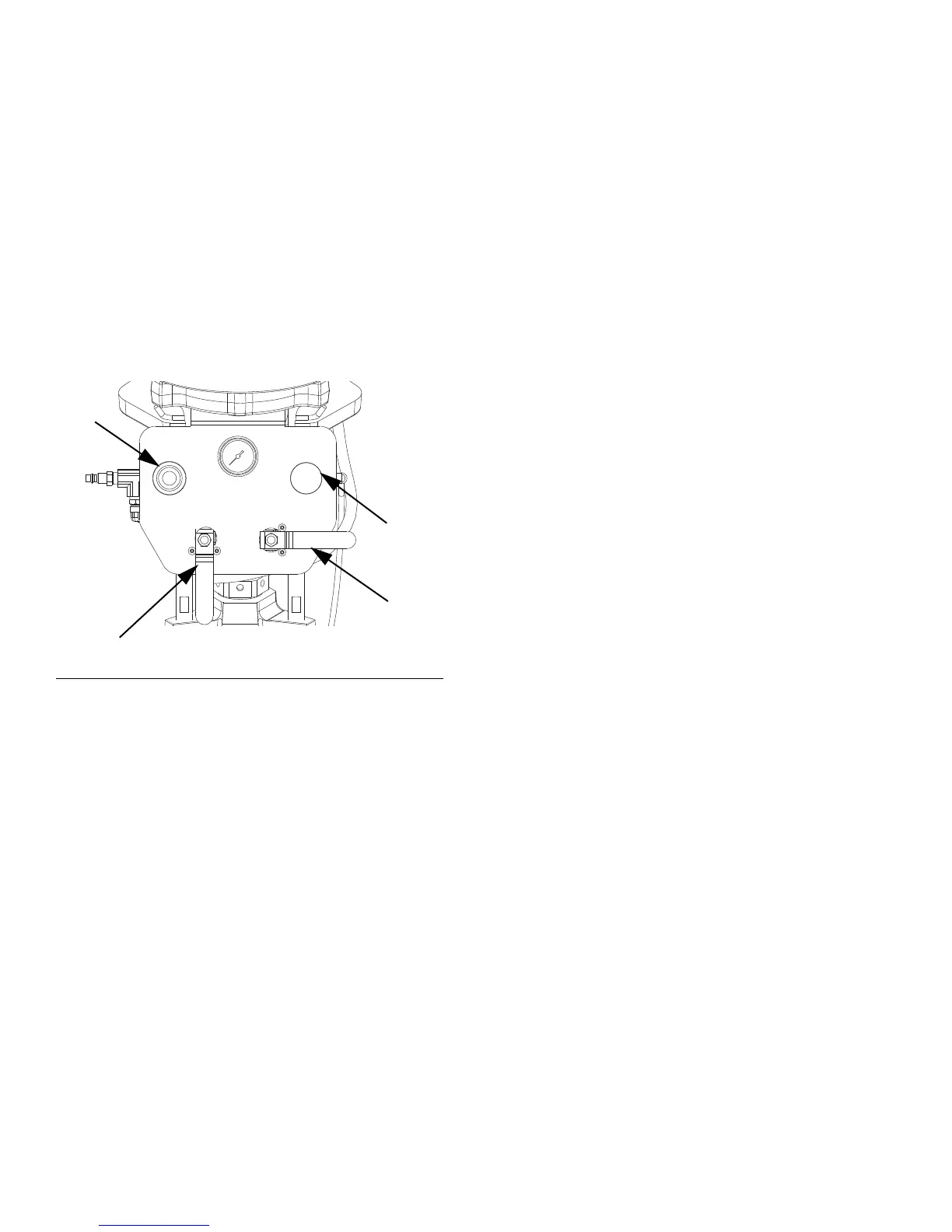

F
IG. 7: Elevator Air Controls
r_257302_312376_2e
DA
DD
DC
DB
