Repair
313527ZAD 23
Repair
Disconnect Pump from Platen
The pump is mounted to the platens by mounting kit
255392 or 257630. See the Repair Kits on page 64.
30 and 55 Gallon Platen
1. Remove four hex screws (426), four clamps (427),
and washers (425).
2. Carefully pull pump away to prevent damage to
pump inlet and remove o-ring (428)
20, 30, and 60 Liter Platen
1. Loosen two 5/16 in. screws (462) from platen.
2. Carefully pull pump away to prevent damage to
pump inlet. If using a pump with intake adapter,
remove screws (472), adapter (471), and o-rings
(473, 463) from pump inlet.

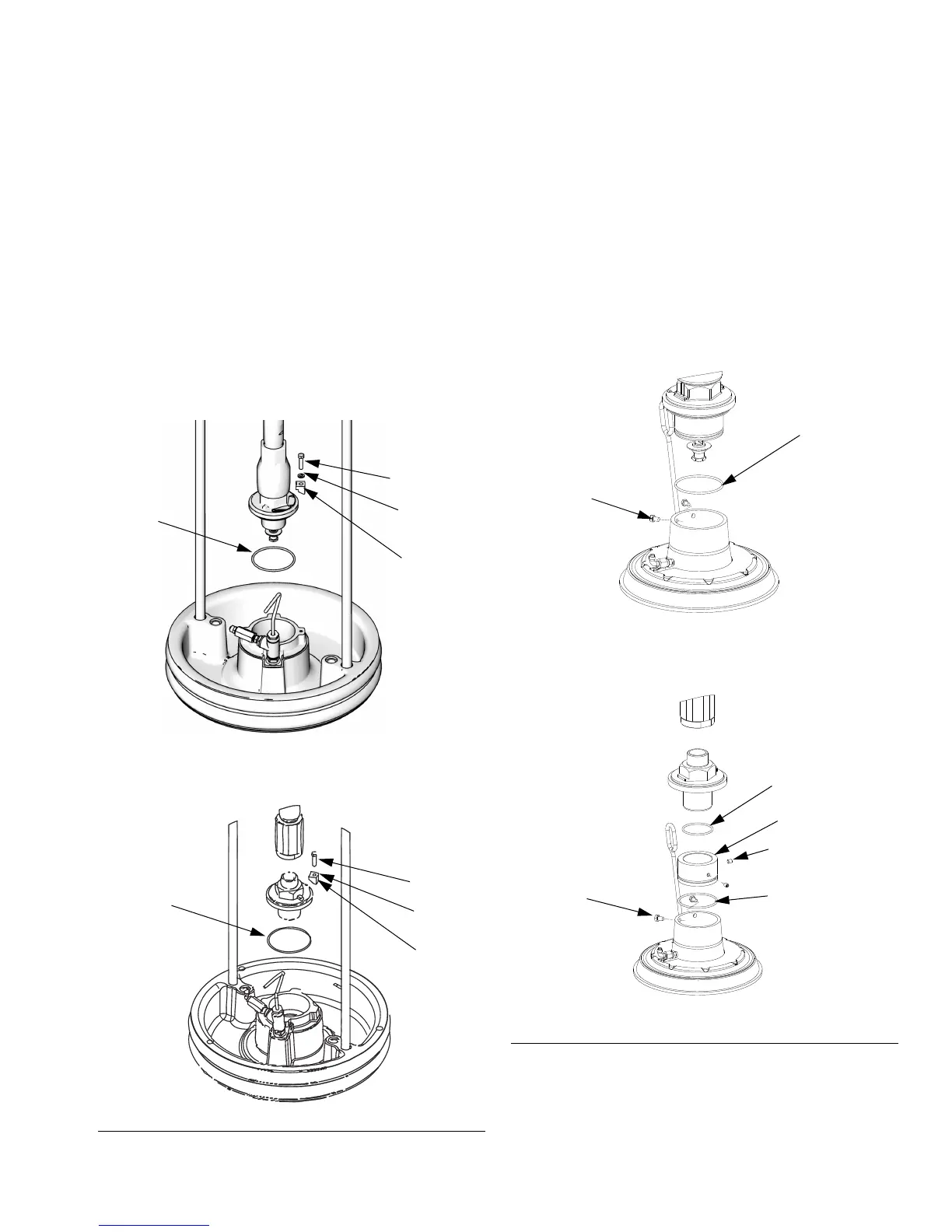

FIG. 18: 55 and 30 Gallon Mounting Kit
TI10422A
426
425
427
428
426
425
427
428
312373_1
Check-Mate Mounting
Dura-Flo Mounting
FIG. 19: 20, 30, and 60 liter mounting kit
463
462
Check-Mate Mounting
r_255648_313527_35a
472
473
471
463
462
Dura-Flo Mounting
r_255648_313527_36a
