Parts
56 313527ZAD
30 and 55 Gallon Platen
115 Liter (30 Gallon) Platen, Model 255661

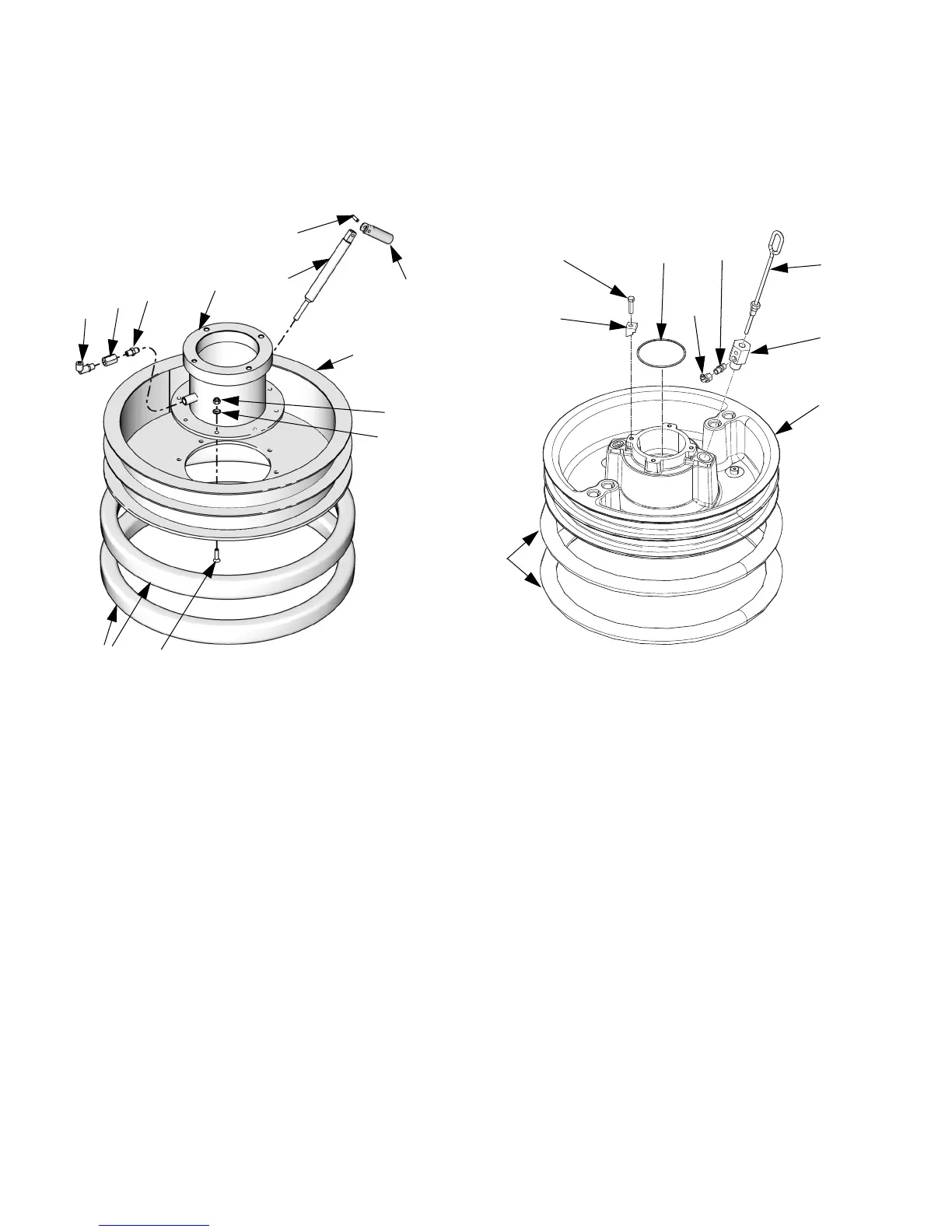

115 Liter (30 Gallon) Platen Parts
200 Liter (55 Gallon) Platen, 255662,
255663, and 255664
200 Liter (55 Gallon) Platen Parts
* Parts included in 255392 Kit (purchase separately).
✠ Parts not included with 255662, 663, and 664.
Ref.
No. Part No. Description Qty.
403 166560 STEM, probe 1
404 101831 PIN, spring 1
405 177542 HANDLE 1
406 102040 NUT, lock, hex 8
408 255654 WIPER, seal 1
410 109469 SCREW, machine flat hd 8
411 ADAPTER, 30 gal. 1
414 PLATE, follower, 30 gal. 1
416 114317 VALVE, check 1
417 597151 FITTING, elbow 1
420 C20521 SEAL, thread 8
429 100451 COUPLING 1
404
403
411
416
429
417
414
406
420
410
408
TI10530A
405
Ref.
No. Part No. Description Qty.
403 257697 HANDLE, bleed assy 1
408 255652 SEAL, wiper, drum, 55 gal., neo-
prene; for 255664 only.
2
255653 SEAL, wiper, drum, 55 gal., EPDM;
for 255663 and 255662 only.
2
414 PLATE, ram 55 gal., for 255664
and 255663 only.
1
PLATE, ram 55 gal., PTFE 1
416 122056 VALVE, check, 1/4, for 255662 and
255663 only
1
501867 VALVE, check, 5/8, for 255664 only 1
417 C20350 FITTING, TUBE, quick disconnect 1
421 15W032 ADAPTER, for 255662 and 255663
only
1
16W974 ADAPTER, for 255664 only 1
426*✠102637 SCREW, cap 4
427*✠276025 CLAMP 4
428*✠109495 O-RING 1
414
417
416
403
408
421
ti20583a
*426
*427
*428
