Parts
313527ZAD 57
200 Liter (55 Gallon) Platen with EPDM
Hose Wipers, 24Y343

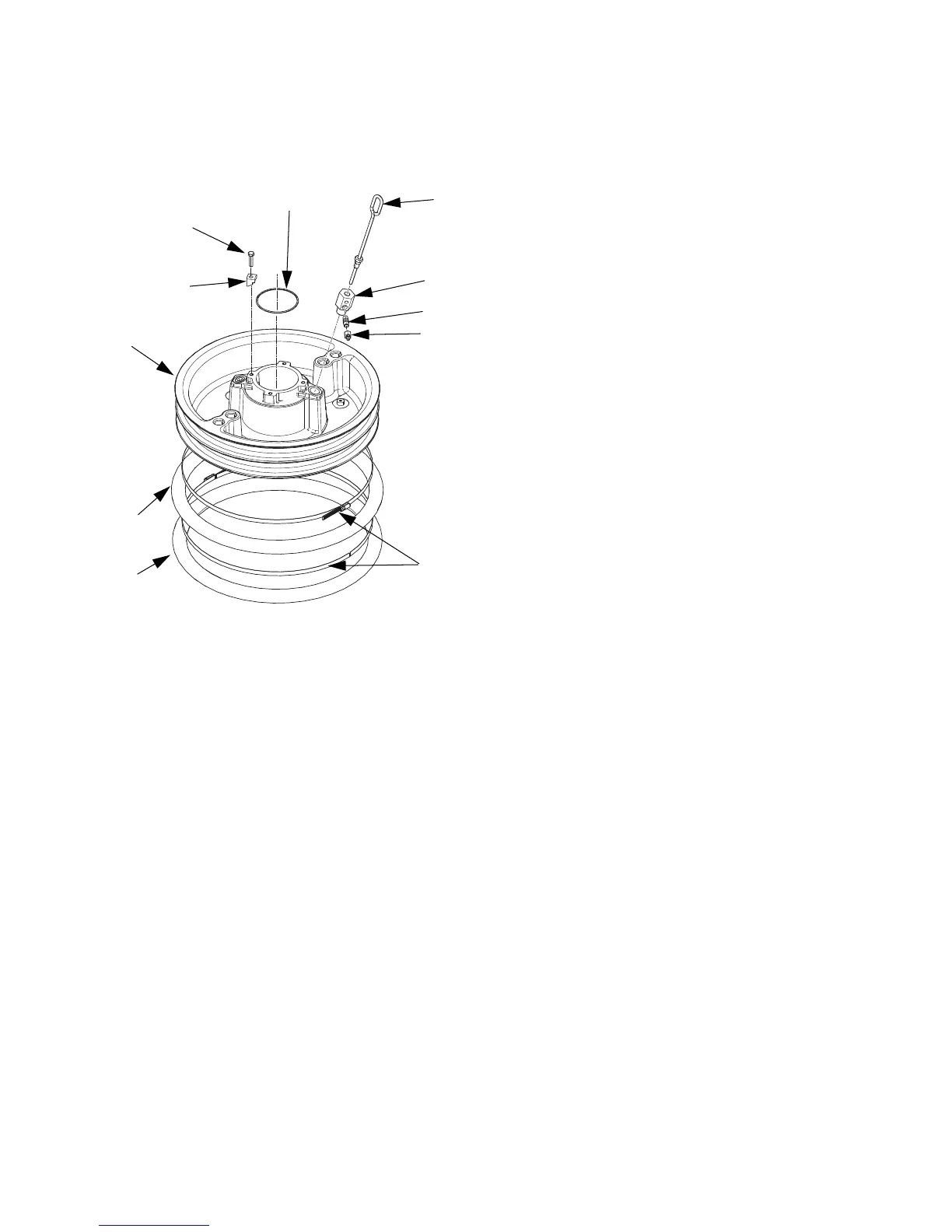

200 Liter (55 Gallon) Platen with EPDM
Hose Wipers Parts
* Parts included in 255392 Kit (purchase separately).
Parts included in 25M210 Kit (purchase separately).
Parts not included with 24Y343.
Ref.
No. Part No. Description Qty.
403 257697 HANDLE, bleed assy 1
408 17L889 SEAL, wiper, drum, 55 gal., EPDM 1
409 162230 SEAL, wiper, drum, 55 gal., EPDM 1
410 17B467 CLAMP, tire 4
414 PLATE, ram 55 gal. 1
416 122056 VALVE, check, 1/4 1
417 C20350 FITTING, TUBE, quick disconnect 1
421 15W032 ADAPTER 1
426* 102637 SCREW, cap 4
427* 276025 CLAMP 4
428* 109495 O-RING 1
WLD
414
417
416
403
408
421
*426
*427
*428
409
410
