Graco D200 - D200 S and D200 Pump Mounts for 5 Gallon; Liter), 8 Gallon (30 Liter), 16 Gallon (60 Liter), and 30 Gallon (115 Liter) Platens

Parts
44 313527ZAD
D200s and D200 Pump Mounts for 5 Gallon (20 Liter), 8 Gallon (30
Liter), 16 Gallon (60 Liter), and 30 Gallon (115 Liter) Platens
◆ Pump Mounts 255316 and 255317 only.
‡ Pump Mounts 255308 and 255309 only.
✖ Not shown.

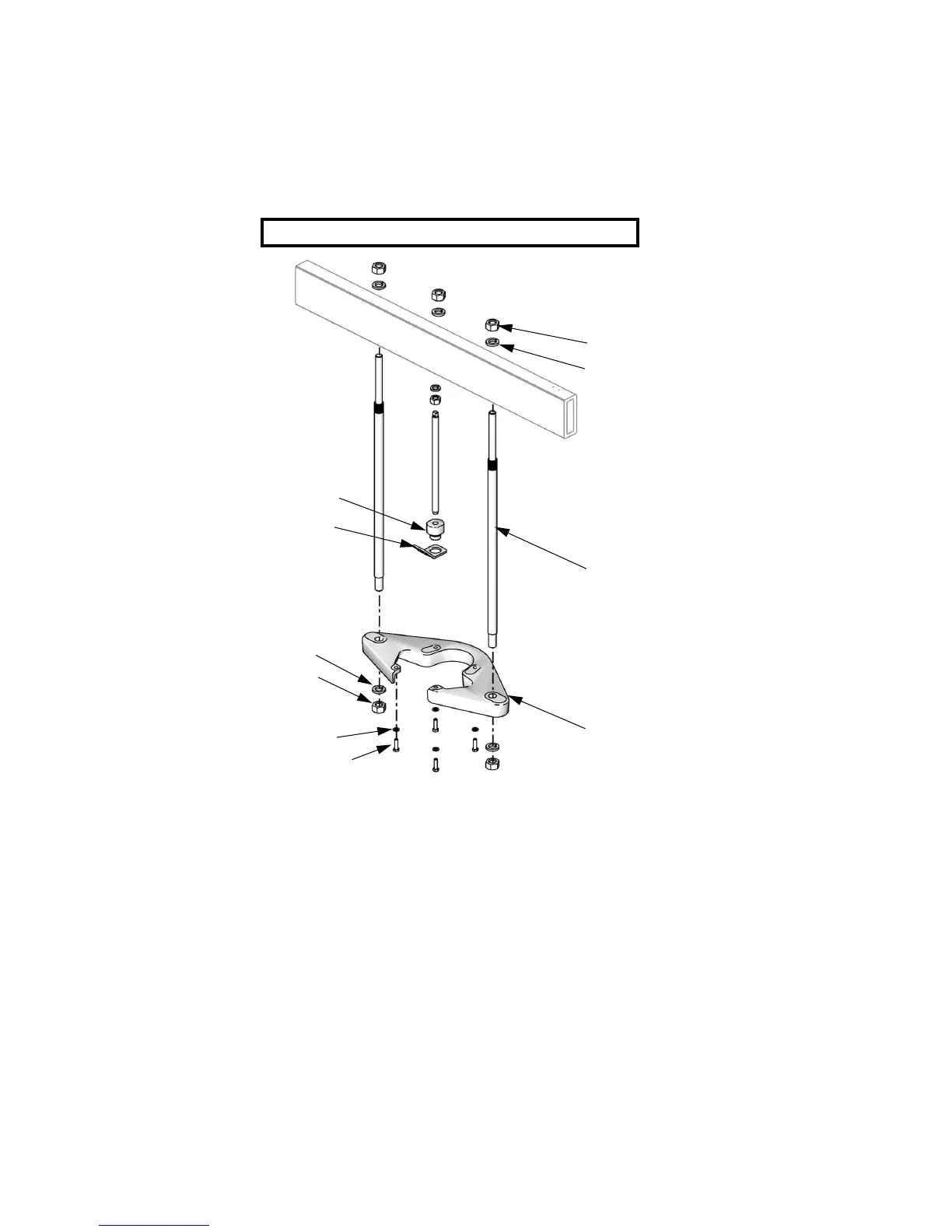

Kits - 255316, 255317, 255308, 255309
101
102
102
103
109
110
111
103
117
116
Note: See page 38 for kit configuration table.
Ref. Part Description Qty
101 15M298◆ ROD, tie bar, shelf 2
15M297‡
102 101015◆ WASHER, lock 4
101533‡
103 C19187◆ NUT, hex 4
101535‡
109 BRACKET, shelf 6500, 3400;
255316 and 255308 only
1
BRACKET, shelf 2200; 255317
and 255309 only
1
110 100133 WASHER, lock 4
111 SCREW, cap, hex hd 4
115 ROD, threaded 1
116 ADAPTER, lift, ring 1
117 RING, lift, plate 1
124✖ 160327 FITTING, union adapter, 90° 1
125✖ C12034 HOSE, coupled; 72 in. 1
126✖ 552071 SLEEVE, protective, 6 ft 1
127✖ 105281 FITTING, 3.4 nptf x 3/4 npsm, 45° 1
