Component Identification
12 313527ZAD
Integrated Air Control Module
D200, D200s, D60, and S20 Models
The integrated air controls include:
• Main air slider valve (BA): turns air on and off to
the system. When closed, the valve relieves pres-
sure downstream.
• Ram air regulator (BB): controls ram up and down
pressure and blowoff pressure.
• Ram director valve (BC): controls ram direction.
• Exhaust port with muffler (BD)
• Air motor regulator (BE): Controls air pressure to
motor.
• Air motor slider valve (BF): turns air on and off to
the air motor. When closed, the valve relieves air
trapped between it and the air motor. Push the valve
in to shutoff. Remote DataTrak: The air solenoid,
the air motor slider valve (BF), and the main air
slider valve (BA) must be open for air to flow. (See
Remote DataTrak Setup, in manual 312371)
• Blowoff button (BG): turns air on and off to push
the platen out of an empty drum.
Integrated Air Line Accessories
See FIG.1.
• Air line drain valve (U)
• Air line filter (V): removes harmful dirt and mois-
ture from compressed air supply.
• Second bleed-type air valve (W): isolates air line
accessories for servicing. Locate upstream from all
other air line accessories.
• Air relief valve (not visible): automatically relieves
excessive pressure.
2-Button Interlock Air Controls
D200i, D200si, and D60i Models
Units that have 2-Button Interlock controls have the fol-
lowing additional components:
• 2-Button Module: See manual 312374 for informa-
tion.
• Roller switch (CA): shuts off air supply when it
contacts the bracket actuator. Operator must push
and hold buttons to resume ram movement.
• Bracket actuator (CB): attaches to the platen lift
rod. When ram is near the top, actuator makes con-
tact with the roller switch.

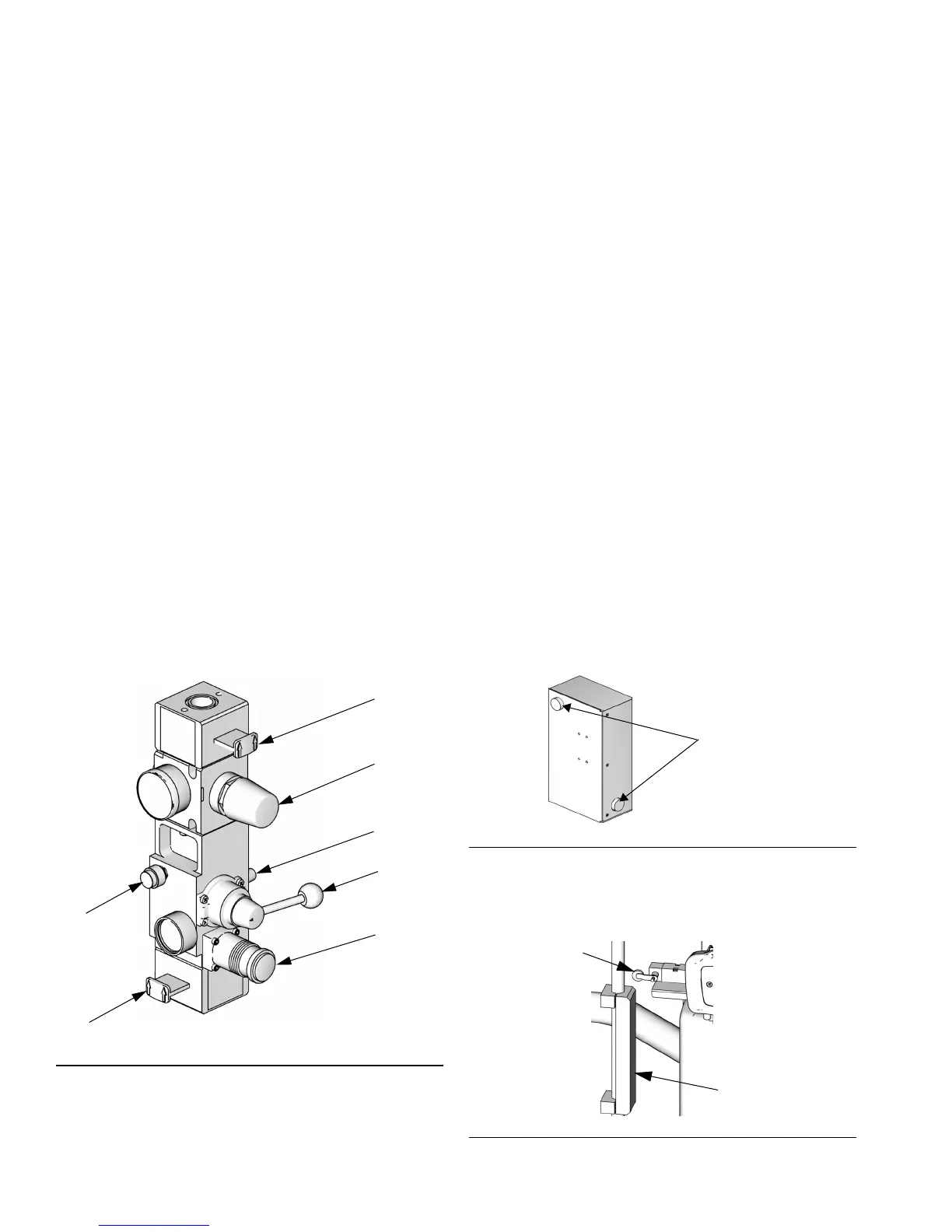

FIG. 3. Integrated Air Control Module
BA
BB
BC
BG
BE
BF
BD
ti10438a
FIG.4
FIG.5
Activation
Buttons
ti10843a1
CA
CB
ti10846a
