Install Air Motor
D200 3 in. and D200s 6.5 in. Supply Units
NXT with 55 gallon platen:
1. For NXT2200-6500: Using a capable hoist, insert tie
rods into displacement pump and secure air motor
to pump.
a. See Reconnect Displacement Pump in
Check-Mate Pump Packages manual 312376.
b. Install threaded rod (106) through center hole in
the crossbar. Install lock washers (104) and
nuts (105) onto threaded rod (106), both above
and below crossbar. Use wrench to hold lift ring
adapter (107) and tighten threaded rod (106)
into lift ring adapter (107) using another wrench.
See FIG. 30.
c. Tighten nut (105) below crossbar to 25 ft-lb (34
N•m) maximum.
d. Tighten nut (105) above crossbar to lock motor
in place.
2. For NXT200-1800: Attach motor to mounting
bracket with screws (111) and washers (110). See
FIG. 25 on page 27.
3. Connect air hose to motor. If using a remote Data-
Trak, connect electrical connections to the air
motor. See F
IG. 22 and FIG. 23 on page 26.
NXT with smaller platens:
4. Position mounting plate (109) to ensure top of motor
will clear the crossbar. See FIG. 26. Using a capable
hoist, attach motor to mounting plate (109) using
screws (111) and washers (110).
a. See Reconnect Displacement Pump in
Check-Mate Pump Packages manual 312376.
b. Connect air hose to motor. If using a remote
DataTrak, connect electrical connections to the
air motor. See F
IG. 25 on page 27.
Xtreme XL Air Motors
1. Using a capable hoist, lower air motor on the mount-
ing plate (109). See FIG. 29.
2. Secure motor to mounting plate (109) with nuts
(114) and washers (113).
3. Install cross bar (1c), nuts (103), and washers (102).
4. See Reconnect Displacement Pump in
Check-Mate Pump Packages manual 312376.
5. Connect air hose to motor. If using a remote Data-
Trak, connect electrical connections to the air
motor. See FIG. 22 on page 26.

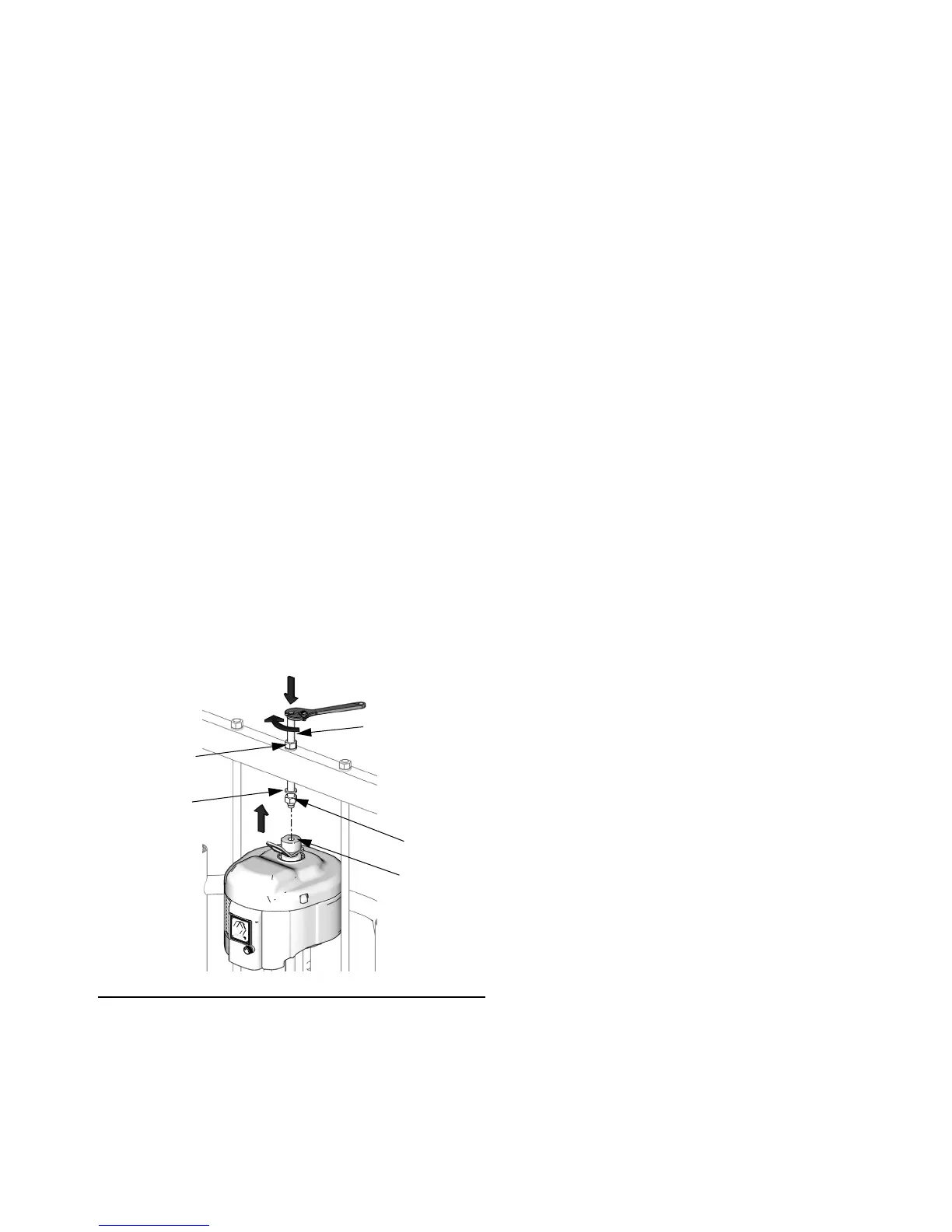

FIG.30
TI10649A
106
105
107
105
104
