Repair
28 313527ZAD
d. For NXT on S20 3 in. supply unit and L20c 2 in.
elevator: Remove screws (111) and washers
(110) securing motor to mounting bracket.
4. Using a capable hoist, secure air motor to hoist and
remove air motor.
Xtreme XL Air Motors
1. Remove air hose.
2. See Disconnect Displacement Pump in
Check-Mate Pump Packages manual 312376.
3. Remove nuts (103), washers (102), and cross bar
(1c).
4. Remove nuts (114) and washers (113) under the
mounting plate.
5. Using a capable hoist, secure air motor lift ring to
hoist and lift air motor off of mounting plate (109).

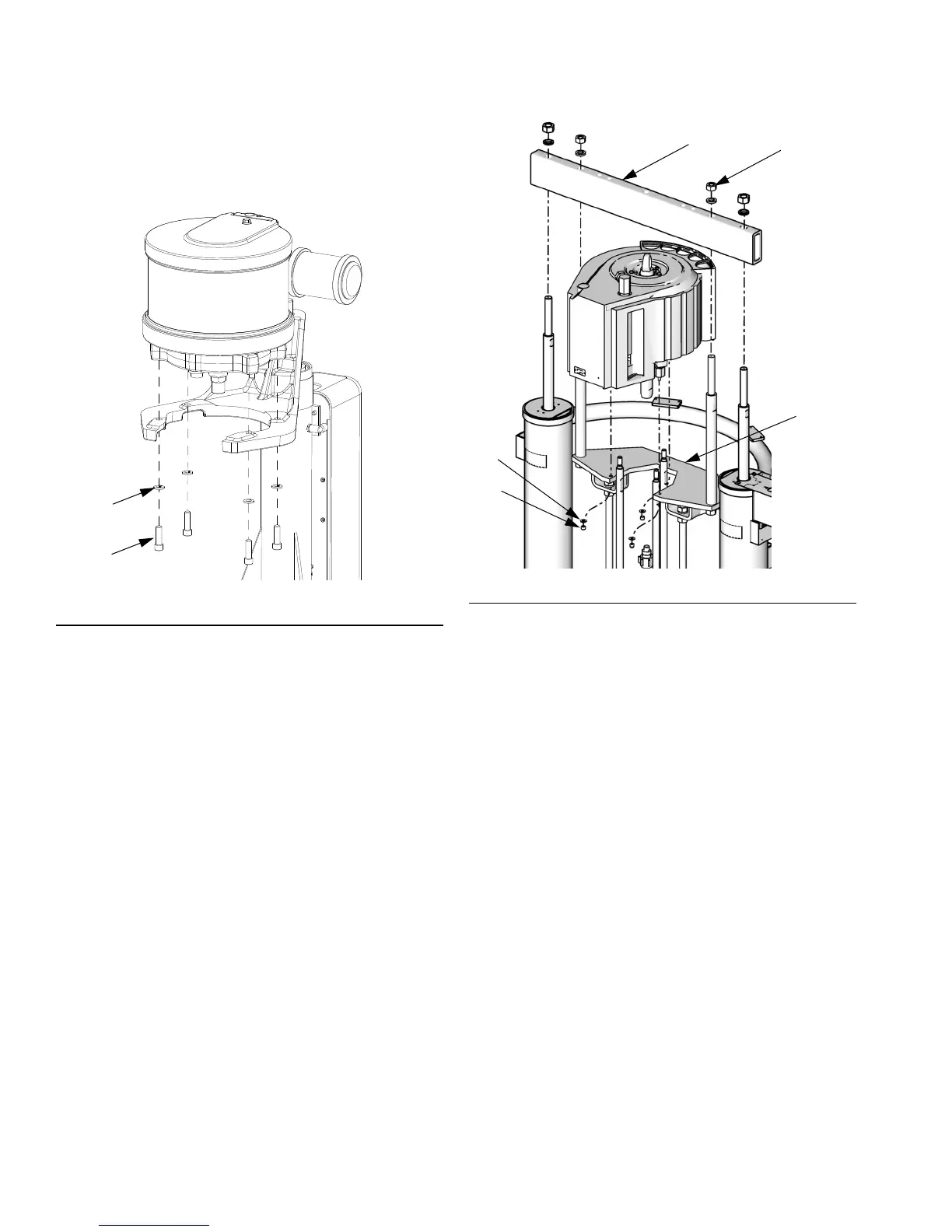

FIG.28
110
111
r_255648_313527_10a
FIG. 29: Xtreme XL Air Motors
TI10658A
109
113
103, 102
1c
114
