Parts
313527ZAD 43

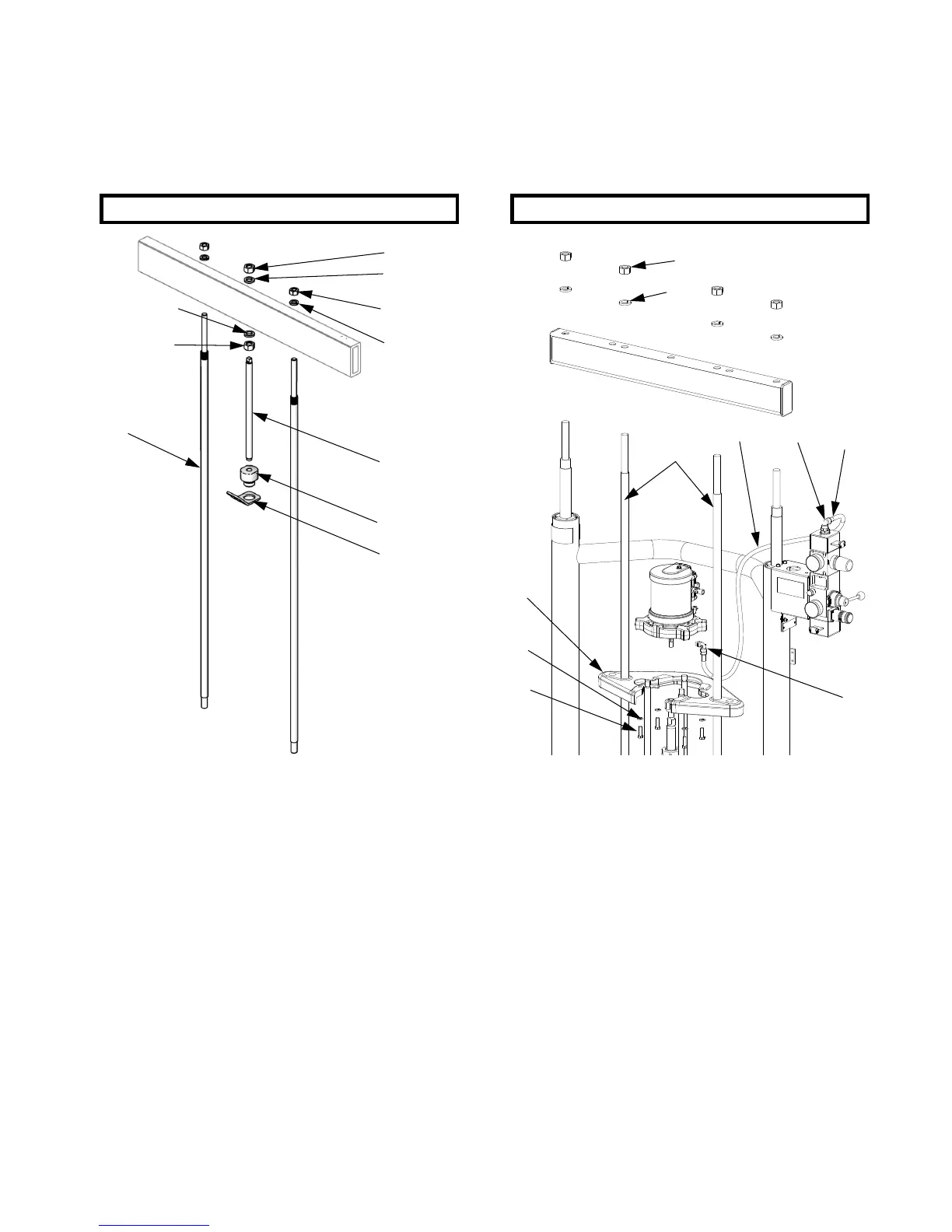

D200s and D200 Pump Mounts for 55 Gallon (200 Liter) Platen
✓ Pump Mount 255315 only.
✿ Pump Mount 255305 only.
❄ Pump Mount 256235 only.
✖ Not shown.
✖ Not shown.
TI10771A
Kits - 255315, 255305, and 256235
Kits - 257625 and 257627
101
103, 105
102, 104
108
106
107
104
104
105
105
Note: See page 38 for kit configuration table.
r_255648_313527_12a
103
110
111
109
102
101
120
119
118
117
Note: See page 38 for kit configuration table.
Ref. Part Description Qty
101 15M531✓ ROD, platen 2
167652✿❄
102 101015✓ WASHER, lock 2
103 C19187✓ NUT, hex 2
104 101533 WASHER, spring lock 2
105 101535 NUT, full hex 2
106 15M399✓ ROD, threaded 1
15J992✿❄ ROD, threaded 1
107 15J991 ADAPTER, lift, r ing 1
108 15J993 RING, lift, plate 1
124✖ 160327 FITTING, 3/4 nptf x 3/4 npsm, 90° 1
125✖ C12034 HOSE, coupled; 72 in. 1
126✖ 552071 SLEEVE, protective, 6 ft 1
127✖ 105281 FITTING, 3.4 nptf x 3/4 npsm, 45° 1
Ref. Part Description Qty
101 167652 ROD, platen 2
102 101533 WASHER, spring lock 2
103 101535 NUT, hex 2
109 BRACKET, shelf 1
110 100133 WASHER, lock 4
111 SCREW, cap, hex hd 4
117 114128 ELBOW, swivel, male; 257627
only
1
118 100896 BUSHING, pipe 1
119 ELBOW, 1/2 OD x 1/2 in. npt 1
120 061513 TUBE, nylon, 1/2 OD x 3/8 ID; 45
in.
1
121✖ SLEEVE, protective; 45 in. 1
122✖ STRAP, tie 2
123✖ HOLDER, cable tie, rotating 2
