Repair
313527ZAD 27
Remove Air Motor
NXT Air Motors
1. See Disconnect Displacement Pump in
Check-Mate Pump Packages manual 312376.
2. Disconnect air hose from air motor. If using a
remote DataTrak, detach electrical connections
from the air motor.
3. Disconnect air motor:
a. For NXT 2200-6500 with 55 gallon platen (D200
3 in. and D200s 6.5 in. supply units): Loosen nut
(105a) below crossbar. Use wrench to hold lift
ring adapter (107) in place and loosen threaded
rod (106) above crossbar with another wrench.
See F
IG. 24.
b. For NXT 200-1800 with 55 gallon platen (D200
3 in. and D200s 6.5 in. supply units): Remove
screws (111) and washers (110) securing motor
to mounting plate. See FIG. 25.
c. For NXT with smaller platen (D200 3 in., D200s
6.5 in., and D60 3 in. supply units): Remove
screws (111) and washers (110) securing motor
to mounting plate.

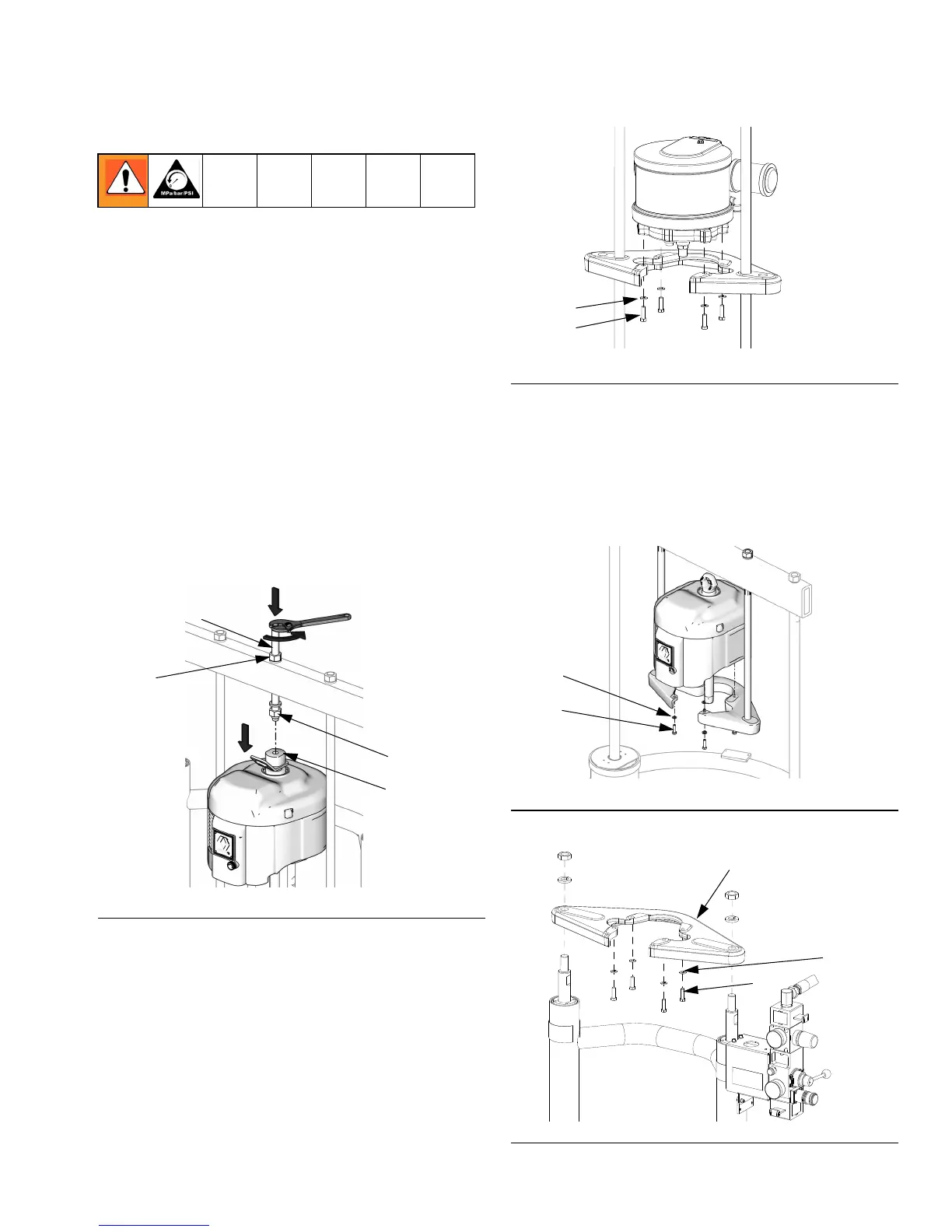

FIG. 24: NXT 2200-6500 with 55 Gallon Platen
TI11169A
106
105
107
105a
FIG. 25: NXT 200-1800 with 55 Gallon PLaten
FIG. 26: NXT on D200 with Small Platen
FIG. 27: NXT on D60 with Ram
110
111
r_255648_313527_9a
TI10786A
110
111
110
111
109
r_255648_313527_15a
