Parts
48 313527ZAD

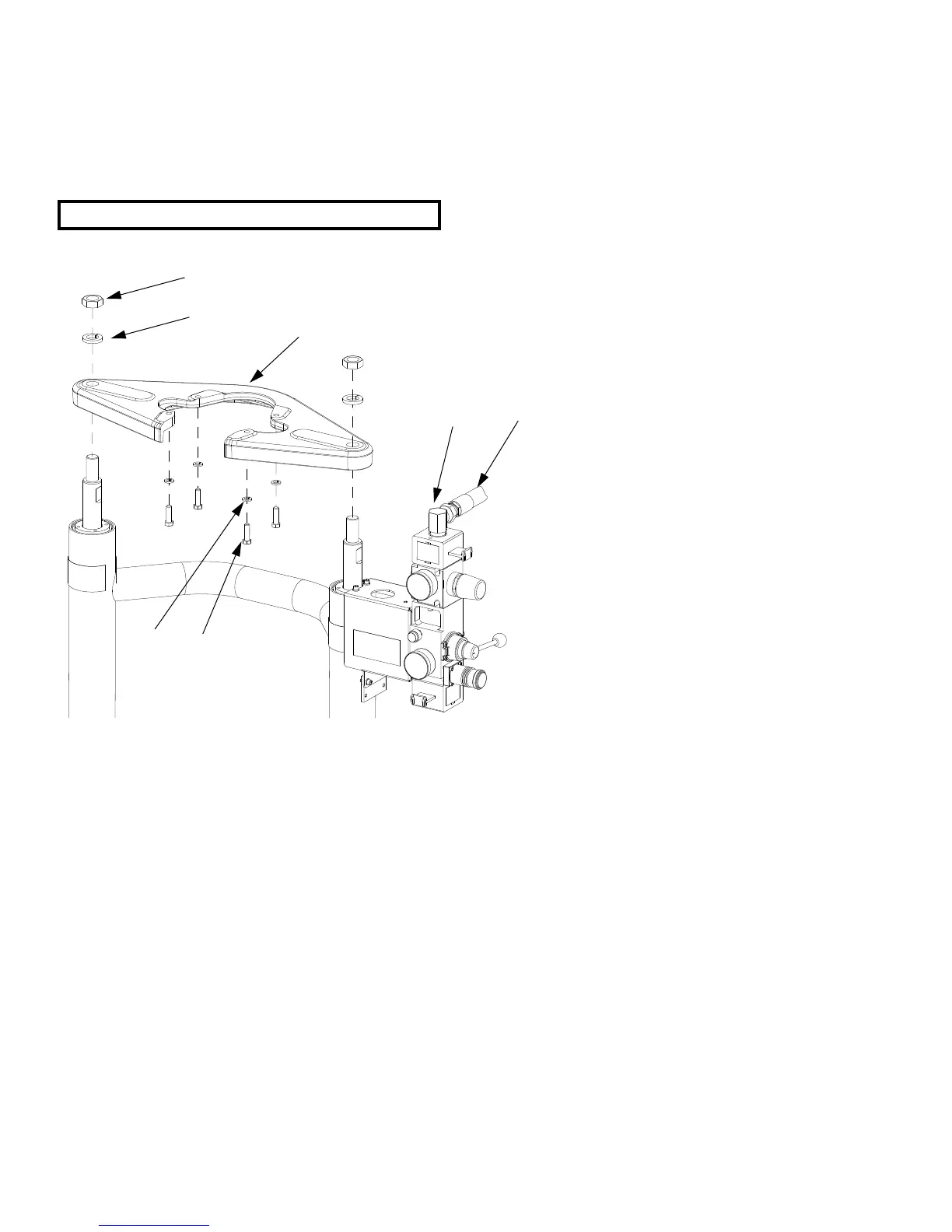

D60 Pump Mounts 257623 and 257624 for 5 Gallon (20 Liter), 8
Gallon (30 Liter), and 16 Gallon (60 Liter) Platens
‡ For 257623 only.
✿ For 257624 only.
✖ Not shown.
383
382
381
384
385
387
386
r_255648_313527_15a
Note: See page 38 for kit configuration table.
Ref. Part Description Qty.
381 ‡ BRACKET, shelf, NXT2200 1
✿ BRACKET, shelf, NXT3400 and
NXT6500
382 101533 WASHER, spring lock 2
383 101535 NUT, hex 2
384 100133 WASHER, lock 4
385 C38372 SCREW, cap, hex head 4
386 105281 FITTING, 3.4 nptf x 3/4 npsm, 45° 1
387 C12034 HOSE, coupled 72 in. 1
388✖ SLEEVE, protective; 72 in. 1
389✖ STRAP, tie 2
390✖ HOLDER, cable tie, rotating 2
391✖ 160327 FITTING, 3/4 nptf x 3/4 npsm, 90° 1
To Next Page
