Graco GM 5000 User Manual

Upright Cart: Model 220–886, Basic sprayer
Model 231–052, Complete sprayer*
LoBoy Cart: Model 222–488, Basic sprayer
Model 231–085, Complete sprayer*
* Complete sprayers include 50 ft (15 m) 1/4 in. I.D. hose, 3 ft (0.9 m) 3/16” I.D. whip hose,
and Contractor gun with RAC IV DripLess  T ip Guard and 517 SwitchT ip 
0136

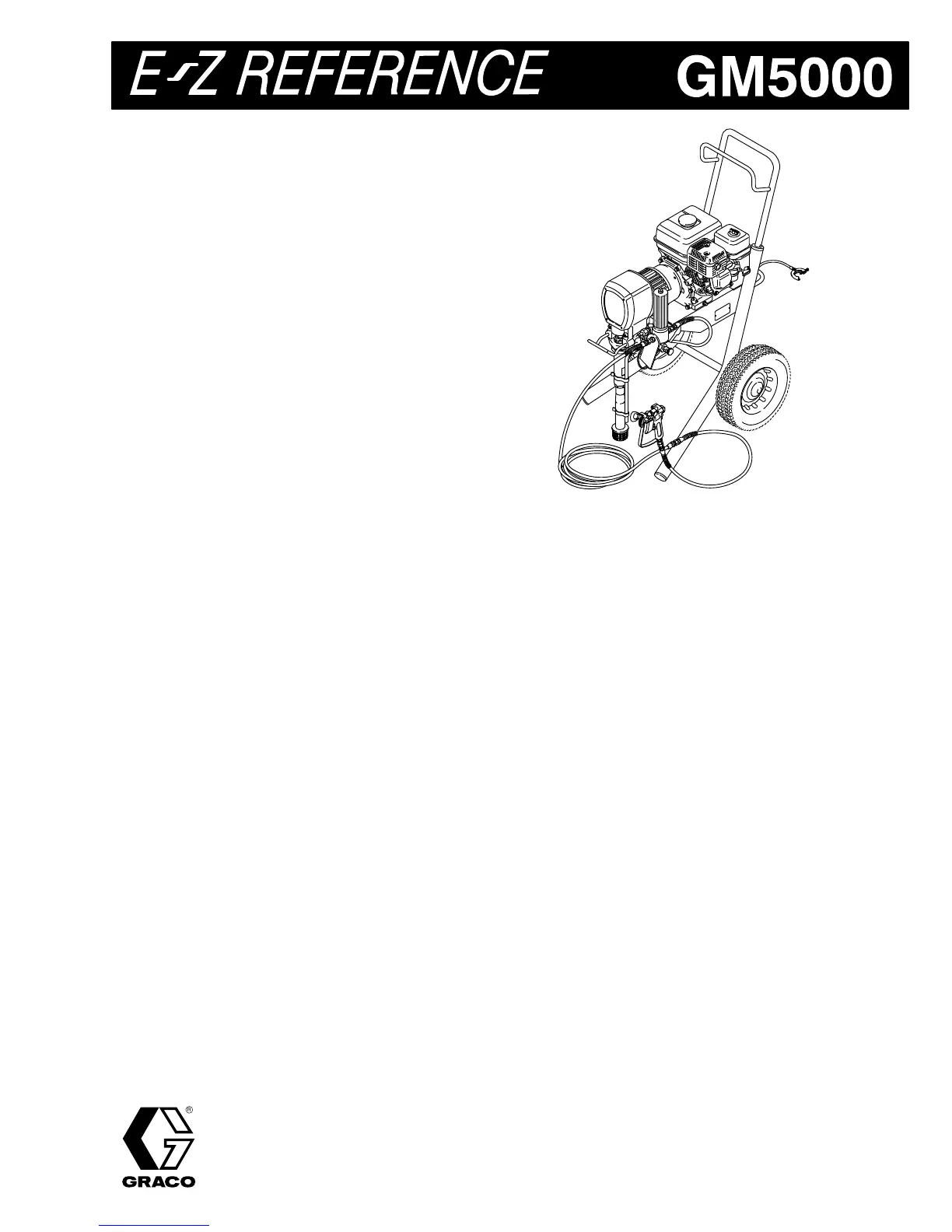

Model 231–052 shown
Technical Data
Maximum W orking Pressure 3000 psi (210 bar) . . . . . .
Gasoline Engine 5.5 horsepower , Honda . . . . . . . . . . . .
Sound Data: Sound Power Level 105 dB(A)* . . . . . . . .
* measured at 3.1 ft. (1 m) per ISO 3744
Fuel T ank Capacity 0.95 gal (3.6 liter) . . . . . . . . . . . . . . .
Delivery 1.25 gpm (4.7 lpm). . . . . . . . . . . . . . . . . . . . . . . .
Cycles Per Gallon (Liter) 104 (27.5). . . . . . . . . . . . . . . .
Tip Size 1 gun with 0.035 in. tip . . . . . . . . . . . . . . . . . . .
2 guns with 0.025 in. tip
3 guns with 0.019 in. tip
with latex at 2000 psi (138 bar)
Pump Inlet Size 3/4 npt(m). . . . . . . . . . . . . . . . . . . . . . . .
Inlet Paint Strainer 16 mesh (1 190 micron) . . . . . . . . . . .
reusable stainless steel screen
Fluid Filter Outlet Size 1/4 npsm(m). . . . . . . . . . . . . . . .
Fluid Filter Material aluminum, stainless . . . . . . . . . . . . .
steel, carbon steel, 60 mesh (250 micron)
reusable SST screen
Pump Material stainless steel, carbon steel . . . . . . . . . .
Delrin, polyurethane
Packing Material leather , UHMW polyethylene . . . . . . .
Spray Hose Requirements grounded,. . . . . . . . . . . . . . .
50 ft (15 m) minimum, 1/4 in. I.D., non-wire
braid, spring guards on both ends
Application
Sprays a full range of architectural coatings, including
heavy mastics. Do not use with solvents such as
methylene chloride or other HHCs.
For information on converting your sprayer to one that
can safely handle fluids containing HHCs, contact
Graco Product Service at 1–800–328–021 1.
U.S. patent pending.
Dimensions
Upright Cart LoBoy Cart
Height 31.6 in. (803 mm) 26.5 in. (673 mm) . . . . . . .
Length 30.5 in. (775 mm) 36 in. (914 mm) . . . . . . .
Width 22.5 in. (572 mm) 19 in. (483 mm) . . . . . . . .
Weight 135 lb (61 kg) 130 lb (58.5 kg) . . . . . . .
GRACO INC. P .O. BOX 1441
MINNEAPOLIS, MN 55440–1441
COPYRIGHT 1995, GRACO INC.
PRINTED IN U.S.A. 3Z7–847 August 1995
TO PLACE AN ORDER , call
1–800–367–4023 T oll Free
FOR TECHNICAL ASSIST ANCE , call
1–800–543–0339 T oll Free
