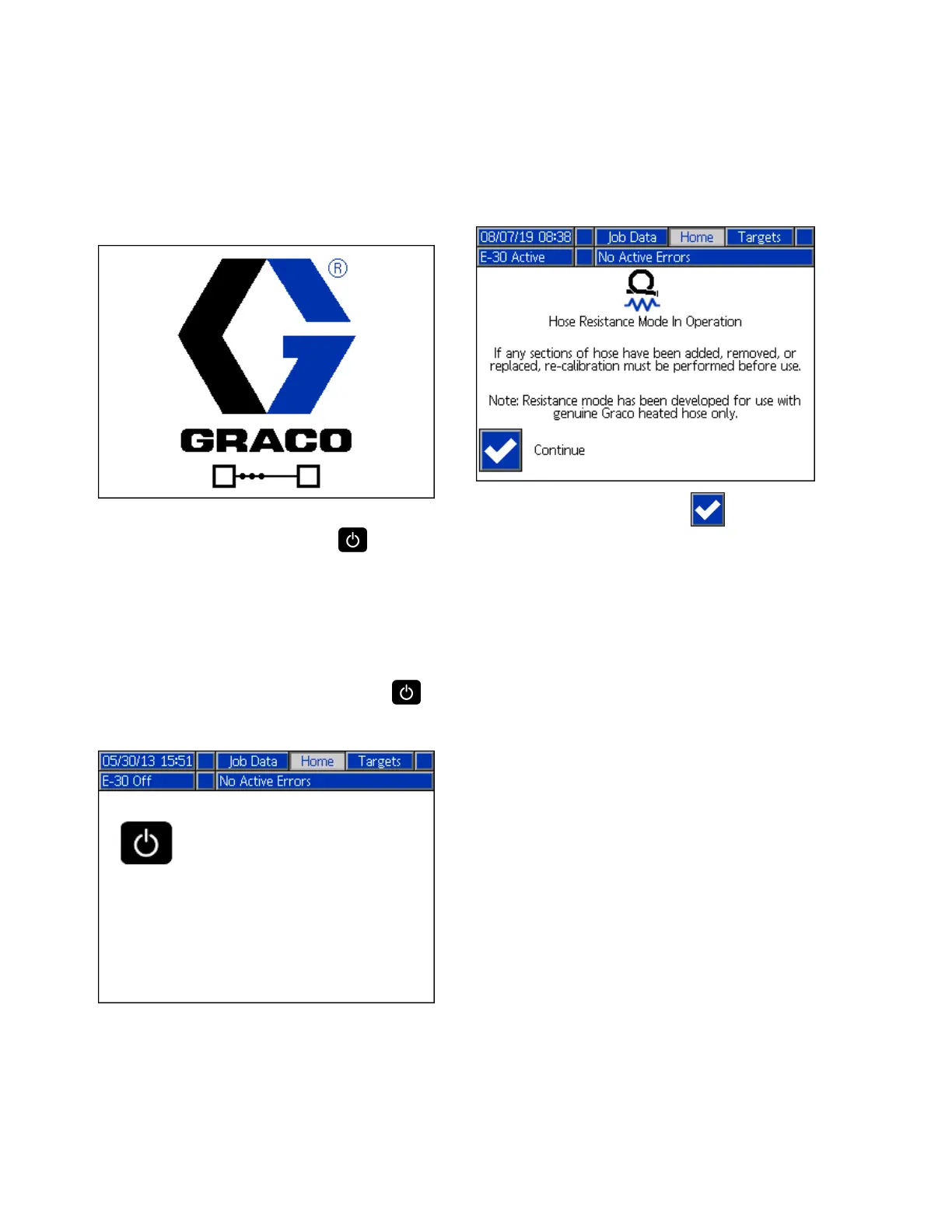

Whenmainpoweristurnedonbyturningthe
mainpowerswitch(MP)totheONposition,
thepowerupscreenwillbedisplayeduntil
communicationandinitializationiscomplete.
Thenthepowerkeyiconscreenwilldisplayuntil
theADMpoweron/offbutton(A)
ispressed
forthersttimeaftersystempower-up.
TobeginusingtheADM,themachine
mustbeactive.Toverifythemachine
isactive,verifythattheSystemStatus
IndicatorLight(B)isilluminatedgreen,see
AdvancedDisplayModule(ADM),page18.If
theSystemStatusIndicatorLightisnotgreen,
presstheADMPowerOn/Off(A)button
.
TheSystemStatusIndicatorLightwillilluminate
yellowifthemachineisdisabled.
IfHoseResistanceModeisenabled,areminder
promptwillappearwhentheADMbecomes
active.
PresstheContinuesoftkeytoclearthe
screen.
Performthefollowingtaskstofullysetupyour
system.
1.SetpressurevaluesforthePressure
ImbalanceAlarmtoactivate.See
SystemScreen1,page36.
2.Enter,enable,ordisablerecipes.See
RecipesScreen,page37.
3.Setgeneralsystemsettings.See
AdvancedScreen1—General,page35.
4.Setunitsofmeasure.See
AdvancedScreen2—Units,page35.
5.SetUSBsettings.See
AdvancedScreen3—USB,page35.
6.Settargettemperaturesandpressure.See
Targets,page40.
7.SetcomponentAandcomponentBsupply
levels.SeeMaintenance,page40.
