Graco REACTOR E-XP2 Operation

AdvancedDisplayModule(ADM)Operation
System System
System
1 1
1

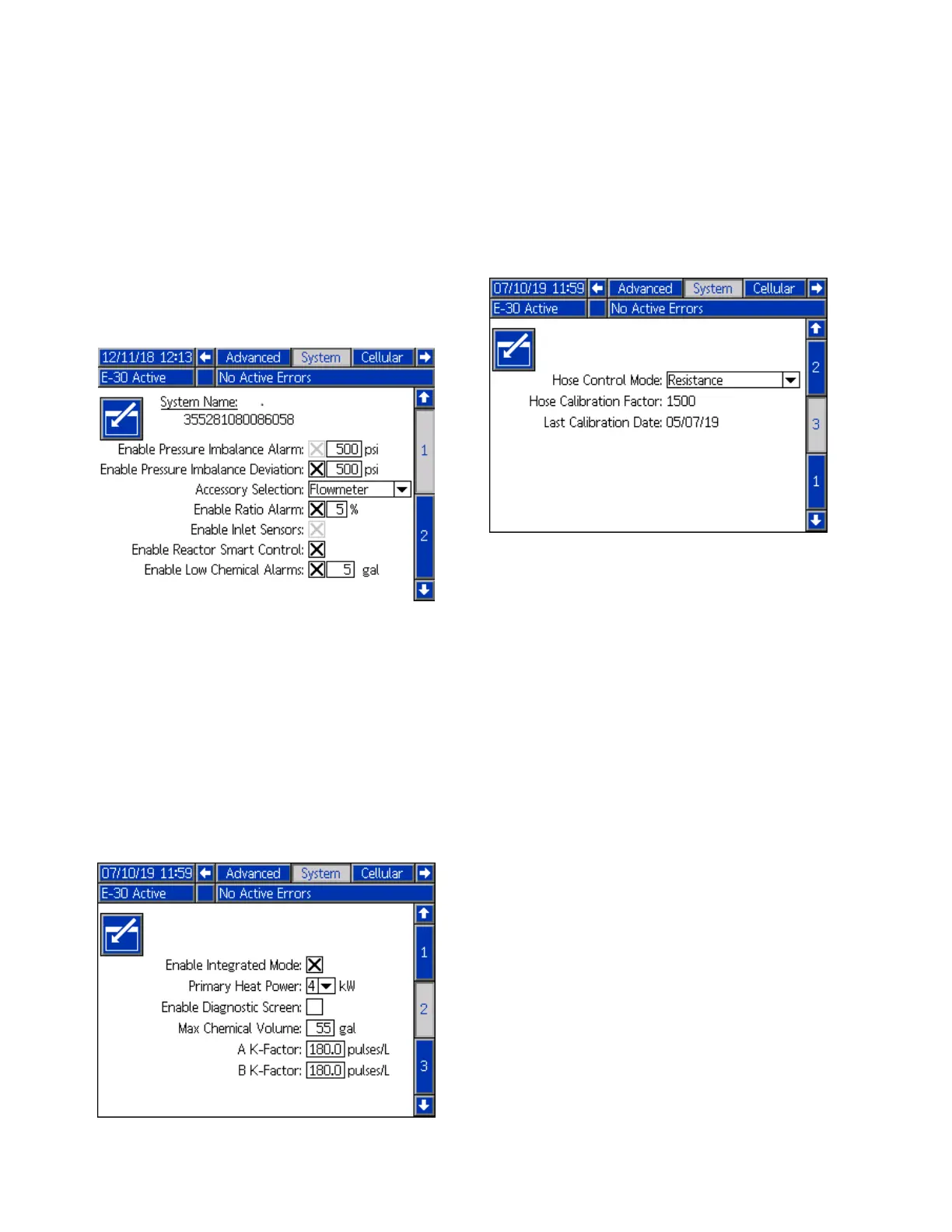

Usethisscreentoenablepressureimbalance
alarmsanddeviations,setpressureimbalance
values,enableinletsensors,andenablelow
chemicalalarms.
Selectaccessoriesusingthisscreen.Iftheow
meteraccessoryisinstalled,usethisscreento:
•Enableratioerrors.
•Settheratioalarmpercentage.
•EnableReactorSmartControl.
System System
System
2 2
2
UsethisscreentoenableIntegratedModeand
thediagnosticscreen.Thisscreencanalsobe
usedtosettheprimaryheatersizeandthe
maximumdrumvolume.
IntegratedModeallowstheReactor2tocontrol
anIntegratedPowerStation,iftheIntegrated
PowerStationisinstalled.Iftheowmeter
accessoryisinstalled,usethisscreentosetthe
k-factors.K-factorsareprintedontheow
meterserialnumberlabels.
System System
System
3 3
3
UsethisscreentoselectHoseControl
Modeandperformcalibration.See
HoseControlModes,page52forinformation
onthedifferenthosecontrolmodes.
HoseResistanceModecanonlybeused
ifacalibrationfactorisstored.See
CalibrationProcedure,page56.
36 333023U
