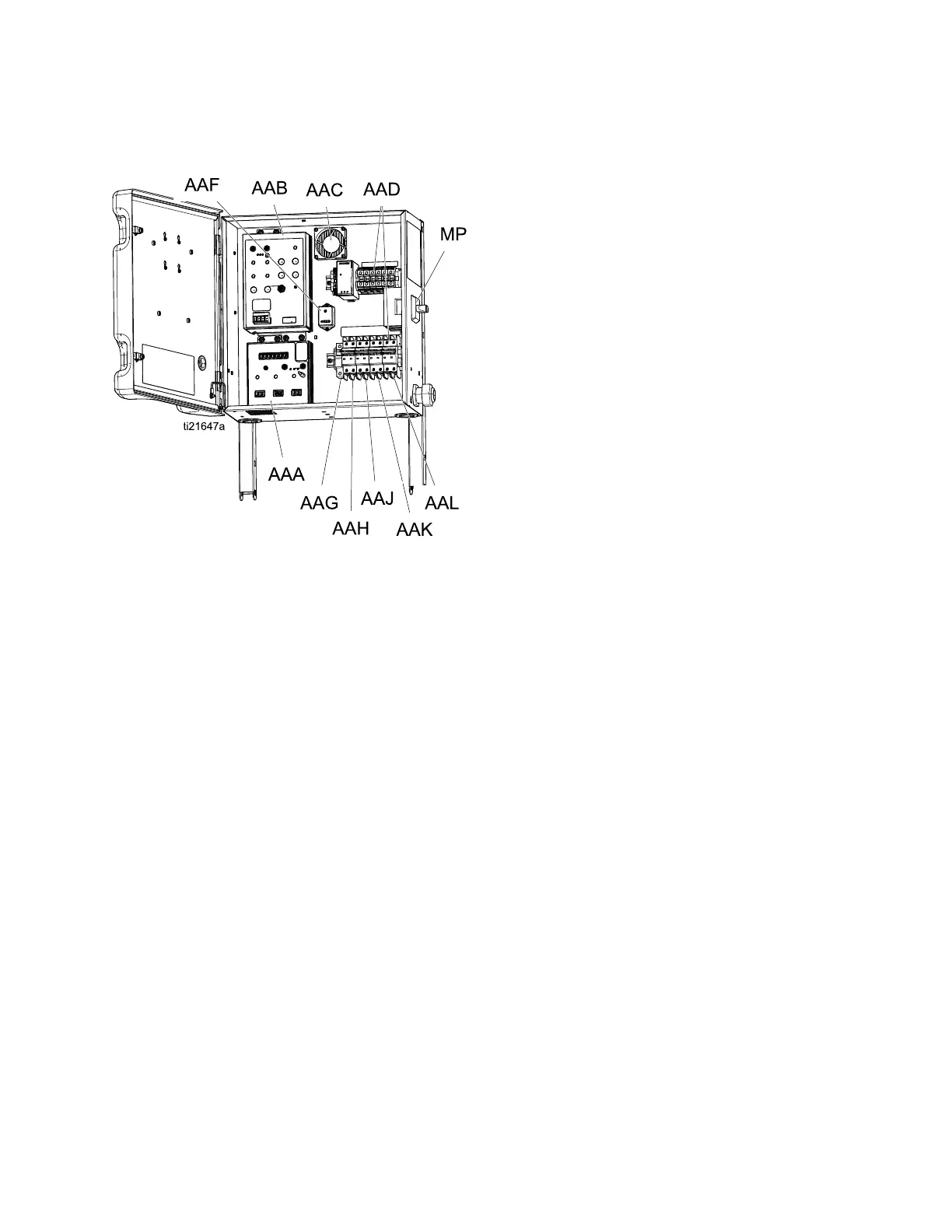

ElectricalEnclosure
Electrical Electrical
Electrical
Enclosure Enclosure
Enclosure
Key Key
Key
AAA
TemperatureControlModule(TCM)
AAB
MotorControlModule(MCM)
AAC
EnclosureFan
AAD
WiringTerminalBlocks
AAE
PowerSupply
AAF
SurgeProtector
AAG
HoseBreaker
AAH
MotorBreaker
AAJ
ASideHeatBreaker
AAK
BSideHeatBreaker
AAL
TransformerBreaker
AAM
TerminalGround
MP
MainPowerSwitch
333023U 23
