Installation
3A8626C 11

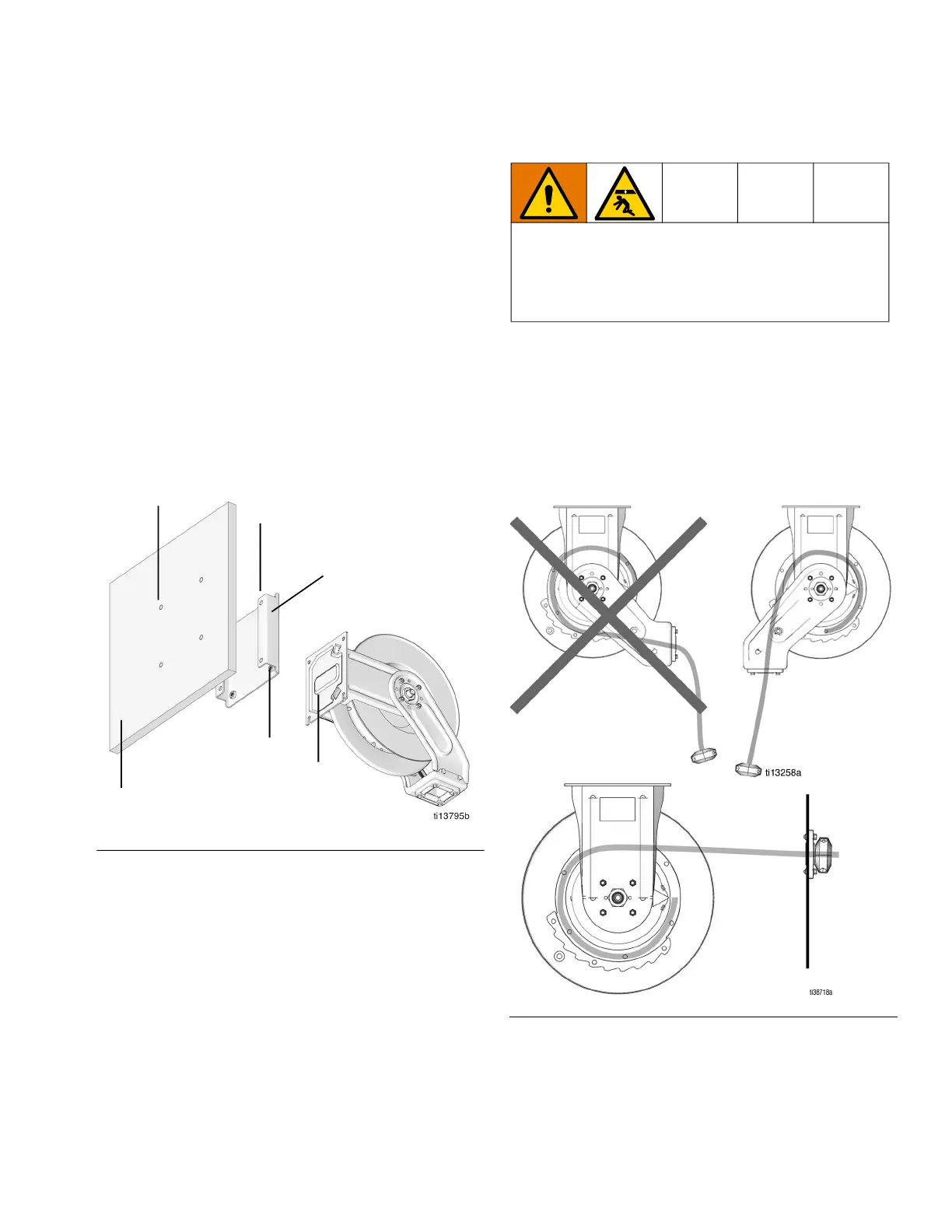

Installation Mounting Options
Reel Bank Mounting Location’s Selection
A Mounting Adapter Kit is available for installing an XDX
Series Hose Reel in the same location that a Series 500
Hose Reel was previously installed. Graco Kit No.
24A224. See F
IG. 5, and page 41.
A = Original Series 500 holes in mounting surface.
B = Holes on the bottom of the adapter bracket,
pre-drilled to match the Original Series 500 hole
configuration (A).
C = Holes on the top of the adapter bracket, pre-drilled
to match the new XDX Series Hose Reel base.
All Mountings
NOTE: Always use all four (4) large flat washers with
four (4) bolts to mount the hose reel pedestal to any
surface.
NOTE: The reels perform best when the arm allows the
hose to pull straight off of the spool (F
IG. 6).
FIG. 5
A
B
Mounting
Surface
XDX Base
Adapter 24A224
C
To reduce the risk of injury, be sure that the mounting
surface is strong enough to support the reels, weight
of the lubricants, and the stress caused by hard pulls
on the hoses. See Technical Specifications, page
51, for weights of the hose reel assemblies.
FIG. 6
Adapter 24A224
