Dimensions
3A8626C 45

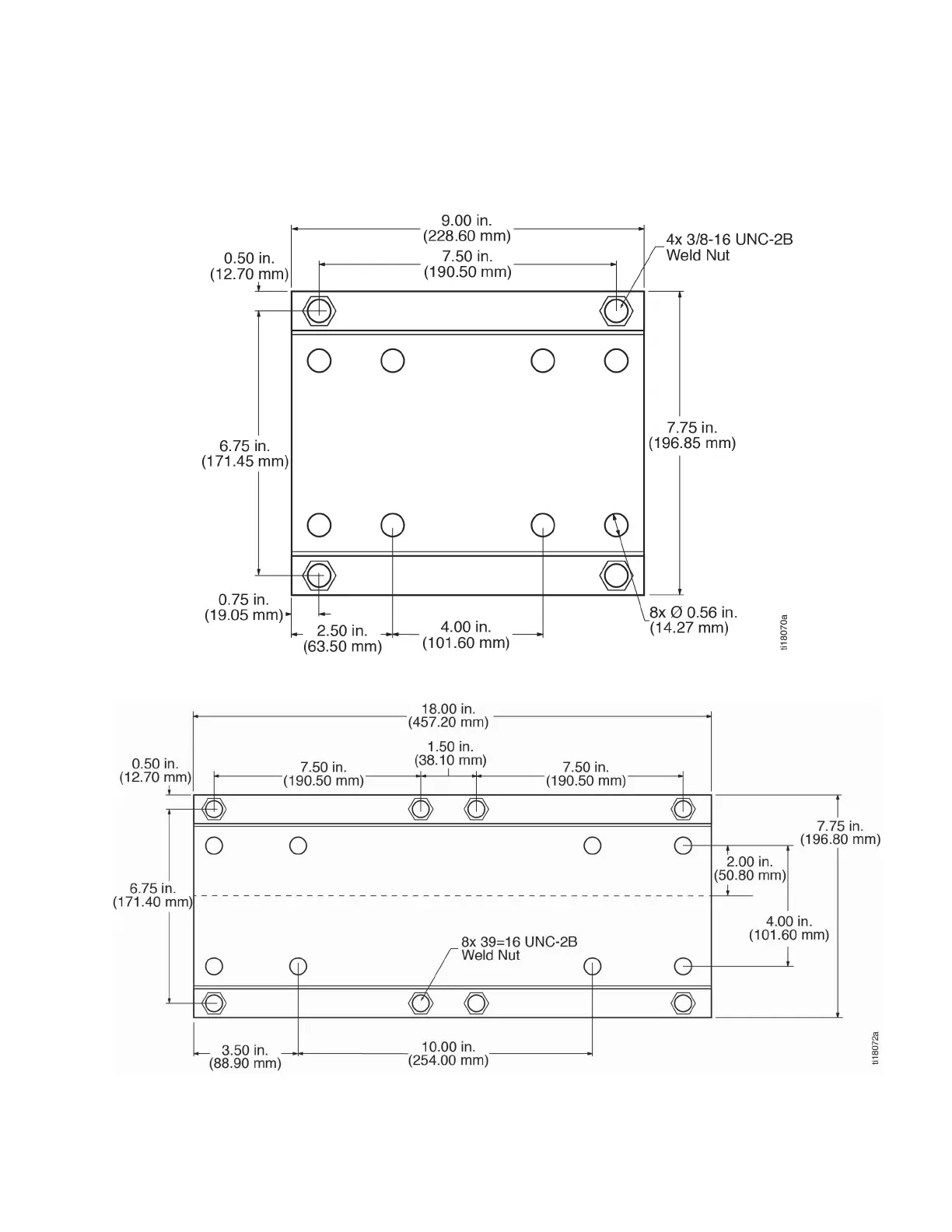

Mounting Channel Dimensions
(Side dimension for all kits, page 50)
1 Reel Base - Included in Kits 24A934/203521 - SDX Models
2 Reel Base - Included in Kits 24A935/203522 - SDX Models
