Graco SDX Series User Manual

Installation
12 3A8626C
All Models
Select the reel bank mounting location (FIG. 7).
• For high ceilings, suspend a suitable support
structure for the reels, so the hoses will be long
enough to reach the service area.
• A reel bank mounted in a one-lift service bay should
be at least 6 ft (1.9 m) from the center line of the lift.
• A reel bank mounted in a two-lift service bay should
be mounted an equal distance between the lifts.
• A bank of all motor oil reels should be mounted
about 5 ft (1.5 m) from the center of the lift, toward
the front of the lift rails.
SDX or XDX Models Only
NOTE: The reference letters in the following instructions
refer to F
IG. 8 and FIG. 26.
1. Determine if the position of the roller guide arm (a)
(F
IG. 8) is in the desired installation position. If it is
not in the desired installation position, skip to Step
2.
The hose reel is factory-assembled and shipped
with the roller guide arm (a) in either the AA or EE
position (F
IG. 8).

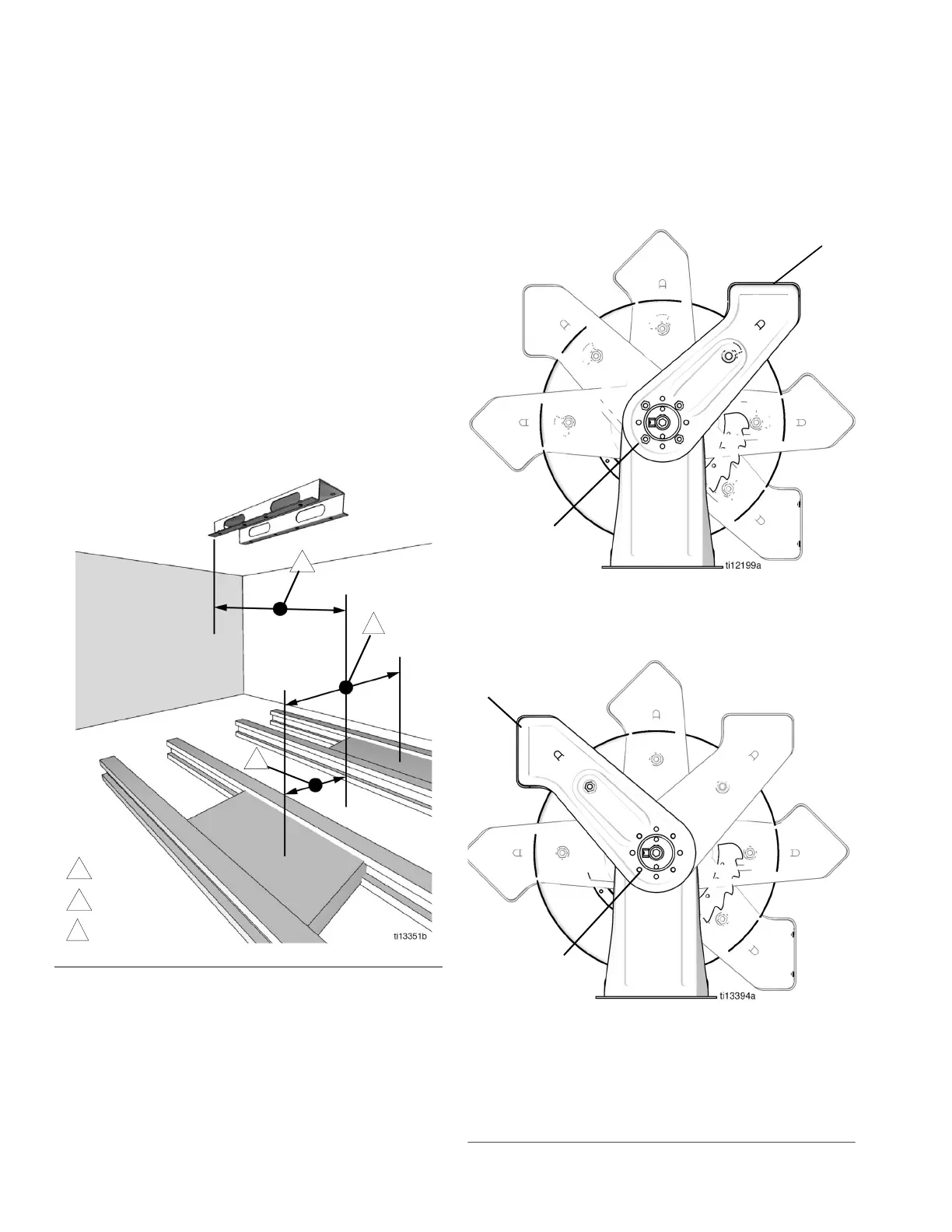

FIG. 7
3
1
2
6 ft (1.9 m) minimum for one (1) lift
Center between two lifts
1
2
3
5 ft (1.5 m) minimum for motor oil
FIG. 8
AA Shipping Position
EE Shipping Position
AA*
BB
CC
DD
EE
FF
b
a
AA
BB
CC
DD
EE**
FF
b
a
*SDX Models without an H or J in the fifth number
position of the model number are shipped with the
roller guide arm (a) in the AA position.
**SDX Models with an H or J in the fifth number
position of the model number are shipped with the
roller guide arm (a) in the EE position.
**All XDX Models are shipped with the roller guide
arm (a) in the EE position.
