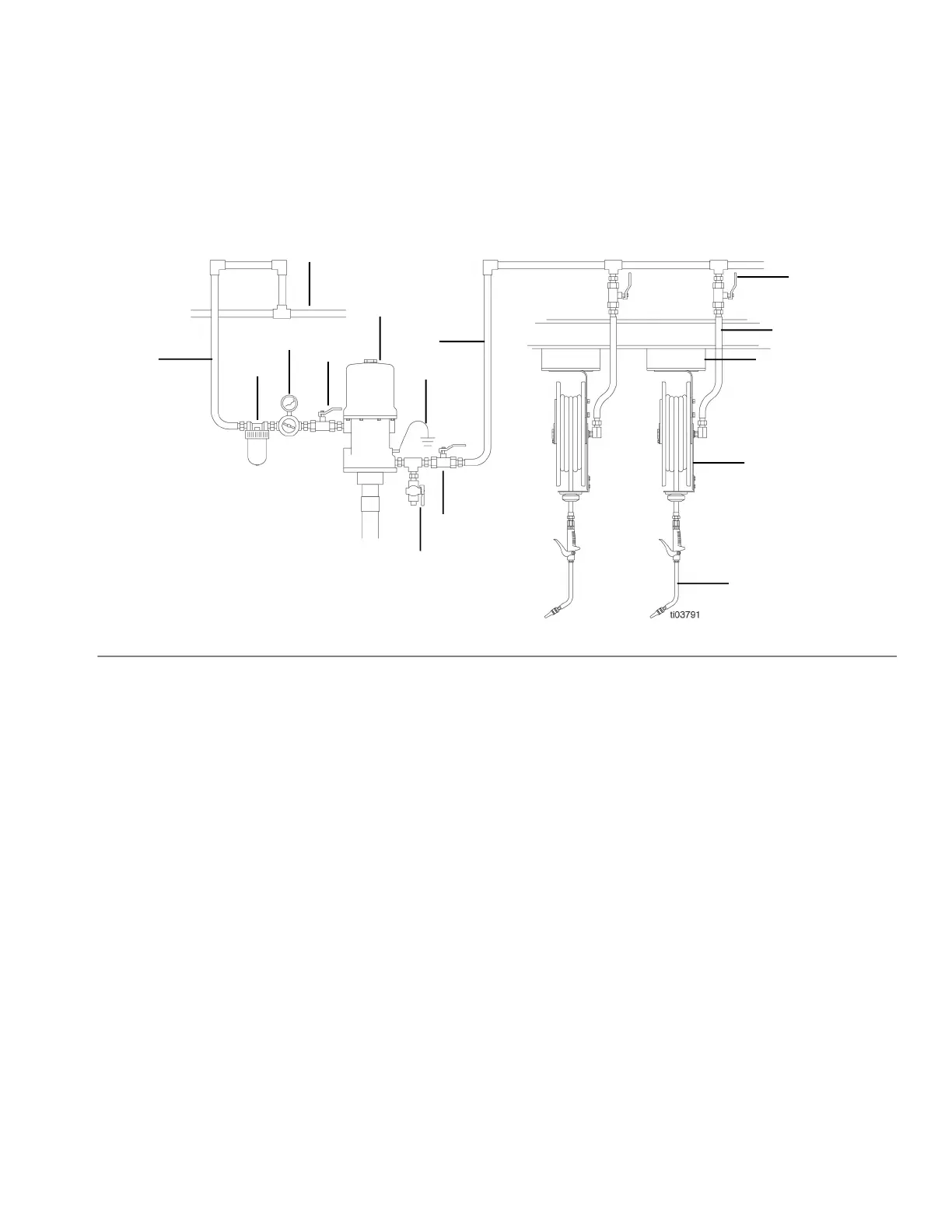

Typical Installation
3A8626C 7
Typical Installation
Overhead-Mounted Hose Reel
Key:
A Main Air Supply Line
B Pump Air Supply Line
C Air Filter
D Air Regulator
E Bleed-type Master Air Valve (required)
F Pump
G Pump Grounding Wire (required)
H Fluid Drain Valve (required)
J Fluid Shutoff Valve
K Fluid Line
L Hose Inlet Kit
M Hose Reel
N Dispense Valve
P Mounting Channel/Base
FIG. 1: Typical Installation
A
B
C
D
E
F
G
H
J
K
J
L
P
M
N
