Graco SDX Series User Manual

Dimensions
42 3A8626C

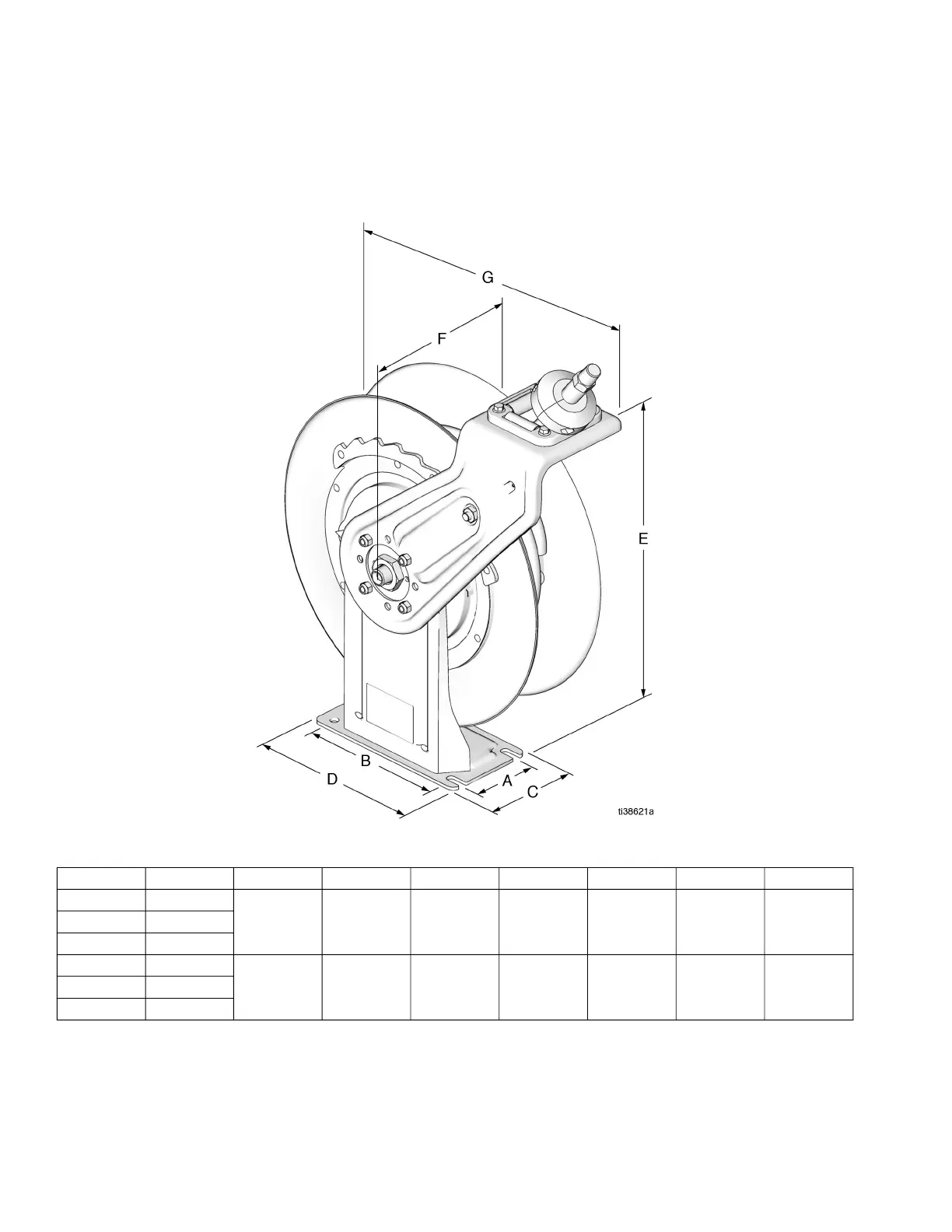

Dimensions
SDX Models
*Measurement taken from center to center of bolt slot/hole.
†Measurement taken from base to top of bolts.
◆Measurement taken from edge of spool to front of arm.
Pressure Size A B* C D E† F G◆
Low 10
3.5 in.
(89 mm)
7.5 in.
(191 mm)
4.7 in.
(119 mm)
9.0 in.
(229 mm)
19.5 in.
(495 mm)
7.0 in.
(178 mm)
17.1 in.
(434 mm)
Medium 10
High 10
Low 20
3.5 in.
(89 mm)
7.5 in.
(191 mm)
4.7 in.
(119 mm)
9.0 in.
(229 mm)
21.8 in.
(554 mm)
7.0 in.
(178 mm)
19.2 in.
(488 mm)
Medium 20
High 20
