Graco SDX Series User Manual

Installation
3A8626C 15
Ceiling Mount Without an I-Beam - Open
Channel (All Models)
• For SDX Model Reels Order Mounting Kit: 24A934,
24A935, 24A936, 24A937, 24A938, or 24A939.
• For XDX or XNX Model Reels Order Mounting Kit:
24A219, 24A220, 24A221, or 24A222.
• See Mounting Channel Dimensions, page 45.
1. Install the mounting channel (105) and base plate
(104) (SDX Models), as shown in F
IG. 11.
2. Slide the hose reel into the base plate (104) and
install the hold down plate (101), washer (103), and
the cap screw (102). Tighten the screw firmly (F
IG.
11).
3. When installing permanent supply lines above the
ceiling, drill 1.5 in. (38 mm) diameter holes through
the ceiling toward the inlet side of the reels.
4. Follow Steps 5 through 9, Ceiling Installations,
page 14 to complete installation.
SDX Models: Open Channel Mounting Kits XDX Models: Mounting Kits
FN Description
24A934
1 Reel
24A935
2 Reels
24A936
3 Reels
24A937
4 Reels
24A938
5 Reels
24A939
6 Reels
24A219
1 Reel
24A220
2 Reels
24A221
3 Reels
24A222
6 Reels
101 PLATE, hold down 1 2 3 4 5 6
102
SCREW, 3/8 in. -16
x 5/8 in.
5 10 15 20 25 30 4 8 12 24
103
WASHER, lock, 3/8
in.
5 10 15 20 25 30 4 8 12 24
104 BASE, reel 1 2 3 4 5 6
105
BASE, reel,
channel
1 1 1 1 1 1 1 1 1 1

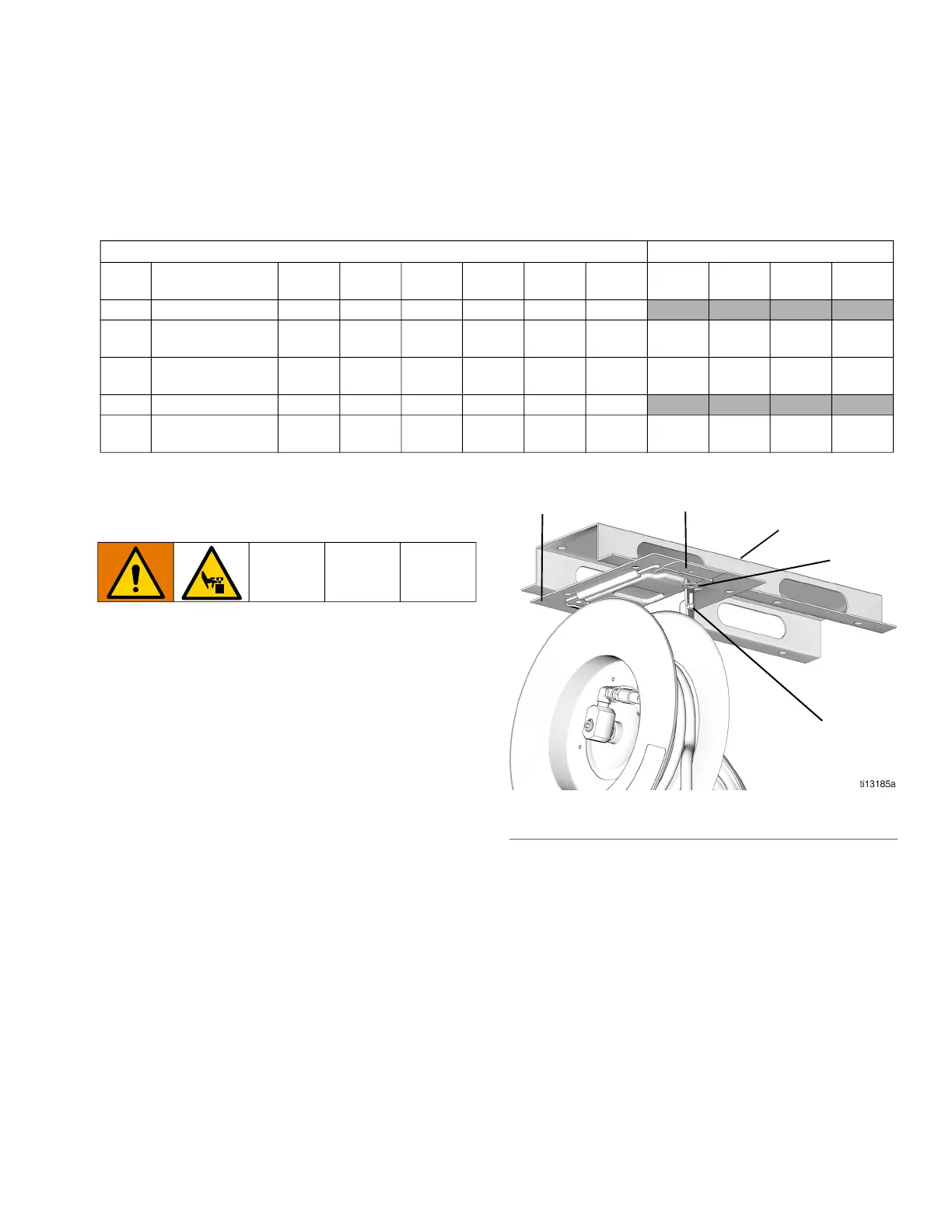

FIG. 11
104
105
102
103
101
