Installation
3A8626C 17
Wall Installations
• For SDX Model Reels Wall Mounting Bracket Kit
With No Channel order: 24H193.
• For SDX Model Reels Open Channeling Mounting
Kit order: 24A934, 24A935, 24A936, 24A937,
24A938, or 24A939.
• For XDX or XNX Model Reels Mounting Kit order:
24A219, 24A220, 24A221, or 24A222.
1. Adjust the guide arm to the desired position, see
F
IG. 8, page 12.
2. Select the wall mounting location and style for the
reel bank.
NOTE: The base plate (104) can be directly mounted to
the wall for easier installation and removal of the hose
reel for servicing (F
IG. 13).
a. For mounting the reel directly to the wall, use
the provided template (B) to lay out the holes
for drilling (F
IG. 13).
b. For mounting with kit 24H193, mount the base
plate (104) to the wall, slide the hose reel onto
the base plate (104), then install the hold down
plate (101), the washer (103), and the cap
screw (102). Tighten the screw firmly (F
IG. 13).
c. For mounting with kits 24A934-24A939, mount
the channel (105) to the wall, mount the base
plate (104) to the channel (105), slide the hose
reel onto the base plate (104), then install the
hold down plate (101), the washer (103), and
the cap screw (102). Tighten the screw firmly
(F
IG. 13).
d. For mounting with kits 24A219-24A222, mount
the channel (105) to the wall, then mount the
hose reel to the channel (105) (F
IG. 14).
3. Slide the hose reel onto the base plate (104) then
install the hold down plate (101), washer (103), and
cap screw (102). Tighten the screw firmly (F
IG. 13).
SDX Models: Open Channel Mounting Kits XDX Models: Mounting Kits
FN Description
24A934
1 Reel
24A935
2 Reels
24A936
3 Reels
24A937
4 Reels
24A938
5 Reels
24A939
6 Reels
24A219
1 Reel
24A220
2 Reels
24A221
3 Reels
24A222
4 Reels
101 PLATE, hold down 1 2 3 4 5 6
102
SCREW, 3/8 in. -16
x 5/8 in.
5 10 15 20 25 30 4 8 12 24
103
WASHER, lock, 3/8
in.
5 10 15 20 25 30 4 8 12 24
104 BASE, reel 1 2 3 4 5 6
105
BASE, reel,
channel
1 1 1 1 1 1 1 1 1 1

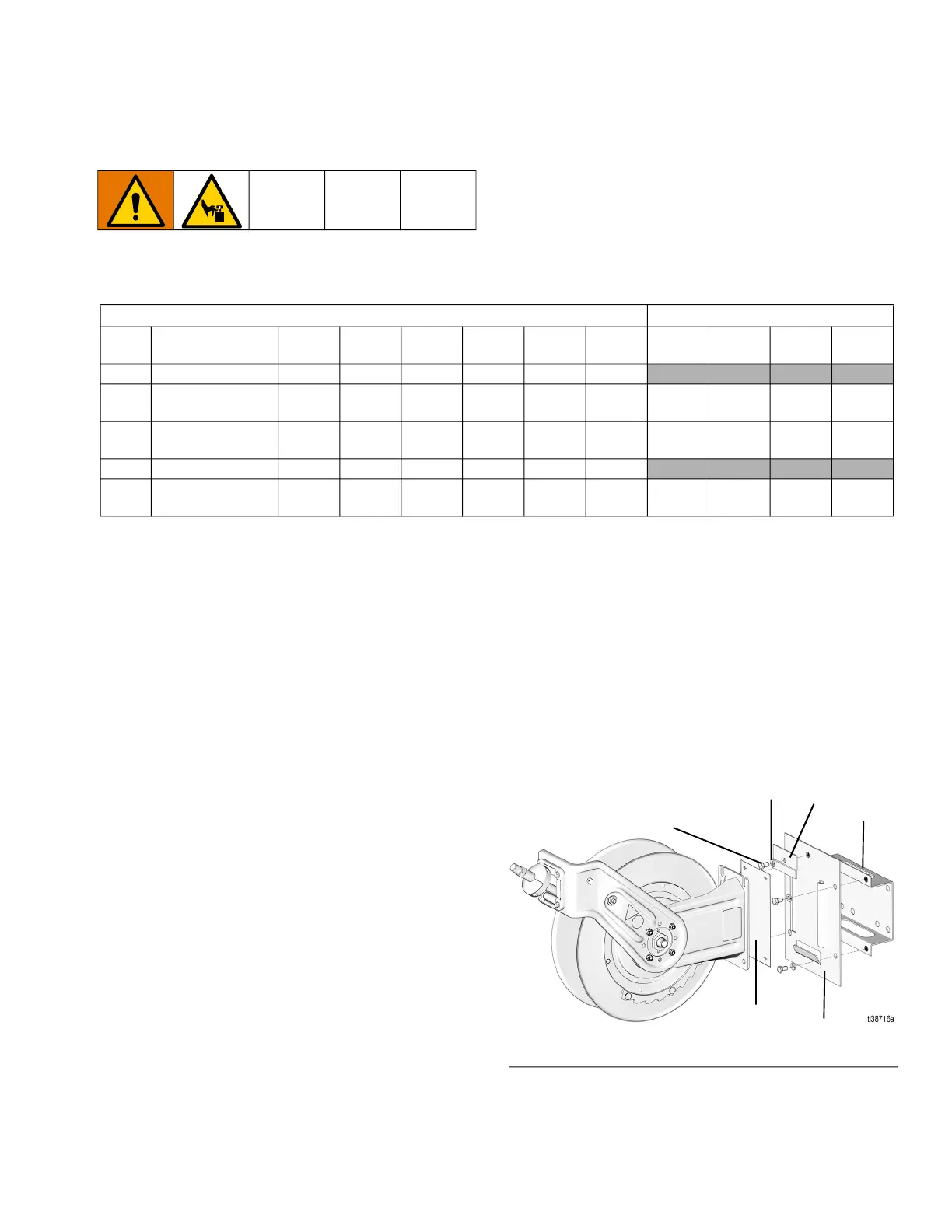

FIG. 13
104
B
102
103
101
105
