Graco SDX Series User Manual

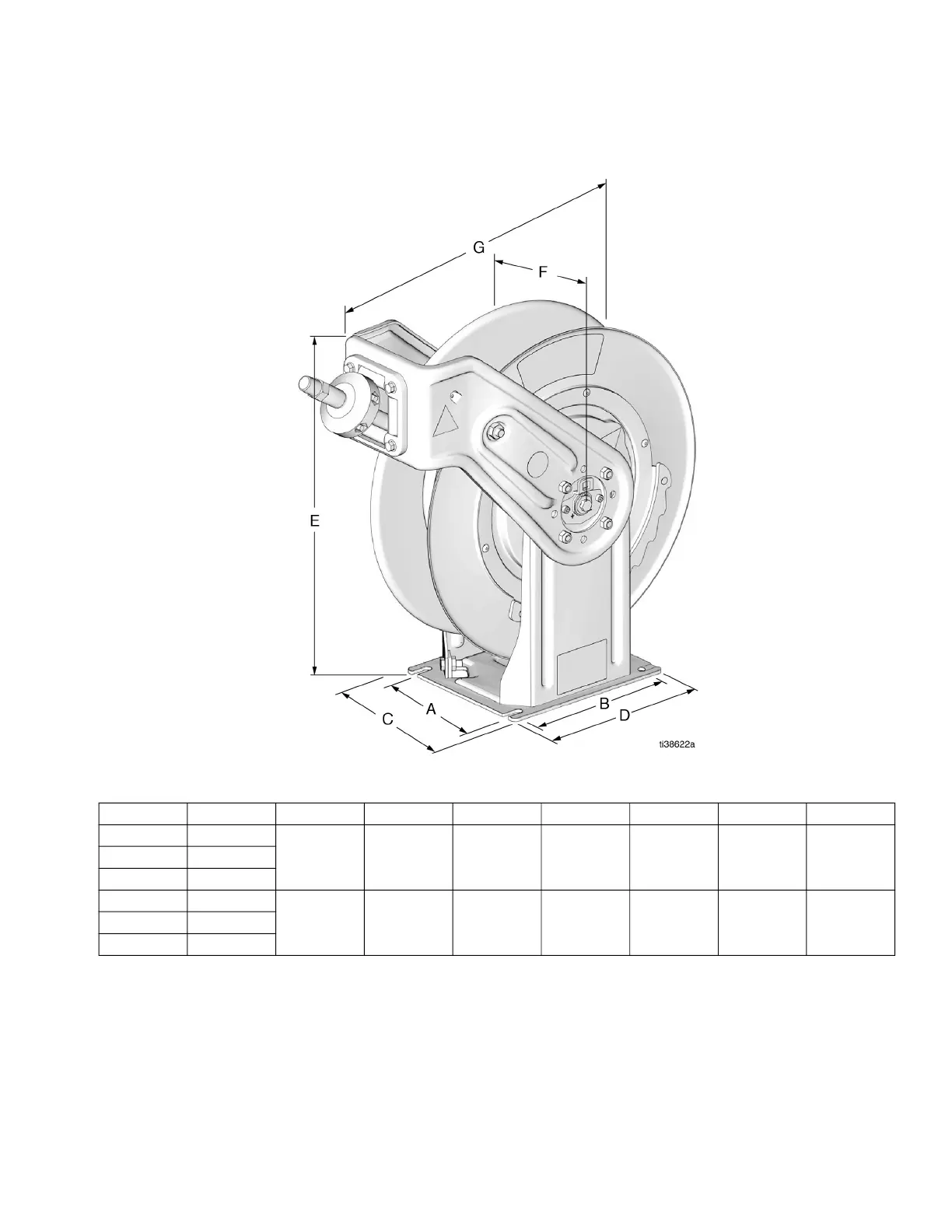

Dimensions
3A8626C 43
XDX Models
*Measurement taken from center to center of 11 mm bolt slot/hole.
†Measurement taken from base to top of bolts.
◆Measurement taken from edge of spool to front of arm.
Pressure Size A B* C D E† F G◆
Low 10
6.5 in.
(165 mm)
7.5 in.
(191 mm)
7.7 in.
(196 mm)
9.0 in.
(229 mm)
18.5 in.
(470 mm)
7.7 in.
(196 mm)
18.0 in.
(457 mm)
Medium 10
High 10
Low 20
6.5 in.
(165 mm)
7.5 in.
(191 mm)
7.7 in.
(196 mm)
9.0 in.
(229 mm)
21.0 in.
(533 mm)
7.7 in.
(196 mm)
20.0 in.
(508 mm)
Medium 20
High 20
