Graco SDX Series - Hose Reel Label

Kits
3A8626C 39
Hose Reel Label
.
NOTE:
The 1ST AND 2nd character in the model number determines the reel type category (F
IG. 27).
• SD= SDX Series
• XD = XDX Series
• XN = XNX Series
The 3rd character in the model number determines the reel pressure category (F
IG. 27).
• L = Low Pressure
• M = Medium Pressure
• H= High Pressure
The 6th character in the model number determines the color.
• A = white
• B = Blue
• C = Red (SDX Models only)
• D = Black
• F = Yellow
The 7th (last) character in the hose reel series is the Series Letter.

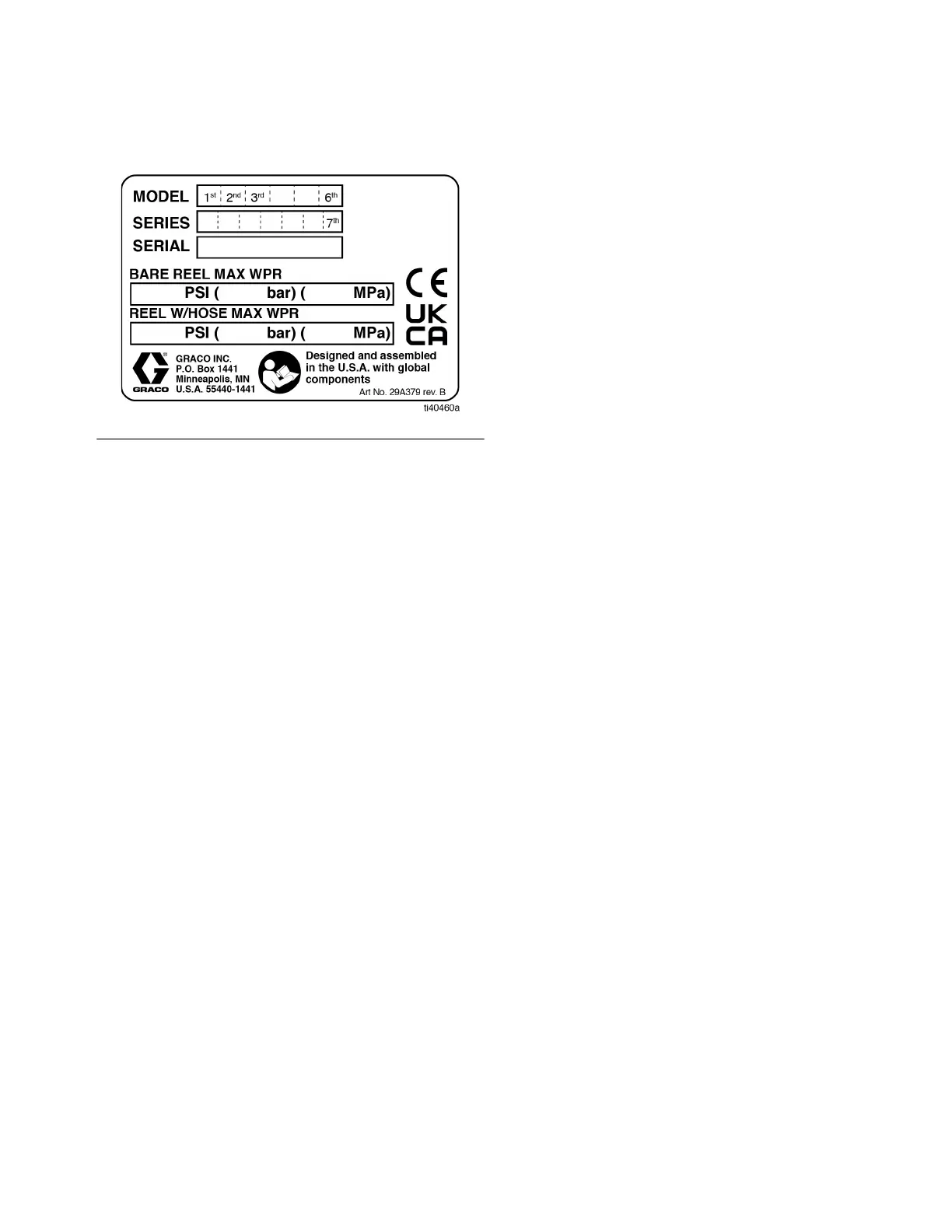

FIG. 27
