Graco SDX Series User Manual

Repair
24 3A8626C
Repair

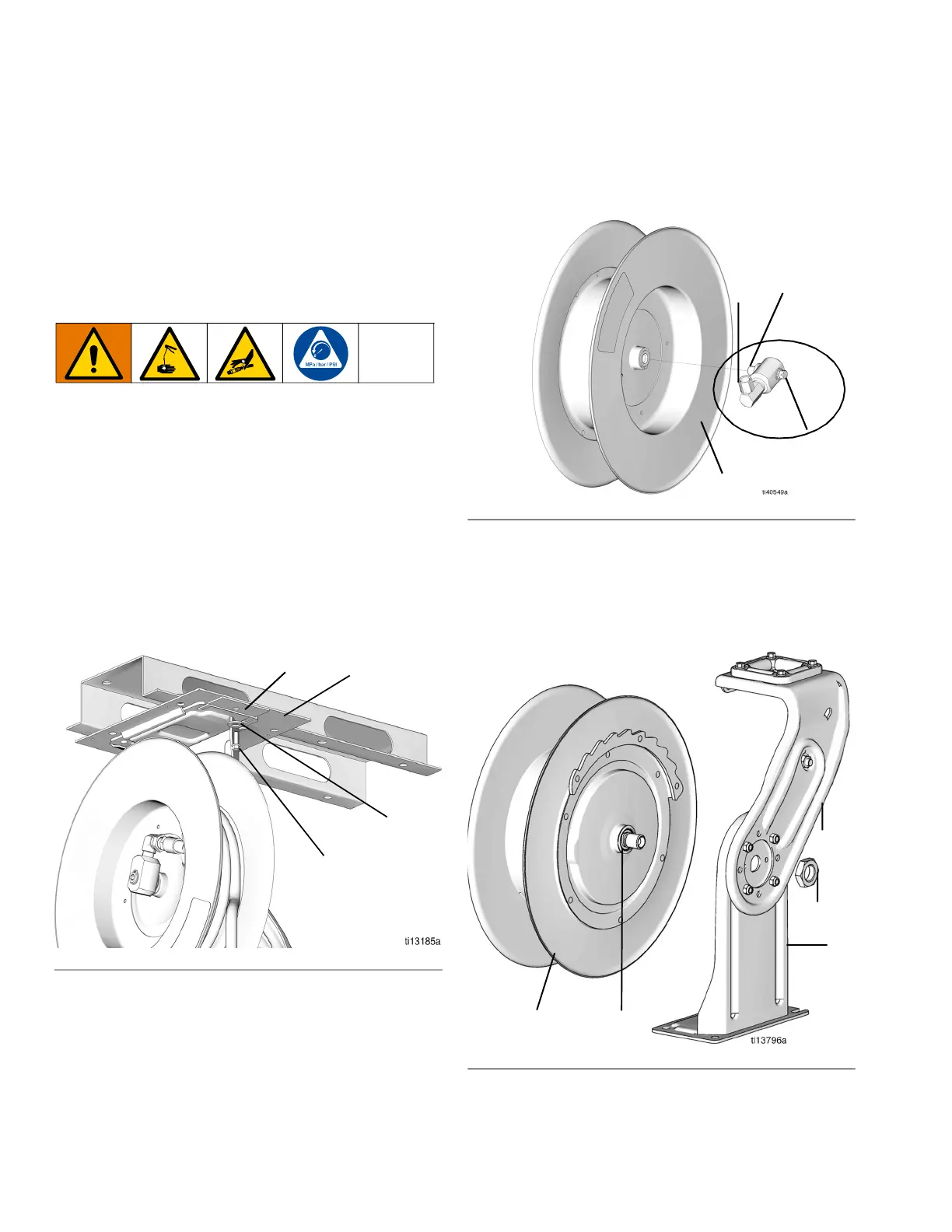

Replace Spool - Single Pedestal
SDX Models
A complete list of replacement Kits is available on
page 38. Use all of the new parts included in the kit.
1. Follow the Pressure Relief Procedure, page 9.
2. Completely remove all spring tension. See
Decrease Spring Tension information, page 20.
NOTE: The reference letters in the following instructions
refer to F
IG. 18 - FIG. 20.
3. Remove the cap screw (102), washer (103), and the
hold-down plate (101).
4. Slide the hose reel out of the base plate (104) (F
IG.
18).
5. Completely remove the hose from the swivel
assembly (6 - contains 6a, 6b, and 6c) and set it
aside for re-installation on the new spool (F
IG. 19).
6. Loosen and unscrew the swivel shaft (6c) to remove
the swivel assembly (6) from the spool (5) (F
IG. 19)
7. Remove and discard the nut (5g) (F
IG. 20).
8. Completely remove, as one piece, the guide arm
(18) and pedestal assembly (16) and set it aside for
re-installation on the new spool (F
IG. 20).
FIG. 18
103
101
102
104
FIG. 19
FIG. 20
5
6a
6c
6b shown
attached
to Swivel
shaft (6c)
18
5g
5j
16
5
