Installation
16 3A8626C
Ceiling Mount Directly to an I-Beam
without Drilling holes - All Models
NOTE: Order Mounting Bracket Kit: 204741 for open or
enclosed reels.
NOTE:
• Two kits are required when mounting one to three
reels.
• Three kits are required when mounting four to six
reels.
MOUNTING BRACKET KIT: 204741
1. Secure mounting brackets (D) to the channel. Use
two mounting brackets for each one to three
capacity mounting channel (105). Use three
mounting brackets for each four to six capacity
mounting channel (105).
2. Position the adjustable clamps (206) for the
mounting brackets over the I-Beam (A), then tighten
securely (F
IG. 12).
3. SDX Model Reels only: See F
IG. 11, page 15. Slide
the hose reel onto the base plate (104) then install
the hold down plate (101), washer (103), and cap
screw (102). Tighten the screw firmly.
4. If installing permanent supply lines above a ceiling,
drill 1.5 in. (38 mm) diameter holes through the
ceiling toward the inlet side of the reels.
5. Connect the inlet supply line to the inlet hose of the
reel. See Hose Installation, page 18.
NOTE: The hose reels listed in this manual do not come
with a Hose Inlet Kit.
6. Flush the hose following the instructions in Flush
the Equipment, page 9.
FN Description Qty
201 WASHER, lock, 1/2 in. 4
202 SCREW, 1/2 in. - 13 x 1 in. 2
203 SCREW, 1/2 in. 13 x 3/4 in. 2
204 NUT, 1/2 in. - 13 2
205 NUT, spring clamp (not shown) 2
206 CLAMP, beam 2
207 CHANNEL, strut 1

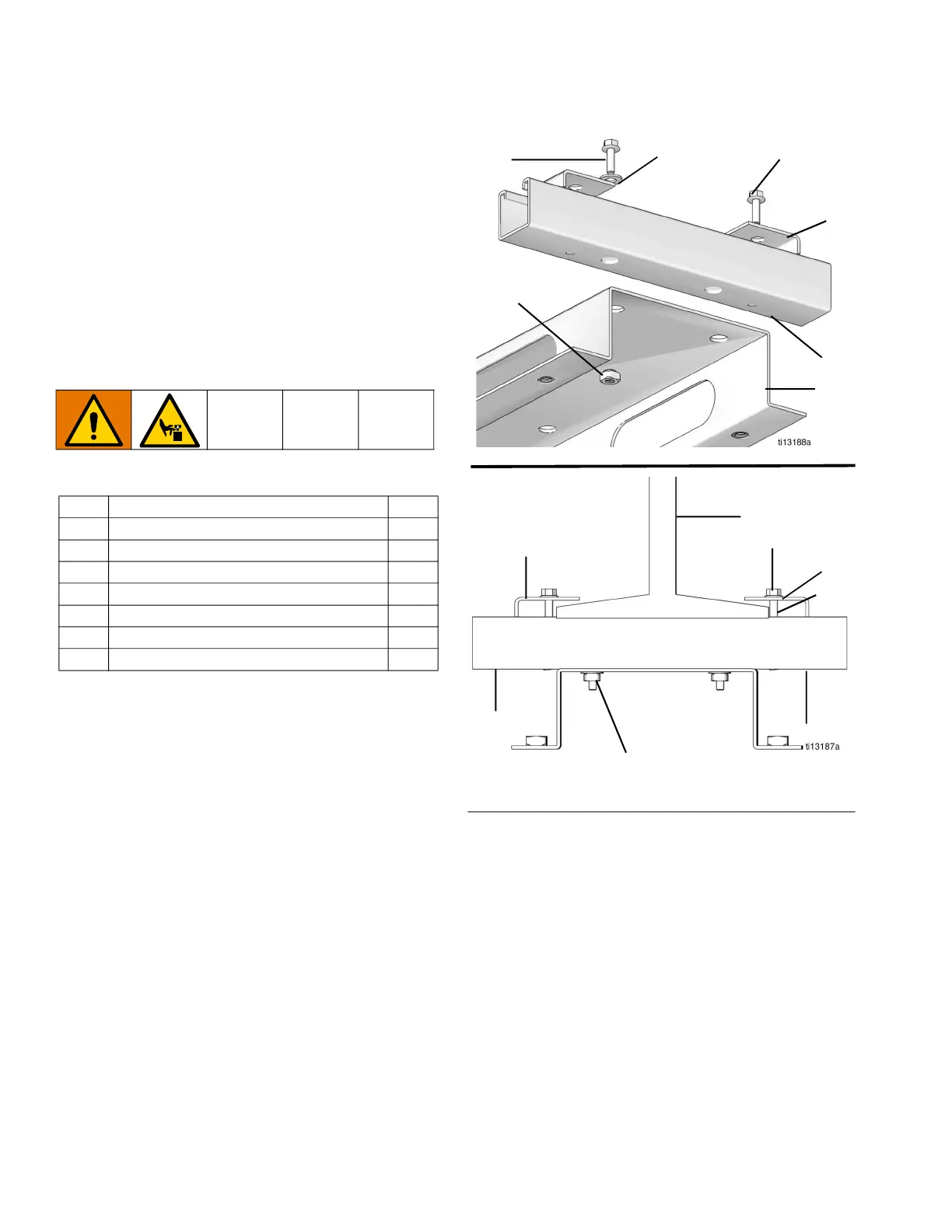

FIG. 12
204
206
202
203
201
105
D
A
D
201
201 / 202 / 204
203
205
206
207
