Graco SDX Series User Manual

Installation
3A8626C 13

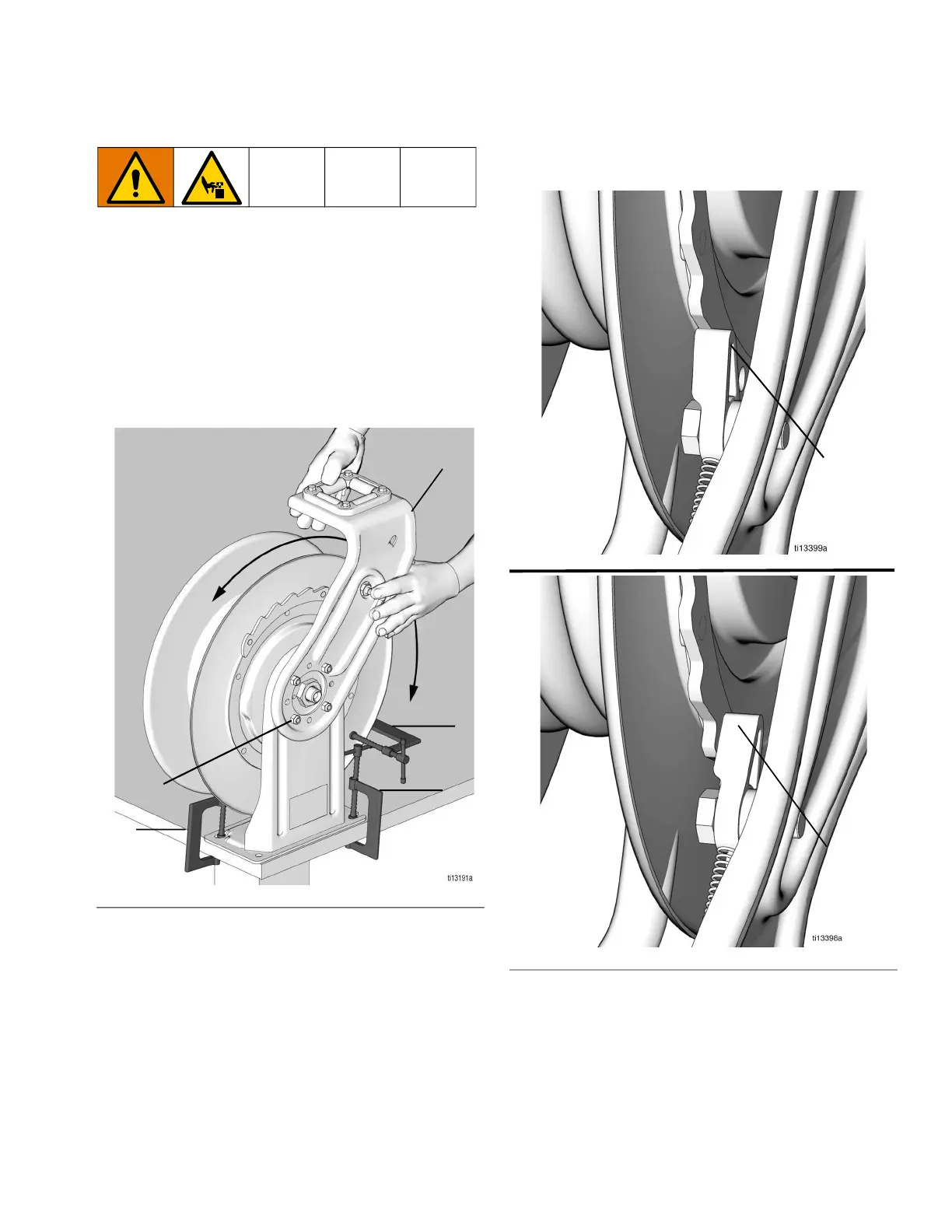

2. To reposition the roller guide arm (a) to a position
other than Shipping Position AA or EE:
a. Secure the reel to a solid surface with
C-clamps (C) (F
IG. 9).
b. Attach a C-clamp (D) to the reel flange to
prevent the reel from unintentionally becoming
unlatched and spinning freely (F
IG. 9).
c. Remove the nuts (b) from each side and rotate
arm (a) to the desired position.
NOTE: SDX Model Reels have four (4) nuts, and
XDX Model Reels have eight (8) nuts (four on each
side).
d. Check the pawl to make sure it is not wedged
(F
IG. 10).
e. Replace and tighten nuts to secure the arm
(torque 25 - 35 ft-lb/33.9 - 47.5 N•m).
FIG. 9
D
a
b
C
C
FIG. 10
Correct
Incorrect
