Gradient syncFURNACE mOD-200 - Model Number Identification; Components

syncFURNACE OD Instruction & Installation Manual – Rev 09 Pg. 11 of 81
MODEL NUMBER IDENTIFICATION:
mOD-200-N-14LEN1
Model Name
Burner Max Input Capacity
mOD = Integrated, Modulating Gas-Fired Instantaneous
Water Heater & Hydronic Fan Coil Unit
120 = 1 20,000 BTU/hr
Hydronic Configuration
2 = 1 supply & return, w_ re-circ & fc bypass
3 = 1 supply & return, w_o re-circ
1 = 1 supply & return, w_ re-circ
Fan-coil Nominal CFM
10L = 1,000 CFM, Low static
14L = 1,400 CFM, Low static
18L = 1,800 CFM, Low static
22L = 2,200 CFM, Low static
200 = 1 92,000 BTU/hr
06H = 60 0 CFM, High static
10H = 1,00 0 CFM, High static
15H = 1,50 0 CFM, High static
18H = 1,800 CFM, High static
Controller
N = No Duct Zoning
Z = Duct Zoning
Fan-coil Blower Motor
P = PSC, Forward Curve
R = Entry Variable-speed, Forward Curve
E = HE Variable speed, Forward Curve
D = Decstar Variable-speed, Forward Curve
B = Variable-speed, Backward Curve
Factory Setup - Burner Fuel
N = Natural-Gas
P = Propane
05L = 500 CFM, Low stat ic
03H = 300 CFM, High static

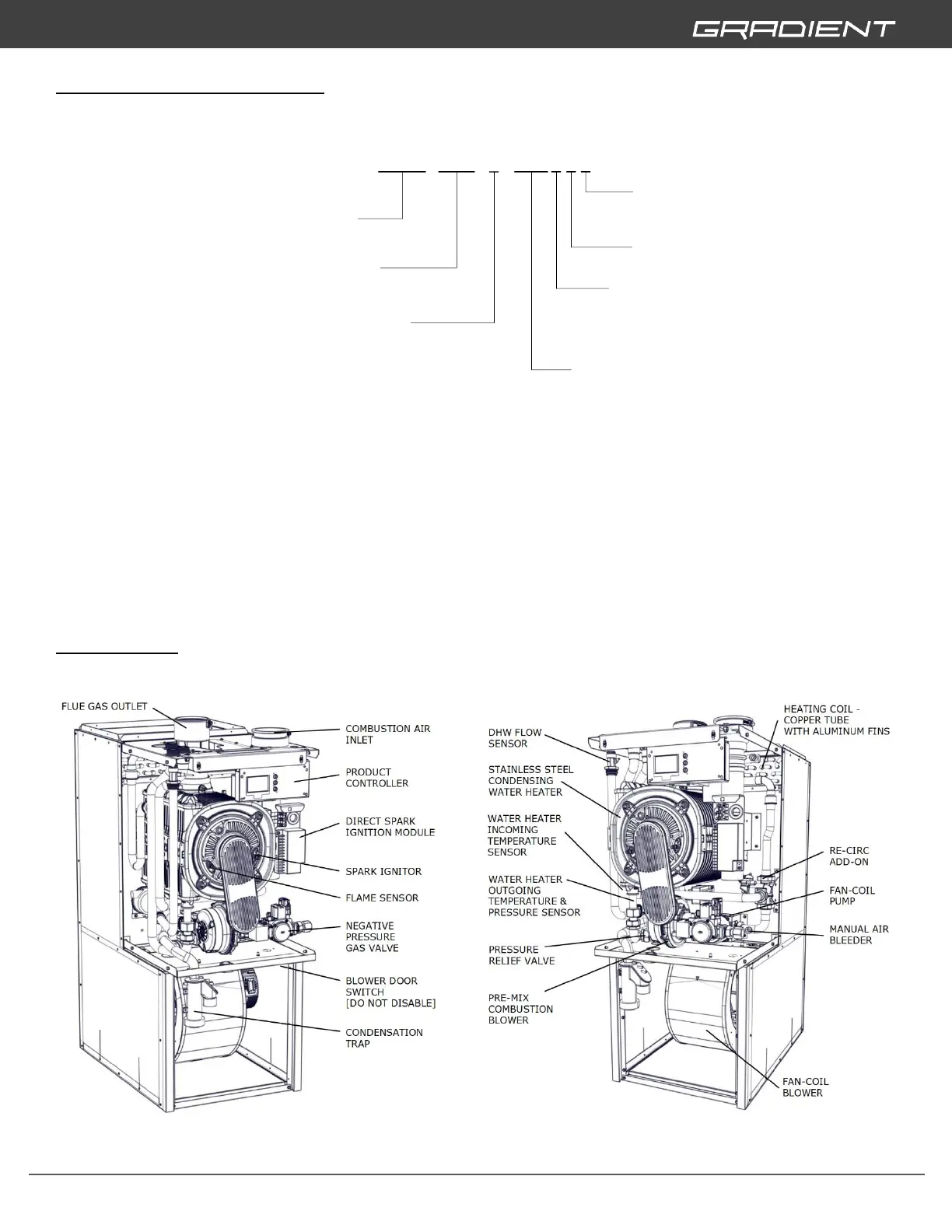

COMPONENTS:
