syncFURNACE OD Instruction & Installation Manual – Rev 09 Pg. 72 of 81
APPENDIX F: INTERNAL PUMP SPECIFICATIONS >
0
5
10
15
20
25
30
35
0 1.6 3.3 4.9 6.6 8.2 9.8 11.5 16.3
Head Loss (feet)
Flow Rate (GPM)

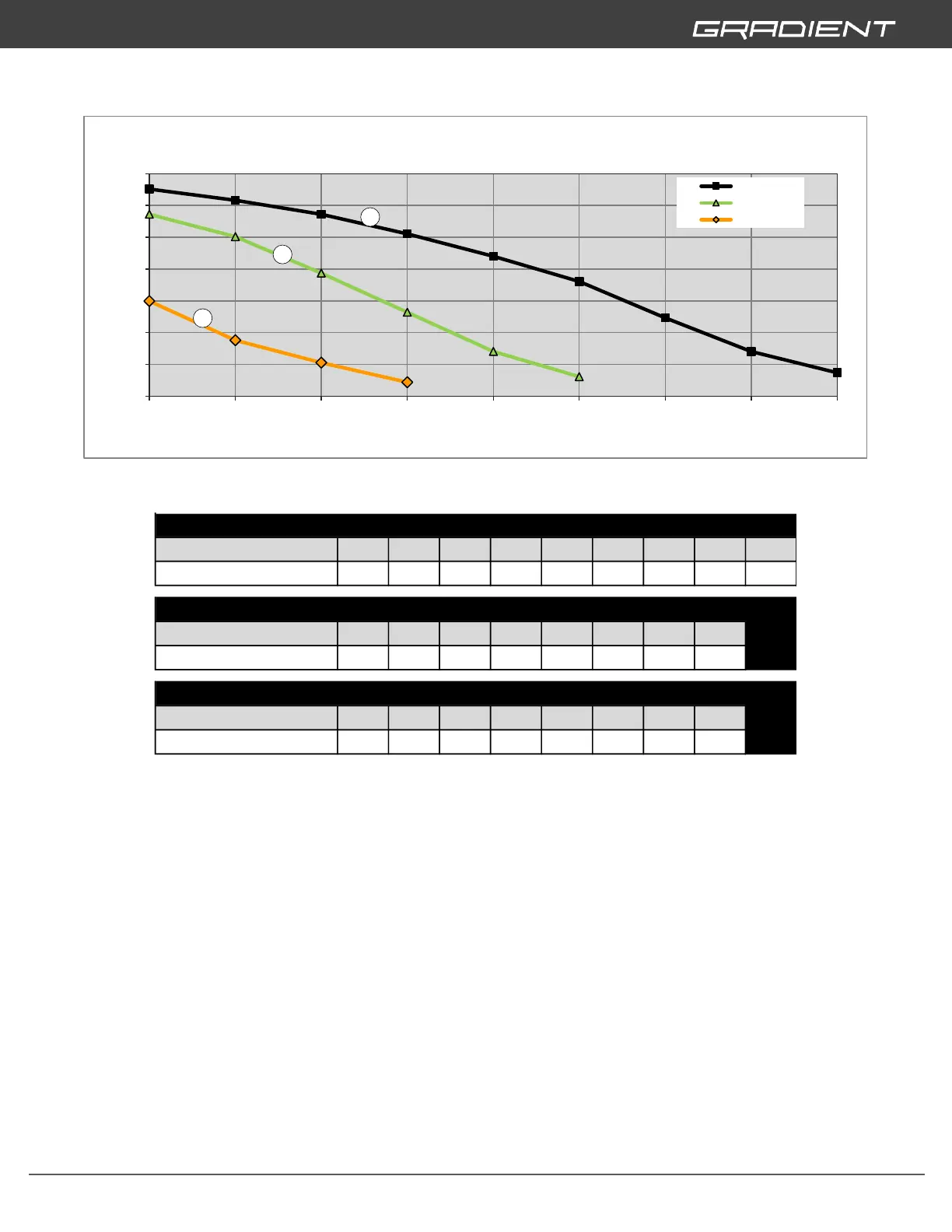

Pump Performance Curve - Grundfos UPS-15-78
Speed 3
Speed 2
Speed 1
Flow Rate (GPM) 0 1.6 3.3 4.9 6.6 8.2 9.8 11.5 16.3
Head Loss @ Flow (ft head) 32.6 30.8 28.6 25.5 22.0 18.1 12.3 7.0 3.7
Flow Rate (GPM) 0 1.6 3.3 4.9 6.6 8.2 9.8 11.5
Head Loss @ Flow (ft head) 28.6 25.1 19.4 13.2 7.0 3.1 0.0 0.0
Flow Rate (GPM) 0 1.6 3.3 4.9 6.6 8.2 9.8 11.5
Head Loss @ Flow (ft head) 15.0 8.8 5.3 2.2 0.0 0.0 0.0 0.0
Grundfos UPS 15-78 PUMP PERFORMANCE - Speed 3 Setting
Grundfos UPS 15-78 PUMP PERFORMANCE - Speed 2 Setting
Grundfos UPS 15-78 PUMP PERFORMANCE - Speed 1 Setting
2
3
1
