syncFURNACE OD Instruction & Installation Manual – Rev 09 Pg. 73 of 81
APPENDIX G: HEAT EXCHANGER SPECIFICATION >
0
10
20
30
40
50
60
70
80
90
2 3 4 5 6 7 8 9 10
Head Loss (feet)
Flow Rate (GPM)

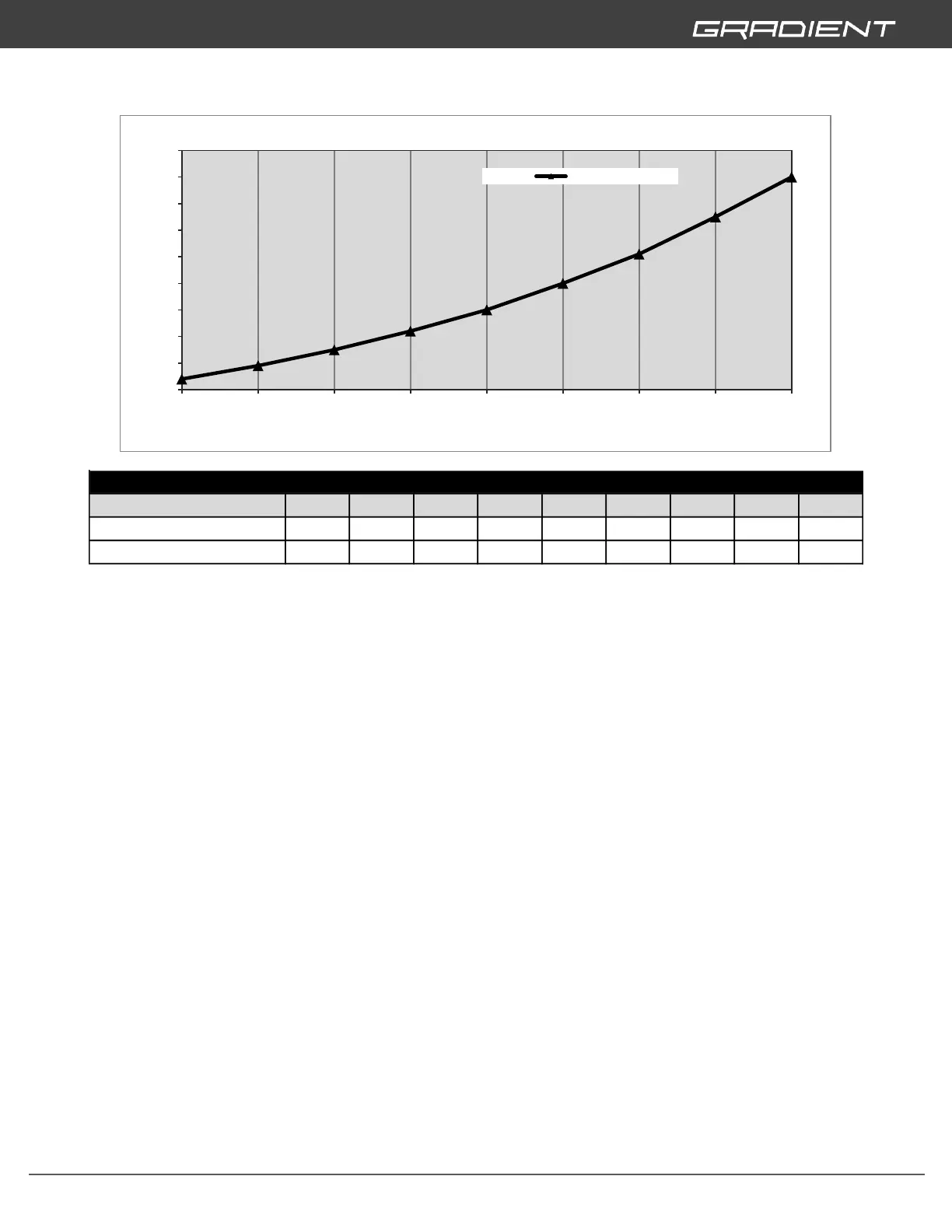

Water Heater Head Loss Curve
200 Model
Flow Rate (GPM) 2 3 4 5 6 7 8 9 10
Head Loss @ Flow (ft head) 4.0 9.0 15.0 22.0 30.0 40.0 51.0 65.0 80.0
Head Loss @ Flow (psi) 1.7 3.9 6.5 9.5 13.0 17.3 22.1 28.2 34.7
Water Heater Head Loss - 200 MODEL
