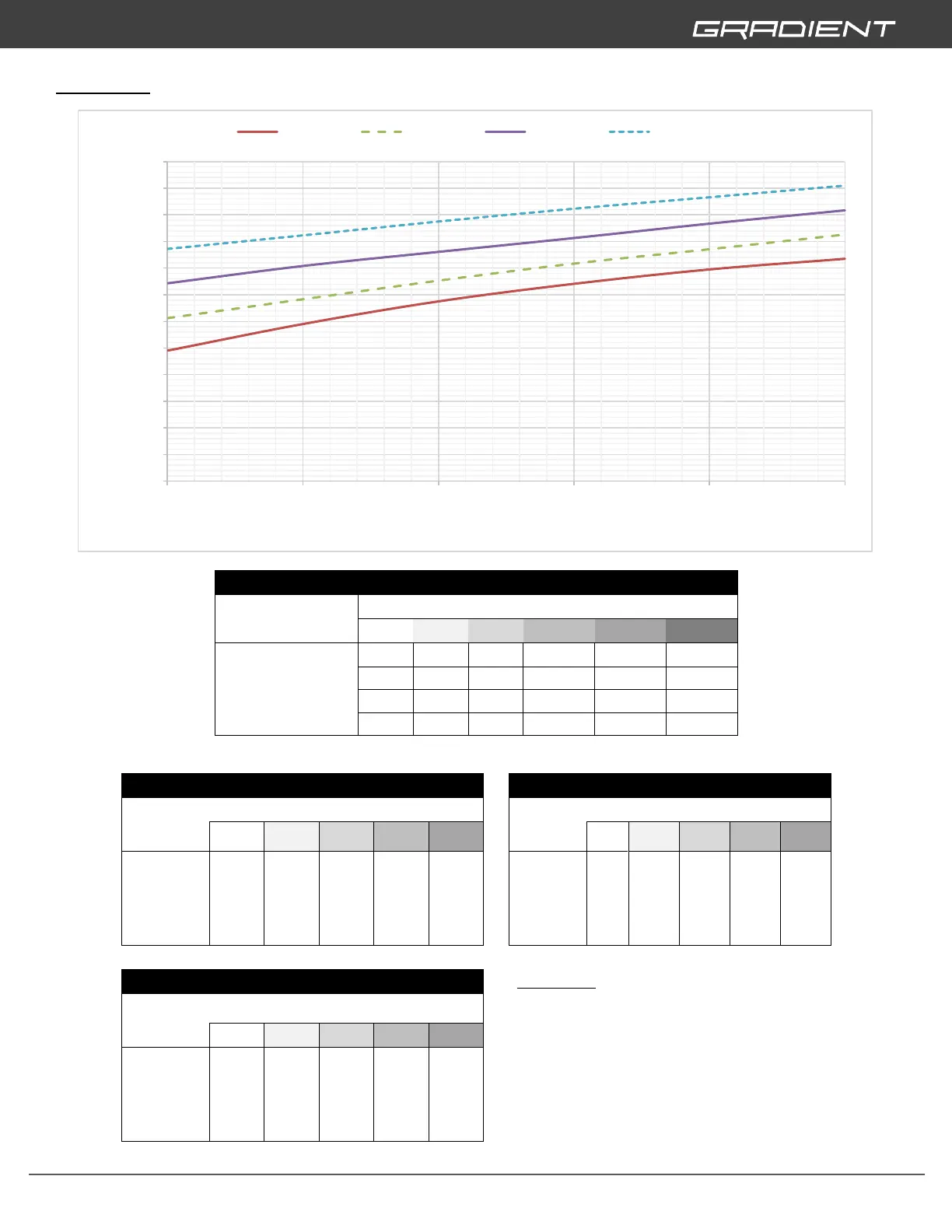

Gradient syncFURNACE mOD-200 - 10 L Model Fan-Coil Performance

syncFURNACE OD Instruction & Installation Manual – Rev 09 Pg. 75 of 81
10L MODEL:
RPM SETTING TABLE
Duct System ESP [inch w.c.]
0.1
0.2
0.3
0.4
0.5
0.6
400 CFM
490
590
675
741
795
835
600 CFM
612
683
753
817
871
926
800 CFM
743
808
861
913
967
1017
1000 CFM
872
923
975
1023
1066
1110
FC HEAT OUTPUT [BTU/hr]
FC SUPPLY AIR TEMP [°F]
Heating Coil Supply Water Temp
Heating Coil Supply Water Temp
90 °F
110 °F
130 °F
140 °F
150 °F
90
°F
110
°F
130
°F
140
°F
150
°F
400 CFM
8,755
15,833
22,950
26,519
30,093
400 CFM
85
102
118
126
134
600 CFM
11,595
21,006
30,493
35,255
40,026
600 CFM
83
97
112
119
127
800 CFM
13,838
25,106
36,483
42,198
47,927
800 CFM
81
94
107
114
120
1000 CFM
15,665
28,449
41,373
47,870
54,384
1000 CFM
79
91
103
109
115
FC RETURN WATER TEMP [°F]
Assumptions
Heating Coil Supply Water Temp
Coil Flow-rate = 3.5 GPM (7.86 ft head coil)
Pump spd 3
90 °F
110 °F
130 °F
140 °F
150 °F
Incoming Air Temp = 65 °F
400 CFM
85
101
117
125
133
600 CFM
84
98
113
120
127
800 CFM
82
96
109
116
123
1000 CFM
81
94
107
113
119
0
100
200
300
400
500
600
700
800
900
1000
1100
1200
0.1 0.2 0.3 0.4 0.5 0.6
BLOWER RPM SETTING
DUCT SYSTEM ESP
400 CFM 600 CFM 800 CFM 1000 CFM
